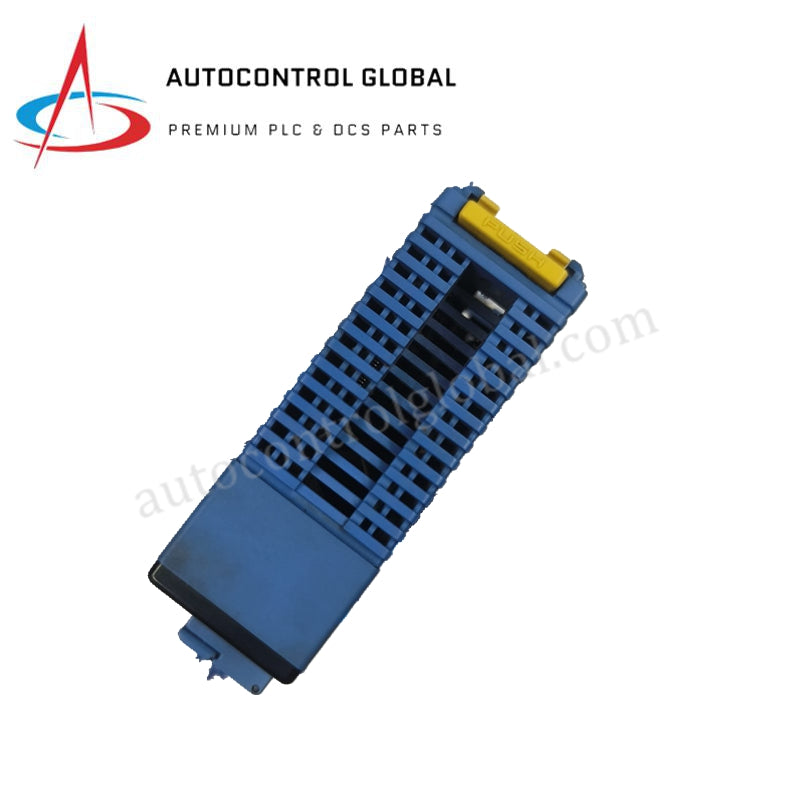

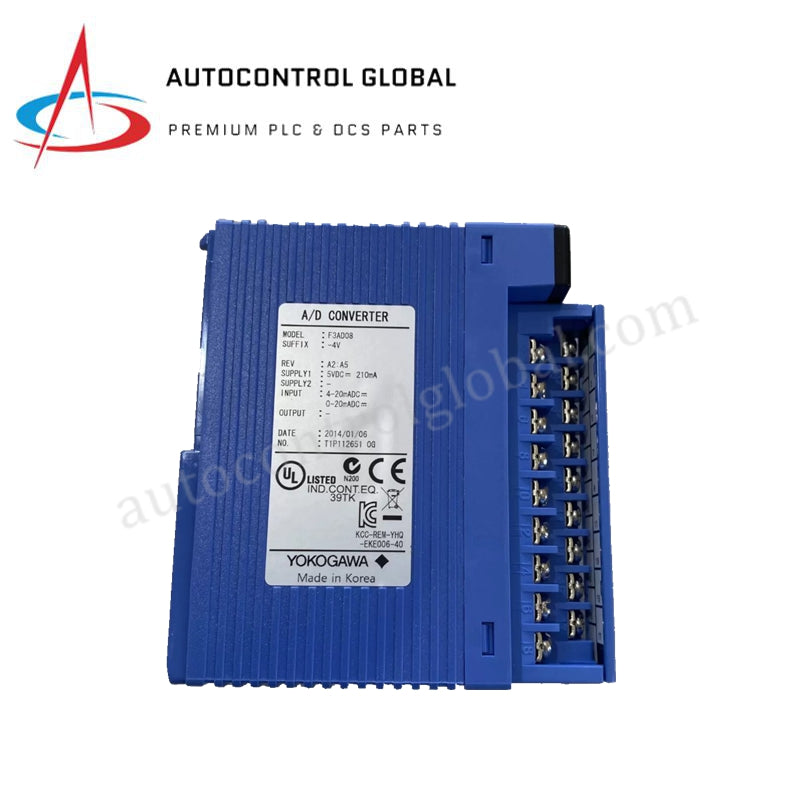

F3AD08-4V S1 Yokogawa FA-M3 | 8-Ch Voltage Input Module

Product Overview

The F3AD08-4V S1 (Model: F3AD08-4V S1) is a high-speed analog-to-digital (A/D) conversion module engineered for the Yokogawa FA-M3 Range-free Multi-controller series. This module is designed to interface high-density voltage signals from field sensors with the PLC's CPU, providing high-resolution data acquisition for fast-cycle industrial processes. The F3AD08-4V S1 (Suffix: -4V S1) supports 8 voltage input channels and features 16-bit binary resolution, ensuring that complex analog waveforms are translated into precise digital data with minimal noise.

The "S1" hardware revision represents an optimized component selection for enhanced long-term reliability in high-availability manufacturing environments. By utilizing a conversion speed of 100 µs per channel, the F3AD08-4V S1 (Model: F3AD08-4V S1) enables real-time monitoring of rapid process variables, such as displacement, pressure transients, and high-frequency vibrations in automated machinery.

Detailed Technical Specifications

The F3AD08-4V S1 provides industry-leading accuracy and sampling rates for the FA-M3 platform.

• Manufacturer: Yokogawa

• Model Code: F3AD08-4V S1

• System Compatibility: FA-M3 Range-free Multi-controller

• Number of Channels: 8 channels (Non-isolated, common ground)

• Input Signal Range: User-selectable: -10 to +10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V DC

• A/D Resolution: 16-bit binary (1/60,000 equivalent)

• Conversion Speed: 100 µs per channel (800 µs for all 8 channels)

• Total Accuracy: ±0.1% of full scale (at ambient temperature)

• Input Impedance: ≥ 1 MΩ

• Dielectric Strength: 500 V AC between input terminals and internal logic

• Power Consumption: 150 mA at 5 V DC (Supplied via backplane)

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: -20 °C to +75 °C

• Dimensions: 120 mm $\times$ 25 mm $\times$ 90 mm

• Weight: 0.16 kg

• Country of Origin: Japan
