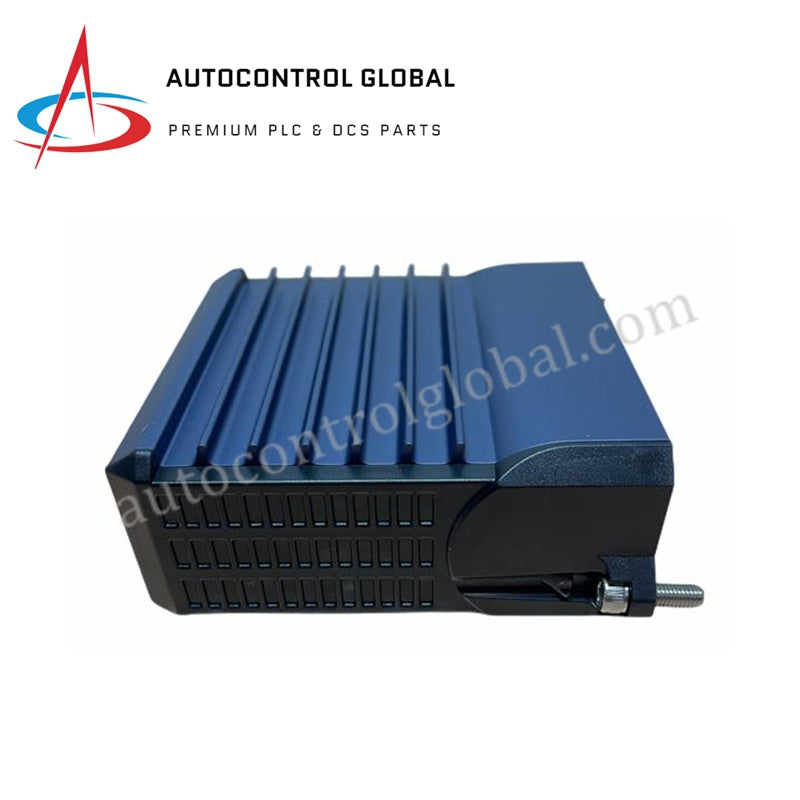

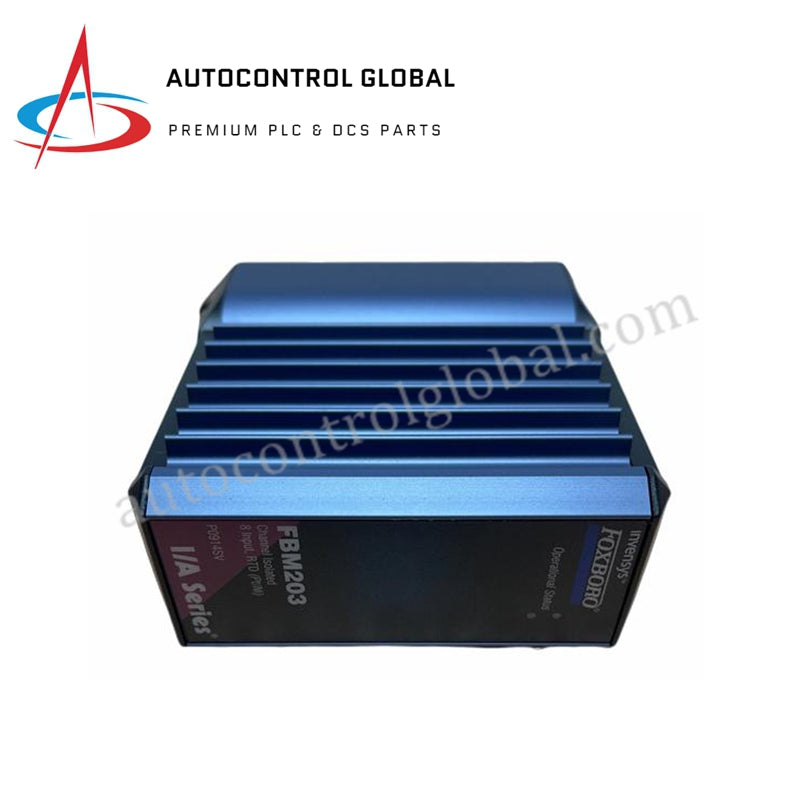

FBM203 Foxboro RTD Input Module

  • Manufacturer: Foxboro

  • Part Number: FBM203

  • Condition：New with Original Package

  • Product Type: RTD Input Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

FBM203 is an RTD input module from Foxboro, featuring eight isolated and independent input channels with high accuracy and signal processing capabilities.

Electrical Specifications

  • Input Channels: 8 RTD input channels, each isolated and independent

  • Input Range: 0 to 320 ohms (320 ohms = 64000 counts, minimum overrange: 327.675 ohms at 65535 counts)

  • Sensor Current: 0.19 mA DC nominal

  • Temperature Coefficient Accuracy: ±50 ppm/ºC

  • A/D Conversion: Independent sigma-delta conversion per channel

  • Integration Period: Software configurable

  • Common Mode Rejection: >125 dB at 50 or 60 Hz

  • Normal Mode Rejection: >95 dB at 50 or 60 Hz

Power & Thermal Ratings

  • Input Voltage (Redundant): 24 V DC (+5%, -10%)

  • Power Consumption: 3 W (maximum)

  • Heat Dissipation: 3 W (maximum)
