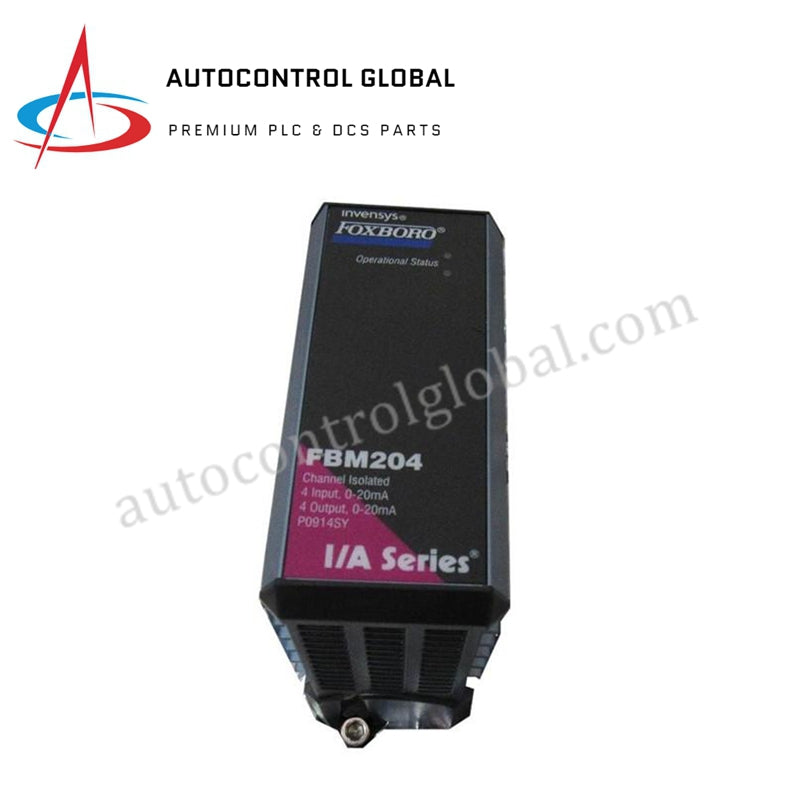

FBM204 P0914SY | Foxboro I/O Interface Module
Manufacturer: Foxboro
-
Part Number: FBM204 P0914SY
Condition：New with Original Package
Product Type: I/O Interface Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
FBM204 P0914SY is a Foxboro I/O interface module with four isolated analog input channels and four independent analog output channels, ensuring precise signal conversion and high accuracy.
Input & Output Specifications
-
Channels: 4 analog input, 4 analog output (20 mA DC each)
-
Range (Each Channel): 0 to 20.4 mA DC
-
Accuracy (Including Linearity): ±0.03% of span
-
Temperature Coefficient Accuracy: ±50 ppm/ºC
-
A/D Conversion: Independent sigma-delta converter per input channel
-
Input Impedance: 61.5 Ω nominal
-
Integration Period: Software configurable
Signal Processing
-
Common Mode Rejection: >100 dB at 50 or 60 Hz
-
Normal Mode Rejection: >95 dB at 50 or 60 Hz
Wiring & Distance
-
Maximum Field Device Distance: Depends on compliance voltage (20.2 V DC at 20.4 mA input), wire gauge, and voltage drop at the field device.
