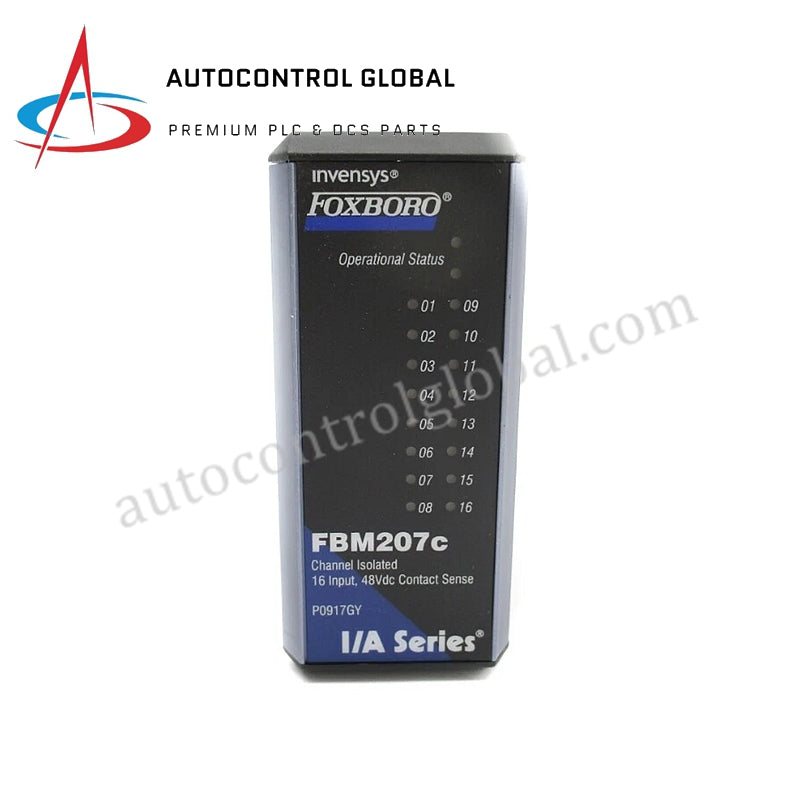

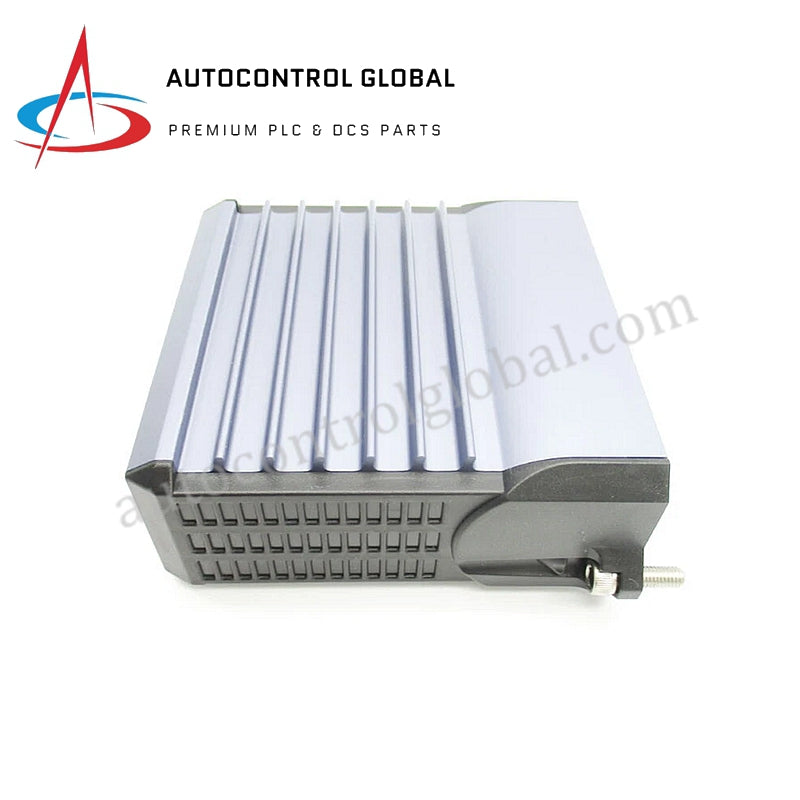

FBM207C P0917GY Foxboro Isolated 48vdc Contact Sense Module

Description

The Foxboro FBM207C P0917GY is an isolated 16-channel input module designed for 48 V DC contact sense applications.

Dimensions

• Height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs

• Width: 45 mm (1.75 in)

• Depth: 104 mm (4.11 in)

Input Channels

• Channels: 16 isolated and independent

Pulse Count Accuracy

• No missing pulses for pulse rates from 0 to 250 Hz

Filter/Debounce Time

• Configurable: No Filtering, 4, 8, 16, or 32 ms

Voltage Monitor Function

• Logic One (On-State Voltage): 15 to 60 V DC

• Logic Zero (Off-State Voltage): 0 to 5 V DC

• Current: 1.4 mA (typical) at 5 to 60 V DC

• Logic One Source Resistance Limit: 1 kΩ max at 15 V DC

• Logic Zero Source Resistance Limit: 100 kΩ min at 60 V DC

Contact Sensor Function

• Range: Contact open (off) or closed (on)

• Open-Circuit Voltage: 48 V DC ±15% (FBM207C)

• Short-Circuit Current: 3.2 mA (typical)

• Logic One On-State Resistance: 1 kΩ max

• Logic Zero Off-State Resistance: 100 kΩ min
