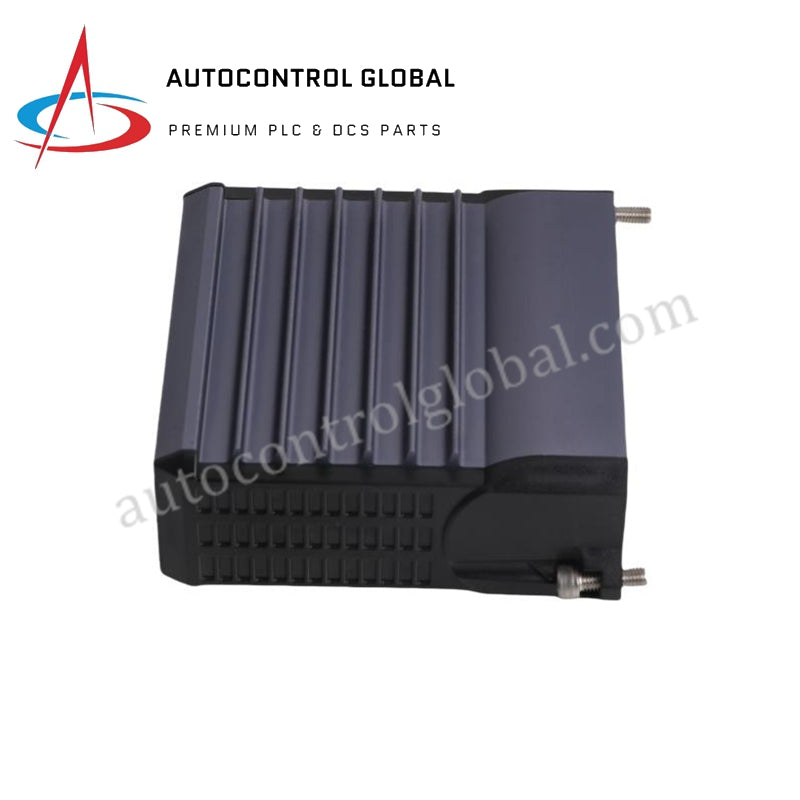

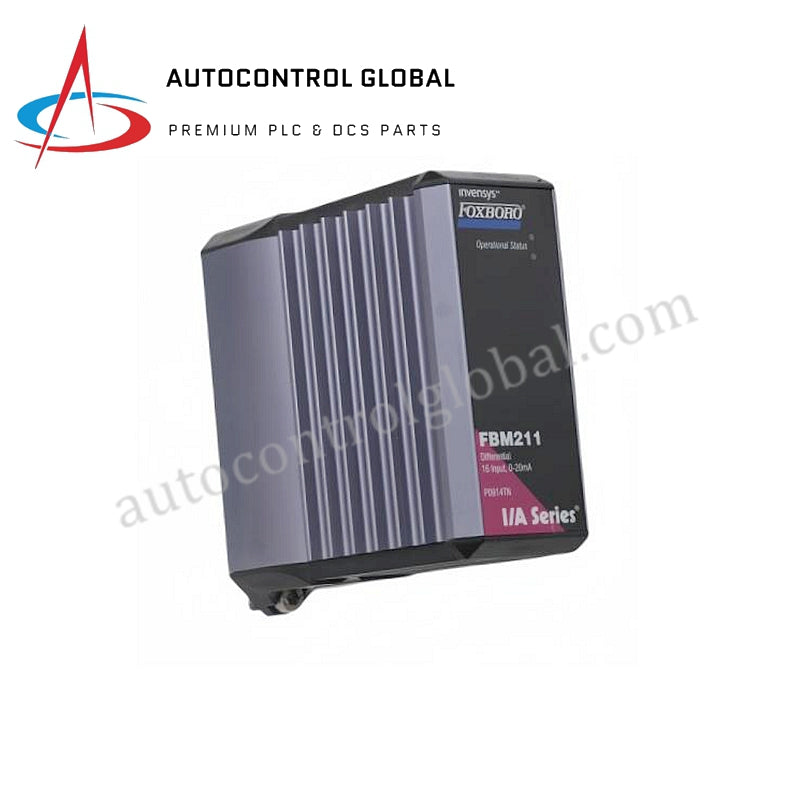

FBM211 Foxboro 0 to 20 mA Input Module
Manufacturer: Foxboro
-
Part Number: FBM211
Condition：New with Original Package
Product Type: Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The Foxboro FBM211 0 to 20 mA Input Module provides 16 groups of isolated and independent analog input channels designed for high-accuracy current measurement and signal conversion.
Specifications
-
Input: 16 group isolated and independent channels
-
Input Range (each channel): 0 to 20.4 mA DC (current limited to 33 mA per channel)
-
Accuracy (includes linearity): ±0.03% of span
-
Accuracy Temperature Coefficient: ±50 ppm/°C
-
Input Signal A/D Conversion: Each channel uses multiplexed Sigma-Delta converter
-
Integration Period: Software configurable
-
Common Mode Rejection: >100 dB at 50 or 60 Hz
-
Normal Mode Rejection: >35 dB at 50 or 60 Hz
-
Input Channel Impedance: 61.9 Ω nominal
-
Operating Temperature: -20 to +70°C (-4 to +158°F)
-
Storage Temperature:
• Termination Assembly PVC(1): -20 to +50°C (-4 to +122°F)
• Termination Assembly PA: -20 to +70°C (-4 to +158°F)
• Module: -40 to +70°C (-40 to +158°F) -
Relative Humidity: 5 to 95% (non-condensing)
