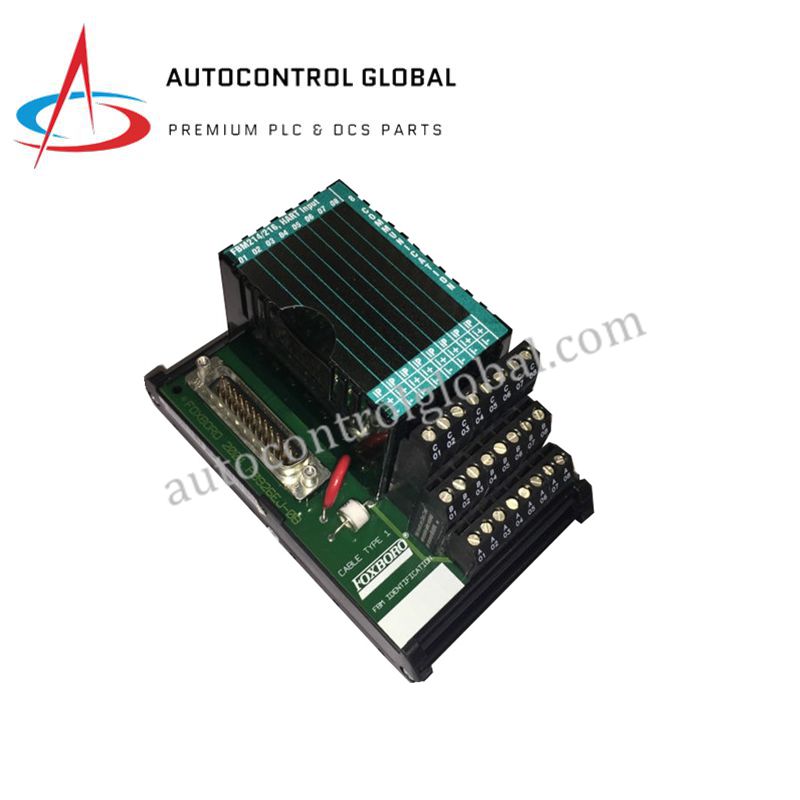

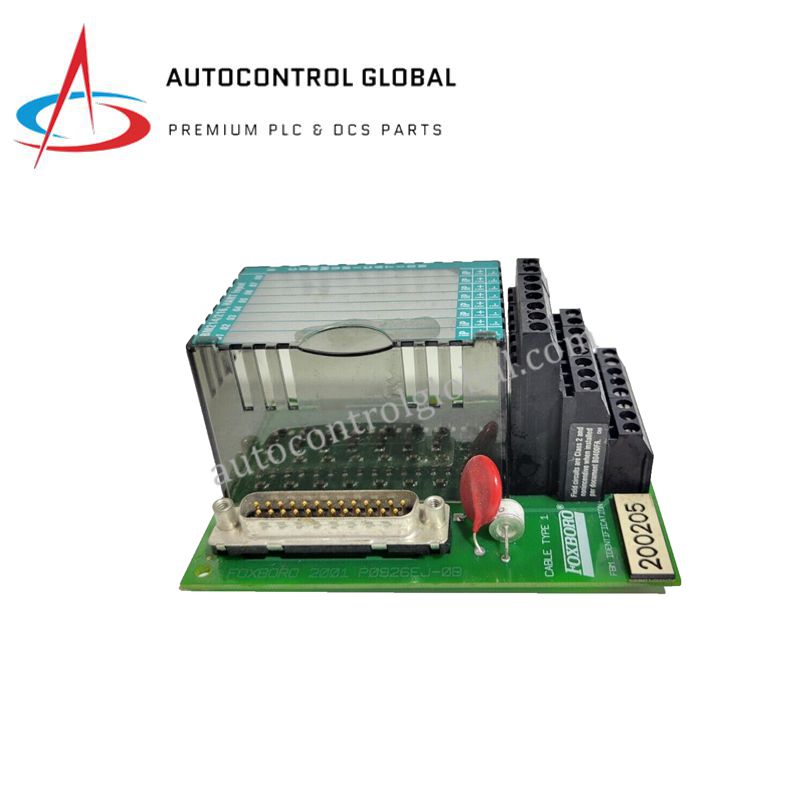

FBM214 P0916BX | Foxboro HART Input Interface Module for I/A Series

Product Description

The Foxboro FBM214 P0916BX is a HART communication input interface module designed for the I/A Series Distributed Control System (DCS). It provides eight dual-function channels, each capable of accepting standard 4–20 mA analog signals while concurrently handling digital HART FSK communications.

This module enables simultaneous analog measurement and HART device communications, allowing field devices to be fully integrated into the I/A Series database without additional hardware. Moreover, each channel features a dedicated FSK modem for reliable bi-directional HART communication, supporting HART universal commands.

Built for industrial environments, the FBM214 incorporates galvanic isolation for all eight channels, per-channel A/D conversion, and built-in diagnostics, ensuring accurate measurements, robust noise immunity, and dependable operation in harsh process conditions.

Technical Specifications

• Product type: HART communication input interface module

• Series: Foxboro I/A Series

• Model: FBM214 (P0916BX)

• Number of channels: 8 analog input channels with HART capability

• Supported input: 4–20 mA analog; HART FSK digital superimposed on 4–20 mA

• Per-channel HART modem: Dedicated FSK modem for bi-directional communication

• HART support: HART universal commands for database integration

• Isolation: Galvanic isolation for group of 8 inputs

• Signal processing: Per-channel A/D conversion for 4–20 mA measurements

• Diagnostics: Module/channel status and HART communication monitoring

• Form factor: I/A Series FBM module, compatible with standard termination assemblies

• Weight: 1.36 kg

• Operating environment: Industrial-grade for harsh process conditions

FAQ

Q1: Can the FBM214 handle analog and HART signals simultaneously?
A1: Yes, each of the eight channels supports 4–20 mA analog input and concurrent HART digital communication.

Q2: Does each channel have a dedicated HART modem?
A2: Yes, every channel includes a separate FSK modem for reliable bi-directional communication.

Q3: Is the module suitable for harsh industrial environments?
A3: Absolutely. It includes galvanic isolation, robust housing, and diagnostics for reliable operation.

Q4: Can this module integrate with the I/A Series database?
A4: Yes, it fully supports HART universal commands for seamless database integration.

Q5: What type of field devices can be connected?
A5: Pressure, flow, level, temperature, and other HART-enabled process transmitters.
