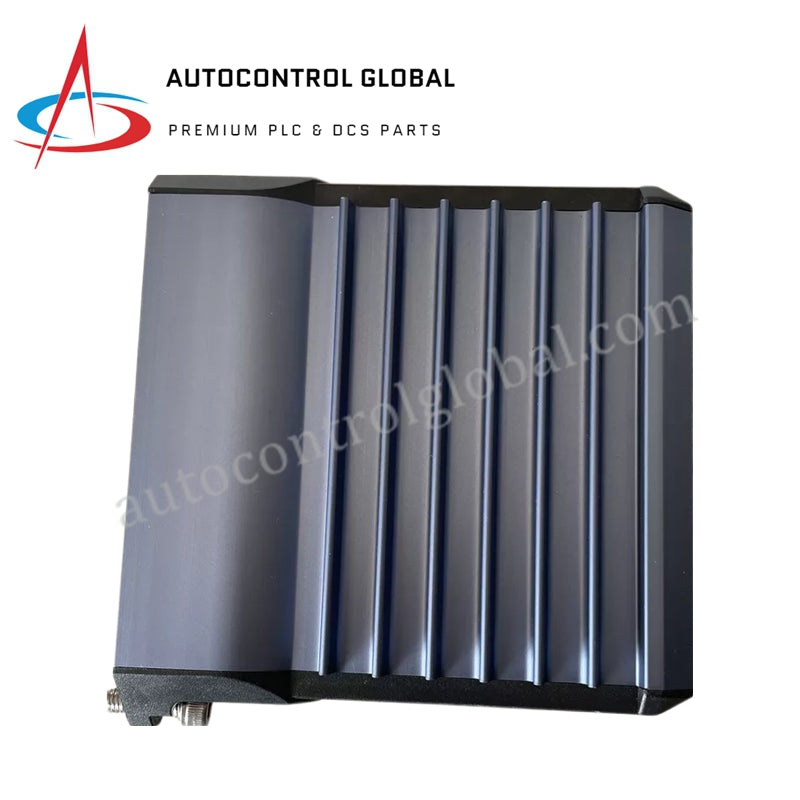

FBM219 P0916RH Foxboro Discrete I/O Interface Module
Manufacturer: Foxboro
-
Part Number: FBM219 P0916RH
Condition：New with Original Package
Product Type: Discrete I/O Interface Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
FBM219 P0916RH is a Discrete I/O Interface Module from Foxboro, designed for industrial control systems. It features isolated input and output channels for precise control and monitoring.
Input/Output Channels
-
Input Channels: 24 isolated
-
Output Channels: 8 isolated
-
Group Isolation: Input and output groups are isolated
Filter/Debounce Time
-
Configurable: No filtering, 4, 8, 16, or 32 ms
Voltage Monitor Function
-
On-State Voltage: 15 to 30 V dc
-
Off-State Voltage: 0 to 5 V dc
-
Input Current: 2.2 mA (typical) at 30 V dc
Source Resistance Limits
-
On-State: 1 kΩ (maximum) at 15 V dc
-
Off-State: 100 kΩ (minimum) at 30 V dc
Output Specifications
-
Applied Voltage (External Source): 60 V dc (maximum)
-
Load Current: 0.25 A (maximum)
-
Off-State Leakage Current: 0.25 mA (maximum)
