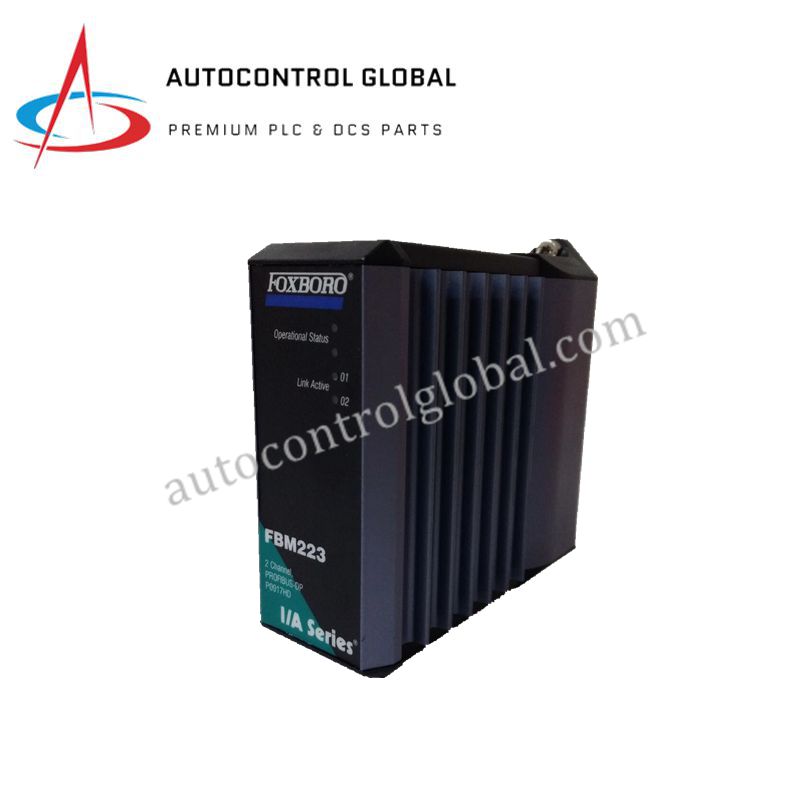

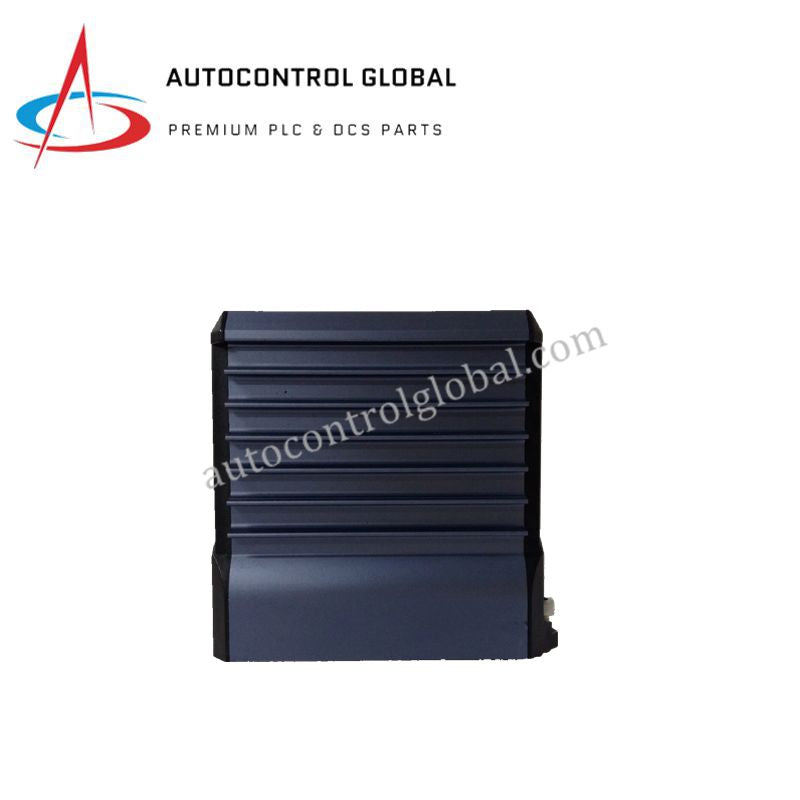

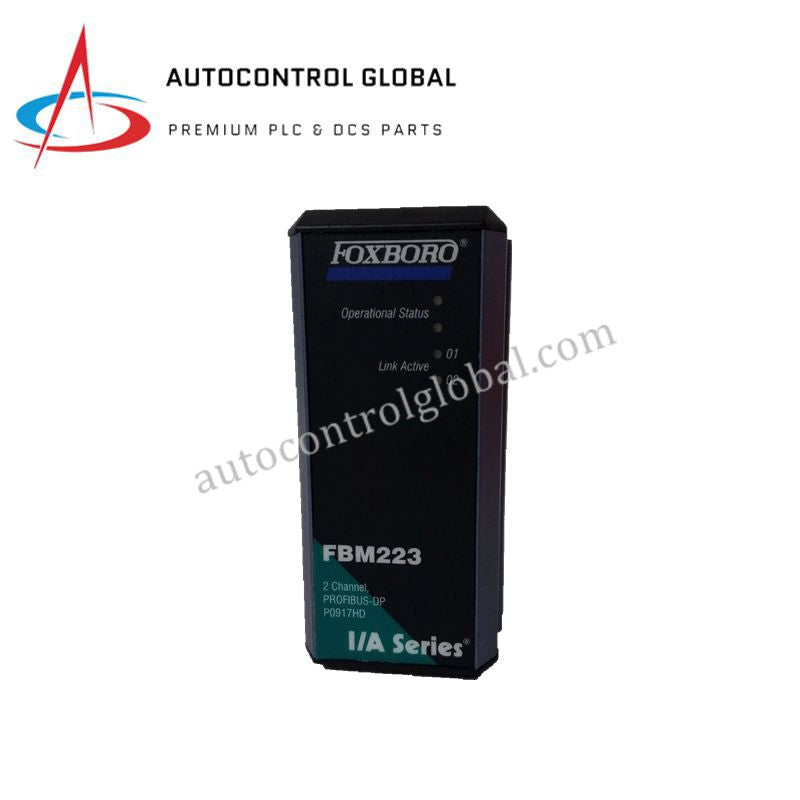

FBM223 P0917HD | Foxboro Fieldbus Interface Module

Manufacturer: Foxboro
Part Number: FBM223 P0917HD
Condition：New with Original Package
Product Type: Fieldbus Interface Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Product Overview

The Foxboro FBM223 P0917HD is a high-performance PROFIBUS-DP communication interface module for Foxboro I/A Series DCS. It integrates third-party field devices, including motor drives, intelligent sensors, and remote I/O. The module supports redundant configurations, advanced diagnostics, and high-speed data exchange. It ensures reliable communication for mission-critical systems in power generation, chemical processing, substation automation, and smart grid applications.

Technical Specifications

Feature	Description
Model Number	FBM223 P0917HD
Function	PROFIBUS-DP communication interface
Fieldbus Standard	PROFIBUS-DP (EN 50170 compliant)
Communication Channels	2 isolated PROFIBUS-DP buses
Data Transfer Rate	9.6 kbit/s to 12 Mbit/s
Device Capacity	Supports up to 126 PROFIBUS-DP slave devices
Redundancy	Dual-port design for fault-tolerant communication
Diagnostics	Real-time monitoring: baud rate, data integrity, temperature, voltage
LED Indicators	Status and activity for each channel
Power Supply	Redundant independent DC power inputs
Operating Temperature	–40°C to +70°C
Protection Class	IP20; suitable for Class 1 Division 2 / Zone 2
Mounting Options	DIN rail or rack-mounted baseplate (up to 8 modules per baseplate)
Hot-Swap Capability	Yes – modules replaceable without interrupting field wiring or power
Dimensions	150 mm × 100 mm × 50 mm
