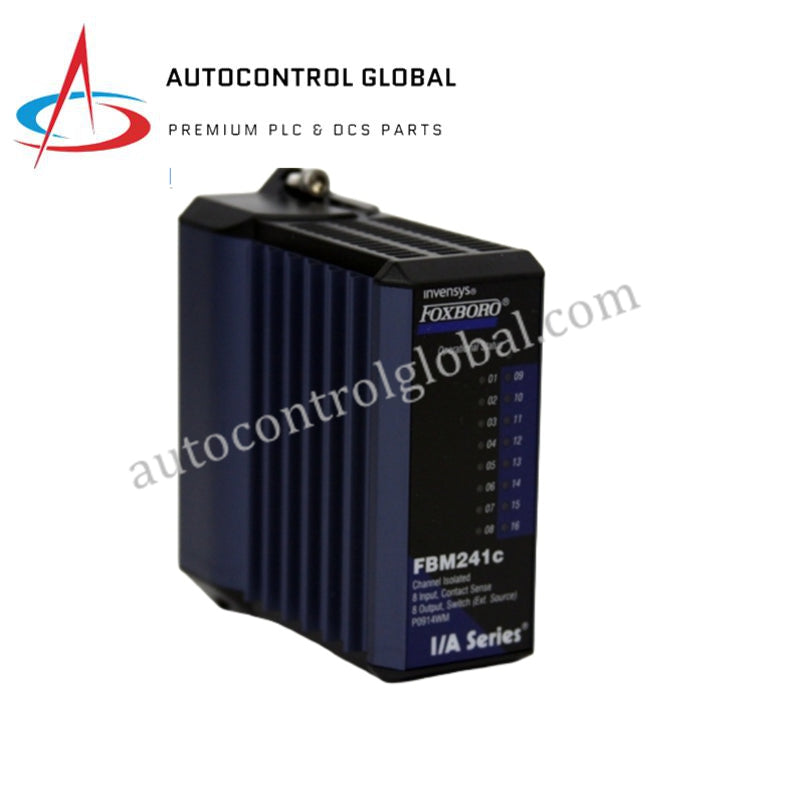

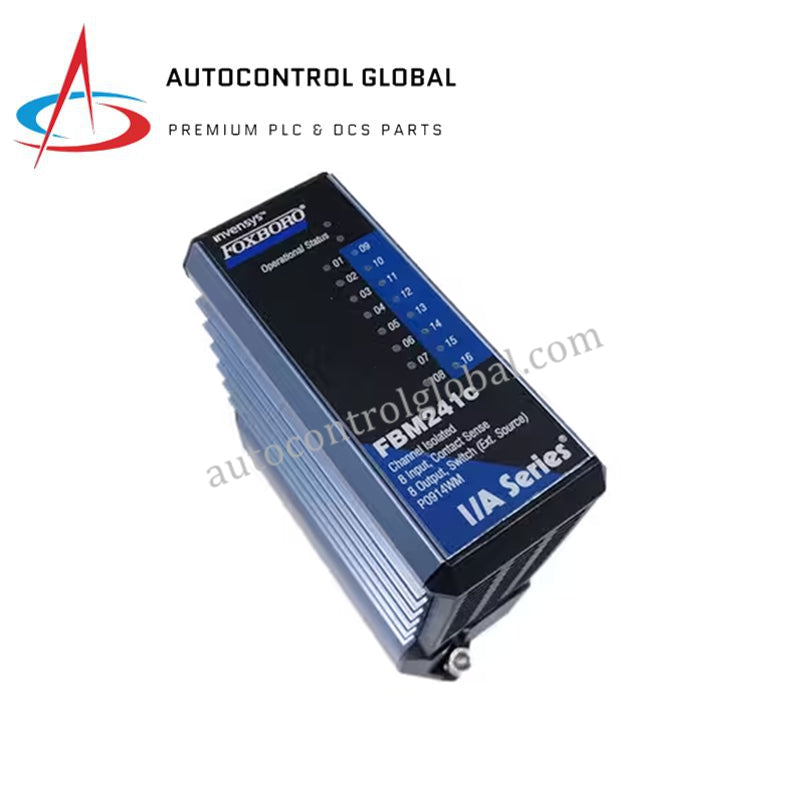

FBM241C / P0914WM | Compact I/A Series Discrete I/O Module
Manufacturer: Foxboro
-
Part Number: FBM241C
Condition：New with Original Package
Product Type: Compact I/A Series Discrete I/O Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Overview
The Foxboro FBM241C (also known as P0914WM) is a compact, channel-isolated discrete I/O module designed for the Foxboro I/A Series Distributed Control System (DCS) Compact 200 Series subsystem. This module integrates both 8 discrete inputs and 8 discrete outputs in a single, space-saving unit, making it ideal for monitoring and controlling field devices such as switches, push buttons, sensors, relays, solenoids, and indicators.
Engineered for high reliability, galvanic isolation, and built-in diagnostics, the FBM241C / P0914WM ensures safe and continuous operation even in harsh industrial environments, including oil & gas, petrochemical, power generation, and manufacturing.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | FBM241C / P0914WM |
| Manufacturer | Foxboro (Schneider Electric brand) |
| Product Type | Compact Discrete I/O Module |
| System | Foxboro I/A Series DCS (Compact 200 Series I/O subsystem) |
| Number of Channels | 8 discrete inputs + 8 discrete outputs |
| Input Signal Range | <60 V DC, 120 V AC / 125 V DC, 240 V AC |
| Output Signal Range | 5 V DC (digital output), supports external or internal power |
| Output Current | Up to 10 A (shared across channels) |
| Isolation | Channel-to-channel and channel-to-system galvanic isolation |
| Diagnostics | Built-in fault detection, fuse protection, relay monitoring |
| Power Supply | 12–48 V DC (some variants support 220 V AC) |
| Efficiency | ≥90% energy-efficient design |
| Operating Temperature | –20 °C to +50 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | 170 × 105 × 32 mm |
| Weight | 120 g (varies with assembly) |
| Mounting | DIN rail or rack installation |
| Certifications | CE, UL, CSA, IEC compliance |
| Lifecycle | Active product, supported in Foxboro I/A Series DCS |
