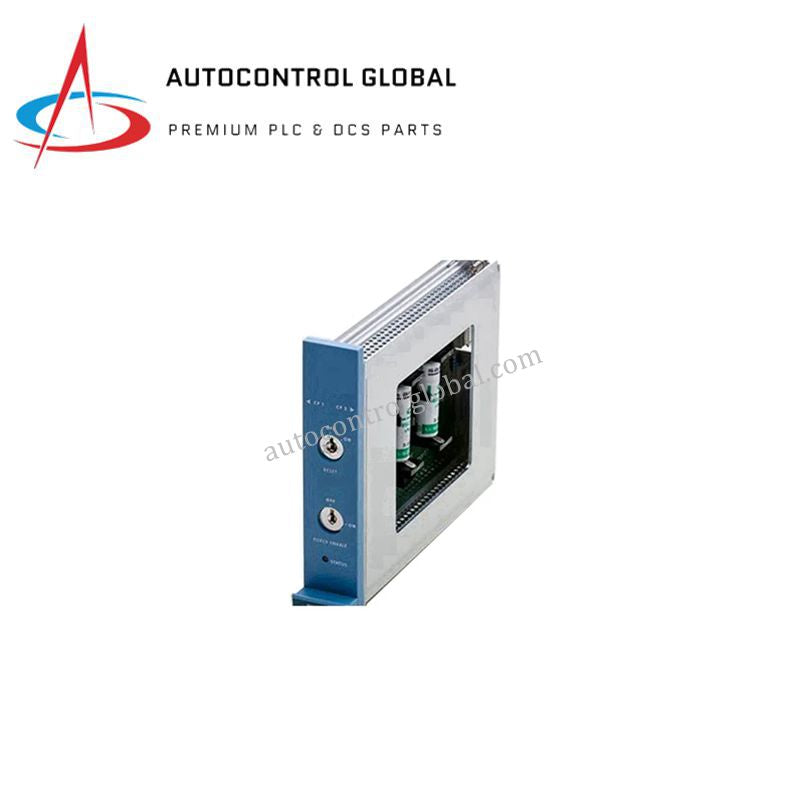

FC-BKM-0001 | Honeywell Battery & Key Switch Module for Control Systems
Manufacturer: Honeywell
-
Part Number: BKM-0001
Condition：New with Original Package
Product Type: Key Switch Module for Control Systems
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL FC-BKM-0001 (also referenced as BKM-0001 or CCV1.1) is a specialized Battery and Key Switch Module engineered for Honeywell’s industrial automation and safety systems. It supports uninterrupted operation during power loss with dual high-quality lithium batteries and ensures secure system access using Force Enable and Reset key switches. Designed for critical control processors, the FC-BKM-0001 provides flexible AC/DC compatibility, compact construction, and robust compliance with CE, TUV, UL, CSA, and FM certifications.
Its rugged housing withstands harsh industrial environments with IP67-rated protection, ensuring dependable performance in temperatures from −20 °C to +70 °C. Compact dimensions and versatile mounting options make it an ideal solution for process automation, safety interlocks, and power redundancy in demanding facilities.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | FC-BKM-0001 / BKM-0001 / CCV1.1 |
| Type | Battery and Key Switch Module |
| Battery Backup | Two lithium batteries (one per control processor) |
| Key Switches | Force Enable switch for manual override; Reset switch for alarms and state reset |
| Switching Capacity | Rated 15 A to manage high-current industrial loads |
| Power Supply (24 V Input) | 24 V DC −15% to +30% |
| Current Consumption | Max. 20 mA per 24 V DC input; typical 7 mA (shared load) |
| Power Supply (5 V Input) | 5 V DC ±10% |
| 5 V Supply Current | Max. 10 mA |
| Output Supply Voltage | 14 – 31 V DC |
| Output Resistance | 2 × 1.1 kΩ (parallel) |
| Short-Circuit Protection | Continuous |
| Operating Temperature | −20 °C to +70 °C (extended industrial grade) |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 10 – 95% RH, non-condensing |
| Protection Rating | IP67-rated dust-tight and water-resistant enclosure |
| Dimensions (H × W × D) | 176 × 35.2 × 212 mm (primary housing); alternative form: 120 × 100 × 50 mm in some models |
| Weight | 0.3 – 0.5 kg |
| Shipping Weight | 2 kg |
| Mounting Options | DIN rail or panel/chassis installation |
| Compliance & Certifications | CE, TUV, UL, CSA, FM |
| Country of Origin | USA |
FAQ
Q1: What makes the FC-BKM-0001 different from standard power modules?
A1: The FC-BKM-0001 integrates dual lithium batteries with Force Enable and Reset key switches to ensure seamless power continuity and secure manual control for critical processors.
Q2: Can the module handle extreme industrial conditions?
A2: Yes, with an IP67 rating and wide −20 °C to +70 °C operating range, it reliably performs in challenging environments like outdoor plants and dusty workshops.
Q3: How is the module installed within the control system?
A3: The FC-BKM-0001 supports DIN rail and panel-mount installation, fitting easily into Honeywell PLC enclosures or control cabinets.
Q4: Does this module protect against short circuits?
A4: Absolutely, the FC-BKM-0001 includes continuous short-circuit protection, safeguarding both the unit and connected devices.
Q5: How quickly can it be delivered after order placement?
A5: We typically dispatch within 3 days to 2 weeks, depending on order volume and stock availability.
