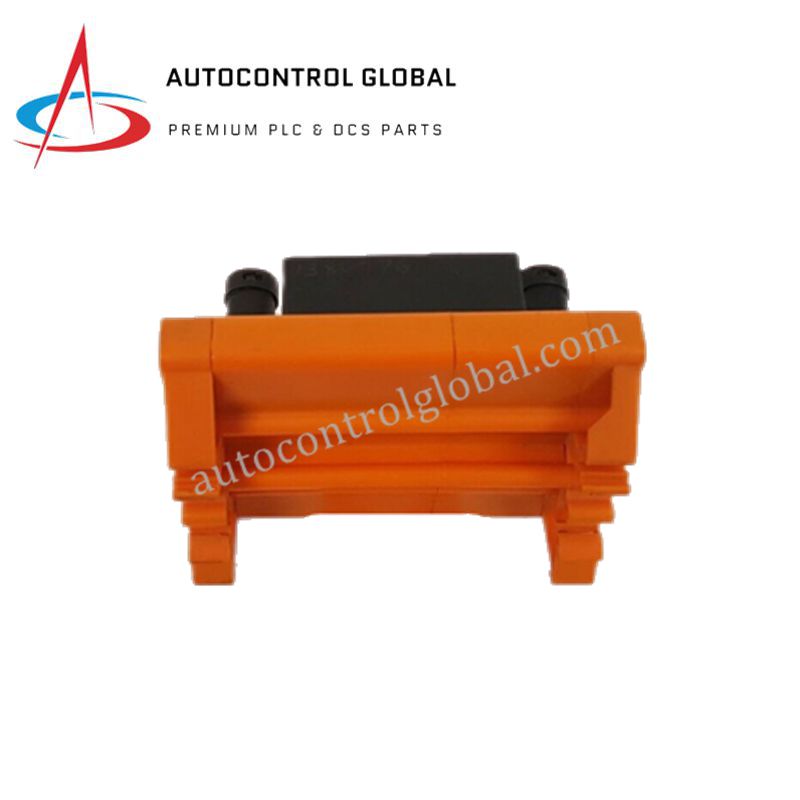

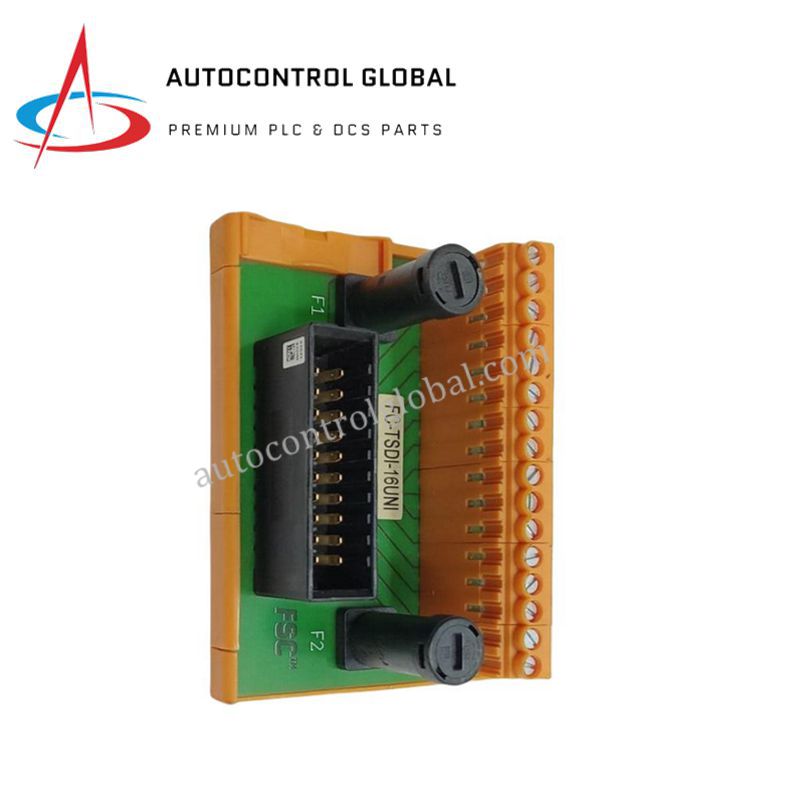

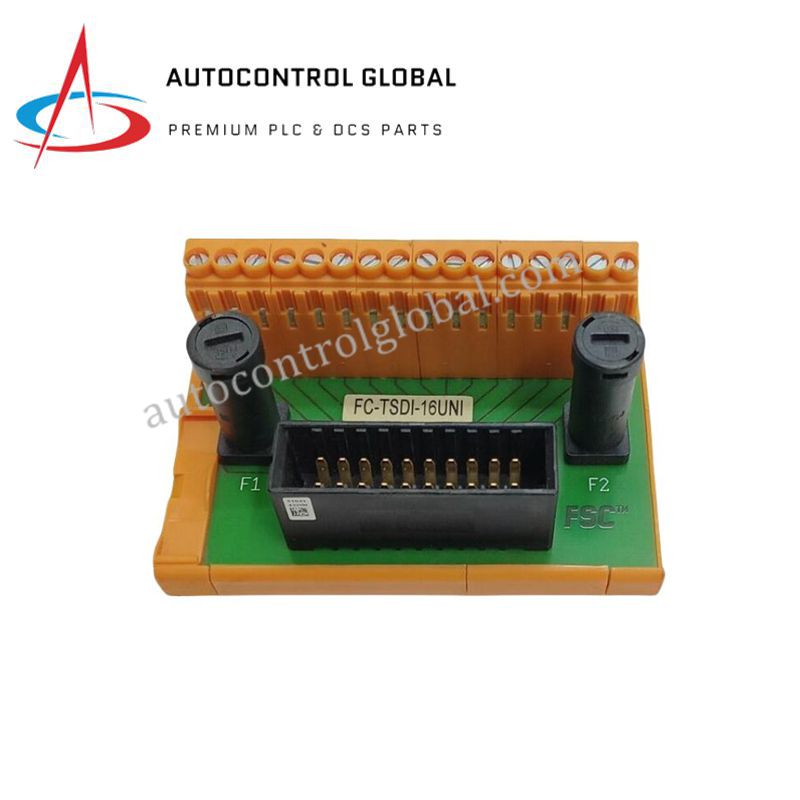

FC-TSDI-16UNI Honeywell | Safety Manager System Module

Product Description – Honeywell FC-BSDI-16UNI / FC-TSDI-16UNI Module

The Honeywell FC-BSDI-16UNI is a universal digital input module designed for the Experion PKS Series C I/O systems. It provides reliable acquisition of field signals from multiple sources, ensuring seamless integration into safety and process automation environments. This module is particularly effective in industrial settings where signal integrity, isolation, and high availability are critical.

Moreover, the FC-BSDI-16UNI features 16 isolated digital input channels, supporting both dry contact and sourced or sinked DC voltage inputs. In addition, its robust design with built-in diagnostics ensures quick detection of wiring or signal faults, enhancing system reliability and uptime.

Its compact form factor allows easy integration into Series C chassis, making it suitable for petrochemical plants, power generation, refining, and other industrial automation applications.

Technical Specifications

General Information

• Brand: Honeywell

• Model Number: FC-BSDI-16UNI / FC-TSDI-16UNI

• Part Number: FC-BSDI-16UNI

• Type: Universal Digital Input Module

• System Compatibility: Honeywell Experion PKS / Series C I/O

• Country of Origin: USA

• Shipping Weight: 3 kg

Electrical & Input

• Number of Channels: 16 isolated digital inputs

• Input Types: Dry contact or sourced/sinked DC voltage

• Input Voltage Range: 0–30 VDC

• On-State Threshold: ≥12 VDC

• Off-State Threshold: ≤5 VDC

• Input Impedance: 10 kΩ typical

• Isolation: Channel-to-channel and channel-to-system isolation

Physical & Environmental

• Dimensions (H × W × D): Standard Series C module size (~120 × 80 × 25 mm)

• Weight: 2.0 kg

• Operating Temperature: –40 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C

• Certifications: CE, UL, CSA, TUV

FAQ

Q1: How many input channels does this module support?
A: It provides 16 isolated digital input channels for versatile signal acquisition.

Q2: What types of input signals are supported?
A: Dry contact and sourced/sinked DC voltage inputs from 0–30 VDC are supported.

Q3: Can it operate in harsh industrial conditions?
A: Yes, it has high noise immunity and operates reliably between –40 °C to +70 °C.

Q4: Does the module have diagnostic capabilities?
A: Yes, built-in diagnostics detect wiring and signal faults quickly.

Q5: What certifications does this module have?
A: CE, UL, CSA, and TUV certifications ensure industrial safety compliance.
