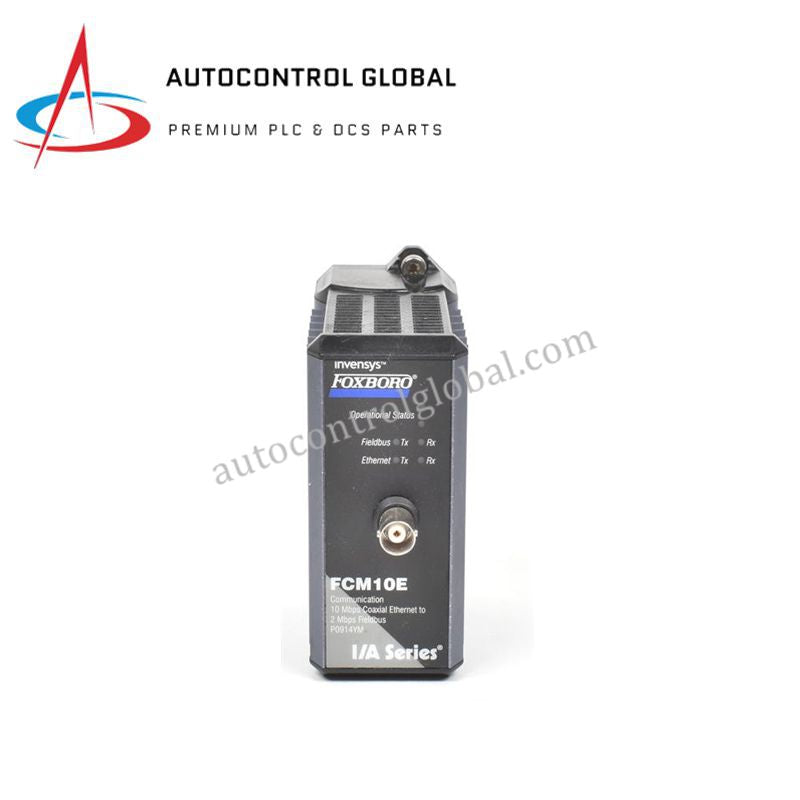

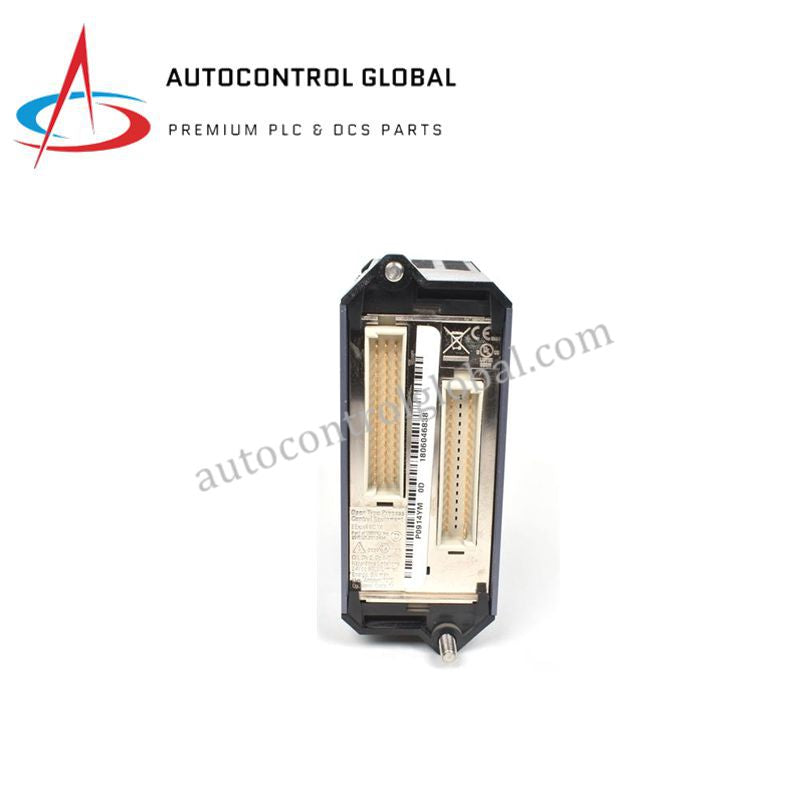

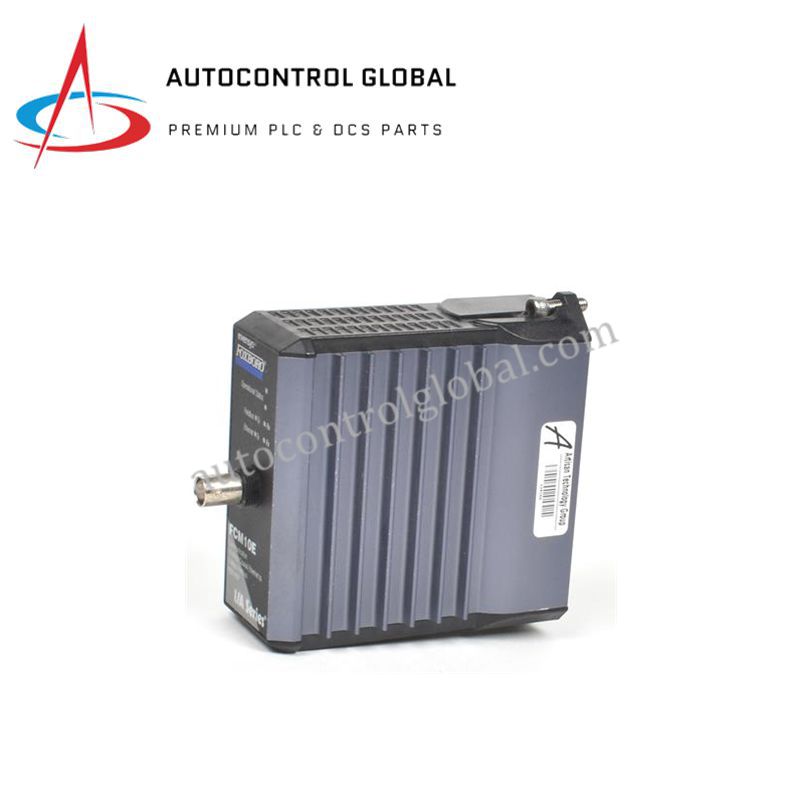

FCM10E FOXBORO | Ethernet to FBM Converter Module
Manufacturer: Foxboro
-
Part Number: FCM10E
Condition：New with Original Package
Product Type: Ethernet to FBM Converter Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO FCM10E | High-Speed Fieldbus Communications Module
Product Overview
The FOXBORO FCM10E is a high-speed Fieldbus Communications Module designed for Foxboro I/A Series Distributed Control Systems. It enables DIN rail-mounted Fieldbus Modules (FBMs) to communicate with control stations via 10 Mbps Ethernet. The module converts signals between 10 Mbps Ethernet trunk Fieldbus and 2 Mbps FBM Fieldbus, while providing galvanic isolation for reliable operation.
Built for redundant configurations, the FCM10E supports up to 30 FBMs per module pair. Its compact aluminum housing and hot-swappable design ensure durability and easy maintenance without disrupting communication or power. This module optimizes system reliability in chemical processing, power generation, pharmaceuticals, and smart water systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | FCM10E |
| Function | Fieldbus Communications Module |
| Signal Conversion | Converts 10 Mbps Ethernet to 2 Mbps FBM Fieldbus and vice versa |
| Supported FBMs | Up to 30 FBMs per module pair |
| Redundancy | Modules operate in pairs for fault-tolerant performance |
| Isolation | Galvanic isolation between Ethernet trunk and FBM Fieldbus |
| Mounting | DIN rail or rack-mounted baseplate |
| Material | Extruded aluminum housing |
| LED Indicators | 6 LEDs for network activity and module status |
| Operating Temperature | –20°C to +70°C (–4°F to +158°F) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Altitude Range | –300 to +3,000 m (–1,000 to +10,000 ft) |
| Dimensions | Height: 102–114 mm; Width: 45 mm; Depth: 104 mm |
| Certifications | UL/UL-C Class I, Div 2, Groups A–D; CE; RoHS; NEC Class 2 |
FAQ
Q: What is the primary function of the FOXBORO FCM10E?
A: It acts as a Fieldbus communications interface, converting Ethernet to FBM signals with galvanic isolation.
Q: How many FBMs can the FCM10E support?
A: Up to 30 FBMs per module pair for large-scale distributed control systems.
Q: Can the module operate in harsh industrial environments?
A: Yes, it is housed in rugged aluminum and withstands –20°C to +70°C, dust, and vibration.
Q: Is it possible to maintain the system without powering down?
A: Yes, the hot-swappable design allows maintenance without interrupting communications.
Q: Does the FCM10E support redundant configurations?
A: Yes, module pairs ensure fault-tolerant operation for mission-critical applications.
