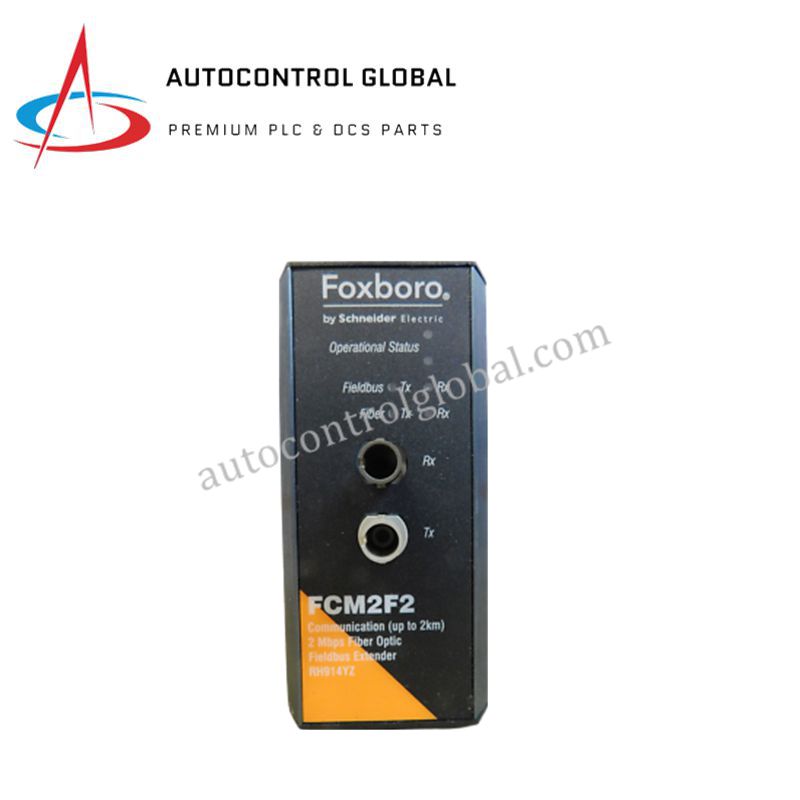

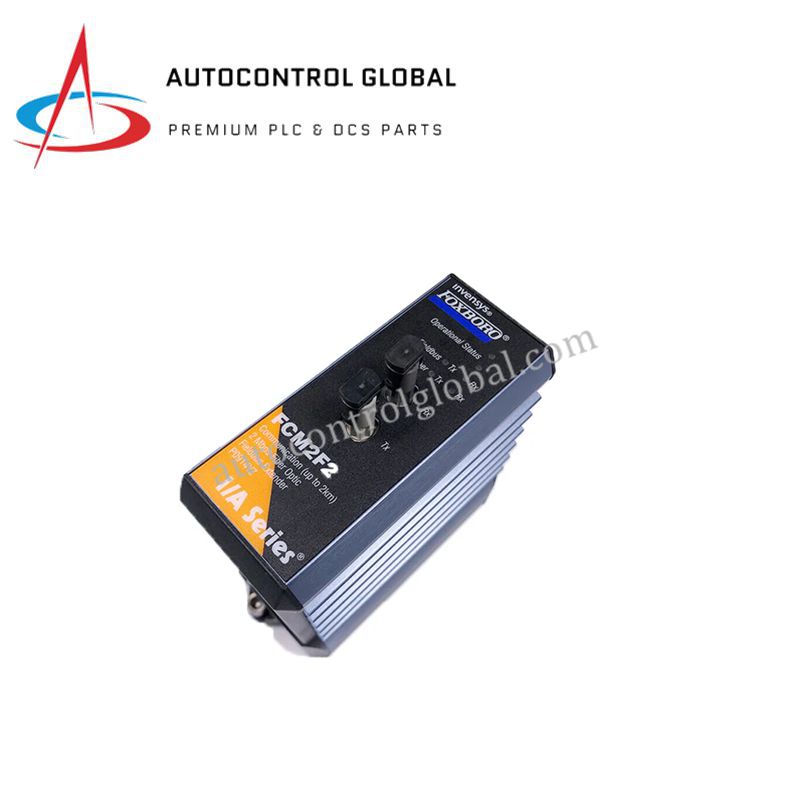

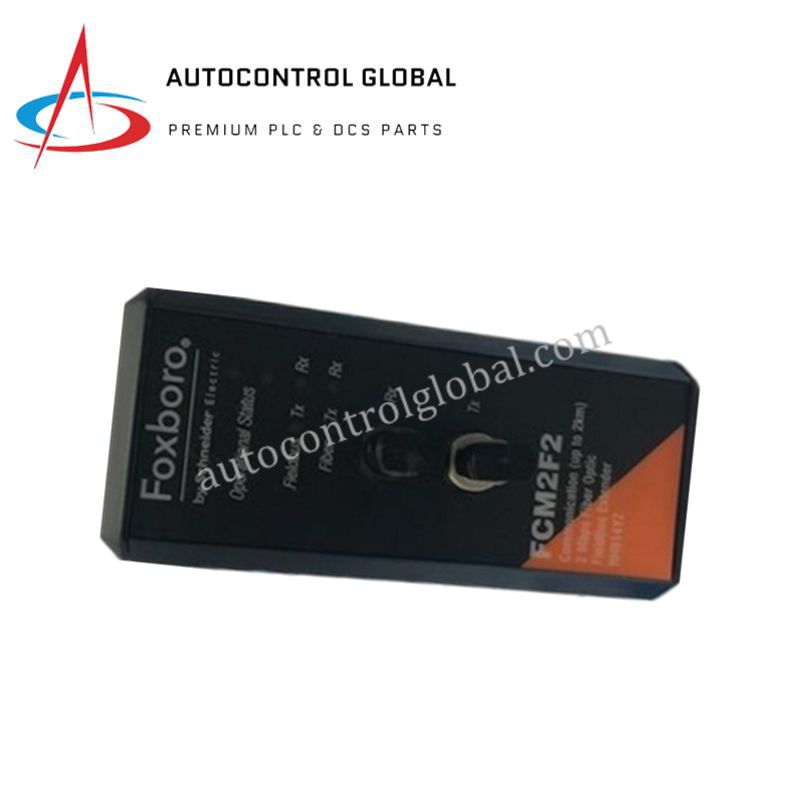

FCM2F2 RH914YZ | Foxboro Fiber-Optic Communication Module
Manufacturer: Foxboro
-
Part Number: FCM2F2 RH914YZ
Condition：New with Original Package
Product Type: Fiber-Optic Communication Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO FCM2F2 RH914YZ | Fiber-Optic Fieldbus Communication Module
Product Overview
The FOXBORO FCM2F2 RH914YZ is a high-performance Fieldbus Communication Module (FCM) designed for the Foxboro I/A Series Distributed Control System (DCS). It extends communication over fiber-optic cabling, enabling remote installation of 200 Series Fieldbus Modules (FBMs). Its rugged design ensures reliable operation in high-noise industrial environments, providing EMI/RFI immunity, electrical isolation, and lightning protection.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | FCM2F2 RH914YZ |
| Function | Fiber-optic fieldbus communication extender |
| Fiber Type | Multimode fiber (62.5 µm core / 125 µm cladding) |
| Connector Type | ST-type fiber connectors |
| Maximum Segment Distance | Up to 2 km between baseplates |
| Total Fiber Distance | Up to 20 km across multiple segments |
| Redundancy Support | Yes – dual FCMs per baseplate for fault tolerance |
| Mounting | Standard baseplate slots (first or last adjacent for redundancy) |
| Environmental Protection | Class G (harsh environments) per ISA S71.04 |
| Housing Material | Extruded aluminum for physical circuit protection |
| LED Indicators | 6 LEDs for fiber link, fieldbus activity, and module health |
| Hot-Swappable | Yes – can be removed/replaced without powering down |
| Compatibility | Foxboro I/A Series FBMs and baseplates |
| Operating Conditions | Indoor/outdoor use, including lightning-prone areas |
FAQ
Q: What is the warranty for the FOXBORO FCM2F2 RH914YZ?
A: The FCM2F2 RH914YZ comes with a 12-month warranty and is fully factory-tested.
Q: Can the FOXBORO FCM2F2 RH914YZ operate in high-noise industrial areas?
A: Yes, it features EMI/RFI immunity, electrical isolation, and lightning protection.
Q: How is the FOXBORO FCM2F2 RH914YZ mounted?
A: It mounts on standard baseplate slots and supports redundant or non-redundant configurations.
Q: Is the FOXBORO FCM2F2 RH914YZ hot-swappable?
A: Yes, it can be replaced without powering down the system.
