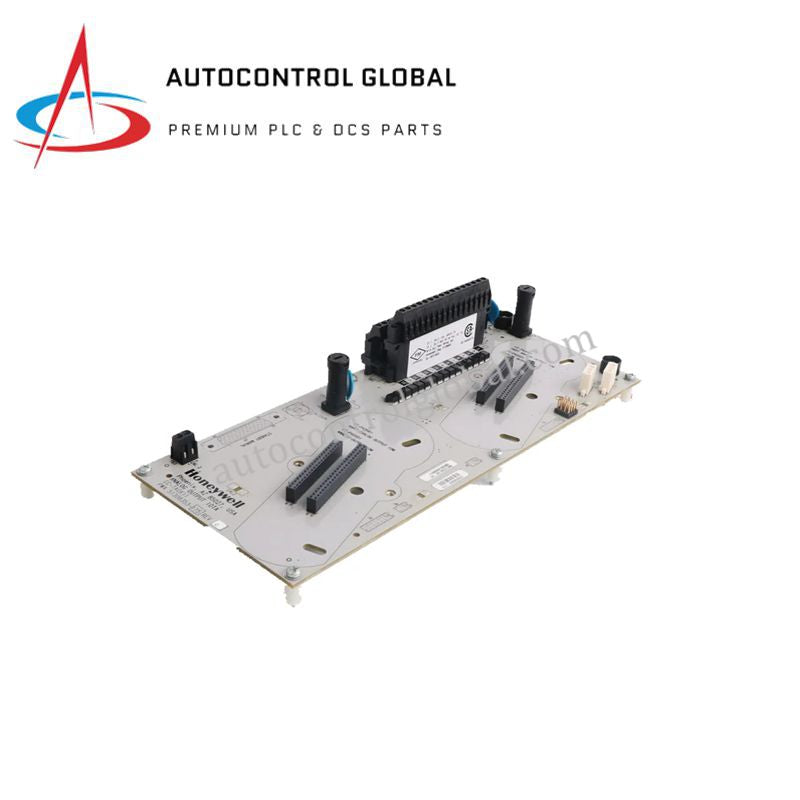

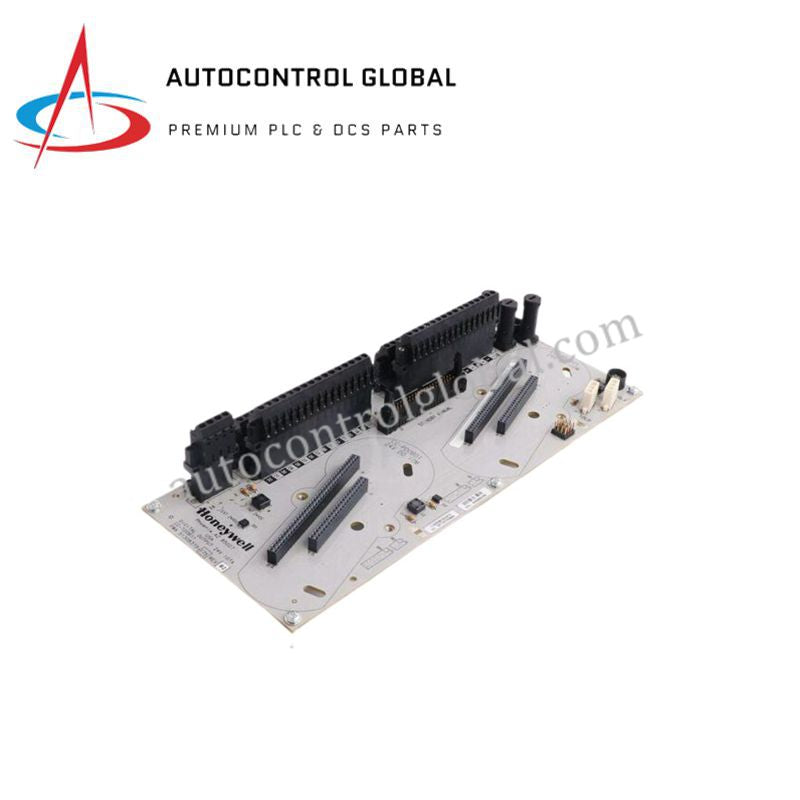

Field Termination Assembly DC-TCF902 | Honeywell Industrial Module
Manufacturer: Honeywell
-
Part Number: DC-TCF902 51307945-176
Condition：New with Original Package
Product Type: Field Termination Assembly
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL DC-TCF902 is a reliable Field Termination Assembly (FTA) module engineered for industrial automation applications. It provides organized connection points for field devices and I/O modules, supporting both digital and analog signal termination. Its rugged design ensures reliable performance in harsh environments, resisting vibration, dust, and EMI. The module is panel-mounted for convenient integration into Honeywell Experion PKS and TDC 3000 distributed control systems. LED indicators may provide operational diagnostics, enhancing system monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DC-TCF902 |
| Part Number | 51307945-176 |
| Type | Field Termination Assembly (FTA) |
| Function | Connects field devices to I/O modules; supports digital/analog signal termination |
| Channels Supported | Typically 32 channels (verify based on I/O type) |
| Connection Type | Screw-type terminal blocks; ribbon cable or connector interface to I/O cards |
| Indicators | May include LED status indicators for diagnostics (configuration-dependent) |
| Mounting | Panel-mounted within control cabinets |
| Operating Temperature | −20°C to +60°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Environmental Resistance | Vibration, dust, and EMI resistant |
| Certifications | CE marked; compliant with Honeywell industrial safety and EMC standards |
| Weight | 600 g |
FAQ
Q1: How many channels does the DC-TCF902 support?
A1: The module typically supports 32 channels; exact support depends on I/O type.
Q2: Can this module handle analog signals?
A2: Yes, it supports both digital and analog signal termination depending on configuration.
Q3: What is the operating temperature range?
A3: The DC-TCF902 operates reliably from −20°C to +60°C in industrial environments.
Q4: How is field wiring secured?
A4: Screw-type terminal blocks provide robust, secure connections for field devices.
Q5: Is the module resistant to industrial conditions?
A5: Yes, it is resistant to vibration, dust, and electromagnetic interference (EMI).
