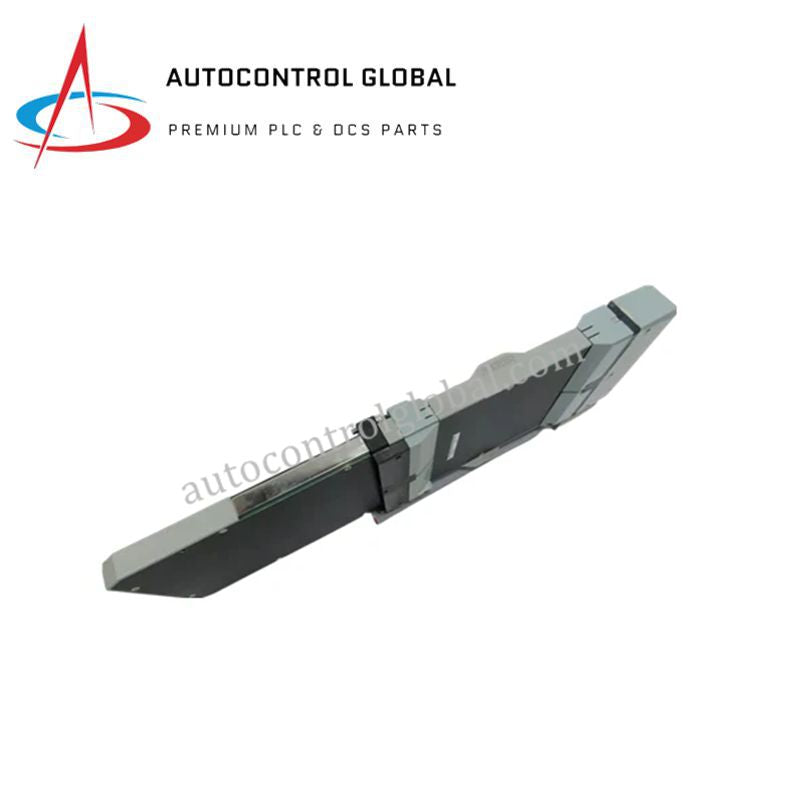

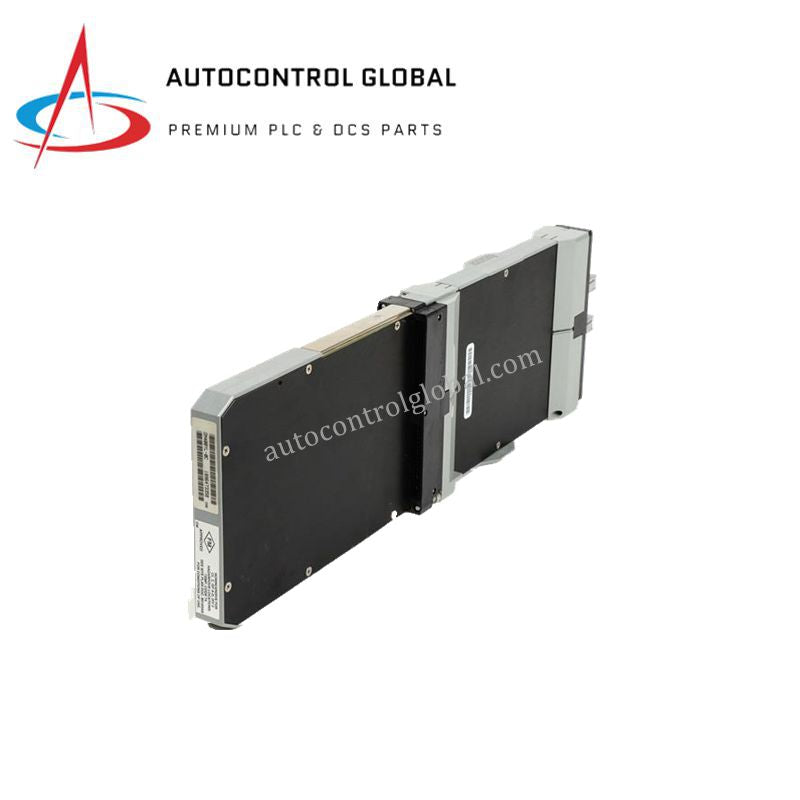

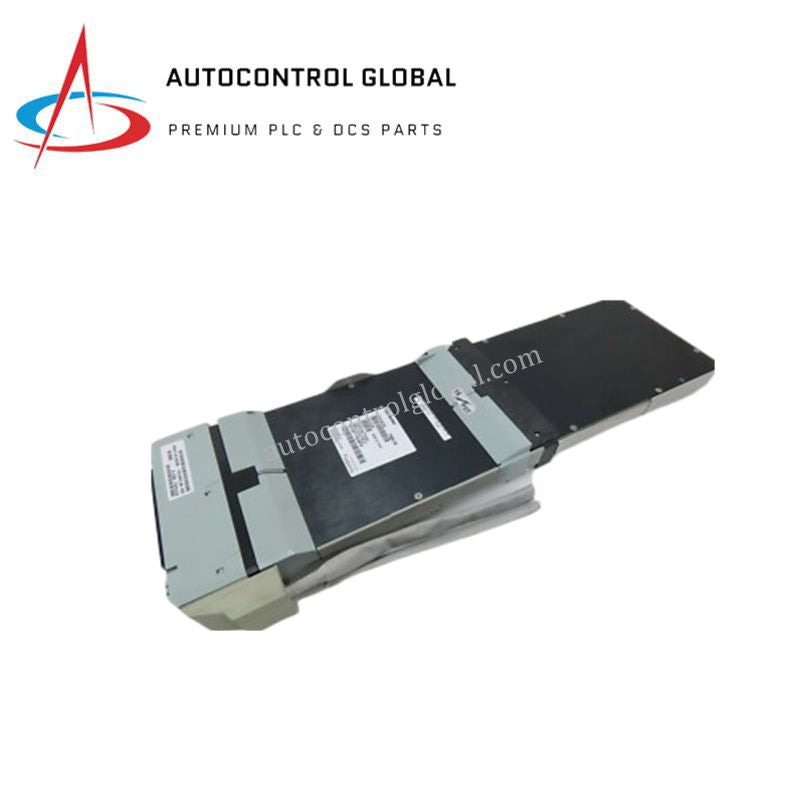

FOXBORO CM400YH FBM07 | Analog Input Fieldbus Module
Manufacturer: Foxboro
-
Part Number: CM400YH FBM07
Condition：New with Original Package
Product Type: Analog Input Fieldbus Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO CM400YH FBM07 | Analog Input Fieldbus Module
Overview
The FOXBORO CM400YH FBM07 is a high-precision Analog Input Fieldbus Module designed for Foxboro I/A Series DCS. It acquires analog data from sensors measuring temperature, pressure, flow, and level, converting signals into digital values for accurate process control.
This module provides eight isolated input channels, channel-to-channel and channel-to-ground isolation, and supports redundant configurations. Its compact, hot-swappable design enables quick installation and maintenance without disrupting operations. The CM400YH FBM07 is suitable for chemical processing, power generation, pharmaceutical manufacturing, and oil & gas industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CM400YH FBM07 |
| Function | Analog Input Fieldbus Module |
| Number of Channels | 8 isolated analog input channels |
| Input Signal Range | 4–20 mA standard analog signal |
| Input Impedance | >250 ohms |
| Accuracy | ±0.05% of span typical |
| Resolution | 16-bit ADC |
| Isolation | Channel-to-channel and channel-to-ground |
| Update Rate | Configurable scan intervals; typically sub-second |
| Power Supply | 24 V DC (supports redundant input) |
| Power Consumption | ≤ 5 W |
| Communication Protocol | HDLC Fieldbus |
| Mounting Type | DIN rail or modular baseplate |
| Operating Temperature | –20°C to +70°C (–4°F to +158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, RoHS, IEC 61131-2 compliant |
FAQ
Q1: What is the main function of the CM400YH FBM07?
A1: It converts analog signals from field sensors into digital data for precise process control.
Q2: How many analog input channels does this module provide?
A2: The CM400YH FBM07 offers 8 isolated input channels.
Q3: Can it handle redundant power input?
A3: Yes, it supports 24 V DC redundant input for high reliability.
Q4: What is the input signal range?
A4: Standard 4–20 mA analog signals are compatible.
Q5: Is this module suitable for harsh industrial environments?
A5: Yes, it operates from –20°C to +70°C and withstands 5–95% non-condensing humidity.
Q6: How is it mounted?
A6: It mounts on DIN rails or modular baseplates for easy integration.
