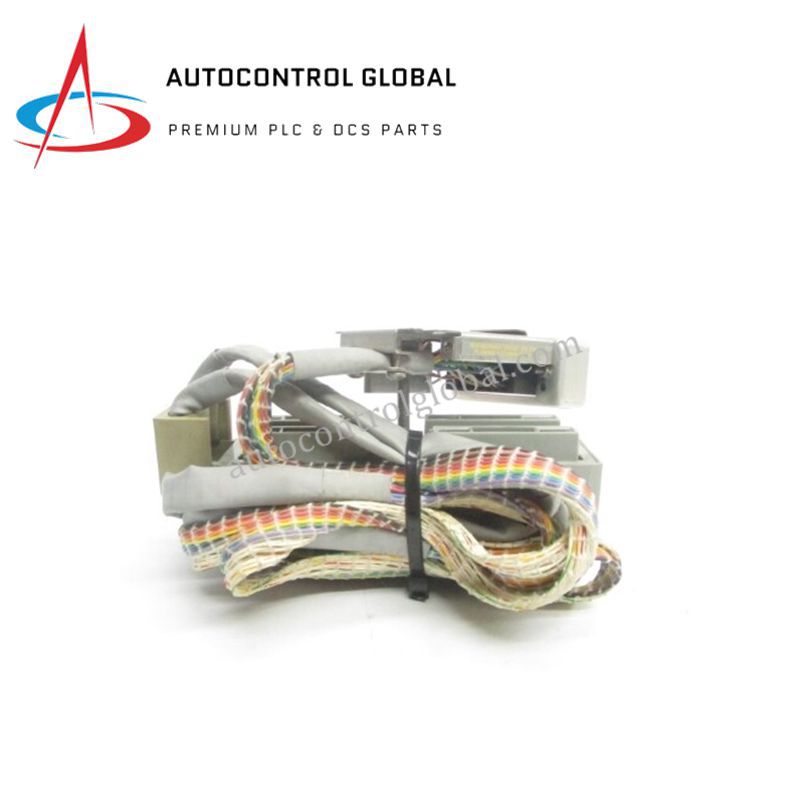

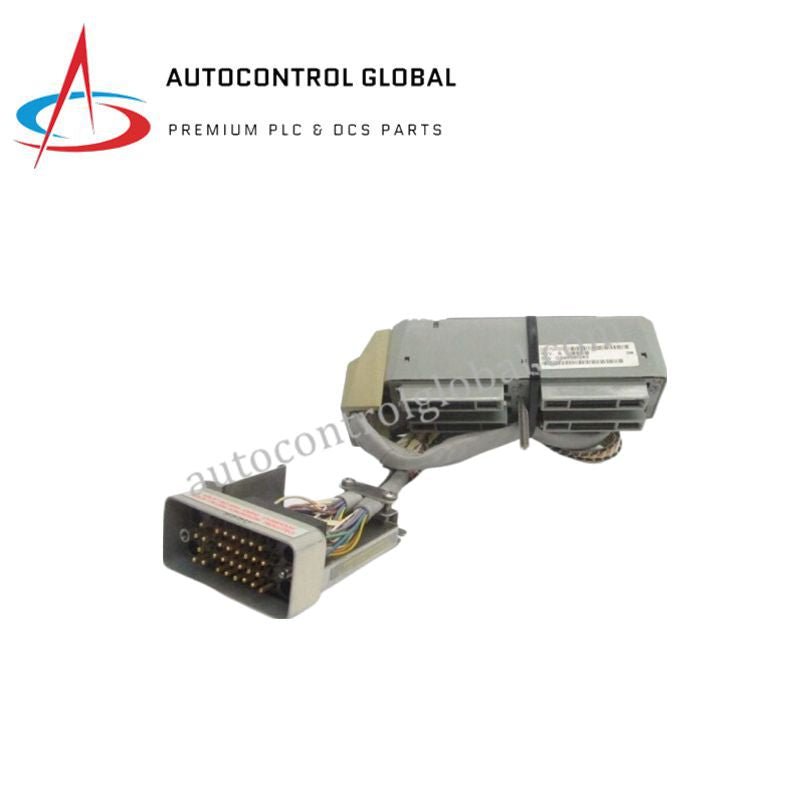

FOXBORO DM700DZ | Reliable Expansion Module with 24 V DC Input
Manufacturer: Foxboro
-
Part Number: DM700DZ
Condition：New with Original Package
Product Type: Reliable Expansion Module with 24 V DC Input
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO DM700DZ | Analog I/O Module for I/A Series & Evo DCS
Product Overview
The FOXBORO DM700DZ is a rugged analog input/output (I/O) module designed for use in Foxboro I/A Series and Evo™ DCS systems. It provides a secure and reliable interface between field devices such as sensors, transmitters, and actuators with the main control processors.
With integrated signal processing, data acquisition, and communication functions, the DM700DZ reduces system complexity while supporting scalable and fault-tolerant configurations. Its industrial-grade design ensures long-term performance in demanding environments such as power generation, oil & gas, pharmaceutical plants, and chemical processing facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | DM700DZ |
| Function | Analog Input/Output (I/O) Module |
| Signal Type | Analog (voltage/current) |
| Memory Configuration | 16 MB SDRAM, 32 MB Flash |
| Processor Configuration | Single processor (supports dual-module for fault tolerance) |
| Input Voltage | 24 V DC (typical) |
| Power Consumption | ≤ 8.5 W (non-redundant configuration) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Communication Protocols | HDLC Fieldbus, Modbus, RS-485 |
| Mounting Type | DIN rail or modular baseplate |
| Environmental Protection | Resistant to vibration, dust, and humidity |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
FAQ
Q: What is the main function of the FOXBORO DM700DZ?
A: The DM700DZ serves as an analog input/output module for connecting field devices to Foxboro I/A and Evo™ DCS systems.
Q: Does the DM700DZ support redundant operation?
A: Yes, it can be used in a dual-module fault-tolerant configuration for high-reliability applications.
Q: What communication protocols are supported?
A: The module supports HDLC Fieldbus, Modbus, and RS-485, allowing versatile integration.
Q: What is the power requirement of the DM700DZ?
A: The module typically operates on 24 V DC with power consumption under 8.5 W.
Q: Can this module operate in industrial environments?
A: Yes, it is industrial-grade, built to withstand vibration, dust, and high humidity levels.
