Foxboro FBM2/36 P0500RG | Thermocouple/mV Input Module
Manufacturer: Foxboro
-
Part Number: FBM2/36 P0500RG
Condition：New with Original Package
Product Type: Thermocouple/mV Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Foxboro FBM2/36 P0500RG is a high-precision Thermocouple/millivolt (mV) Input Interface Module designed for accurate temperature and low-voltage measurement. It is part of the Foxboro I/A Series Fieldbus Modules (FBMs) and is ideal for applications in chemical processing, power generation, and pharmaceuticals.

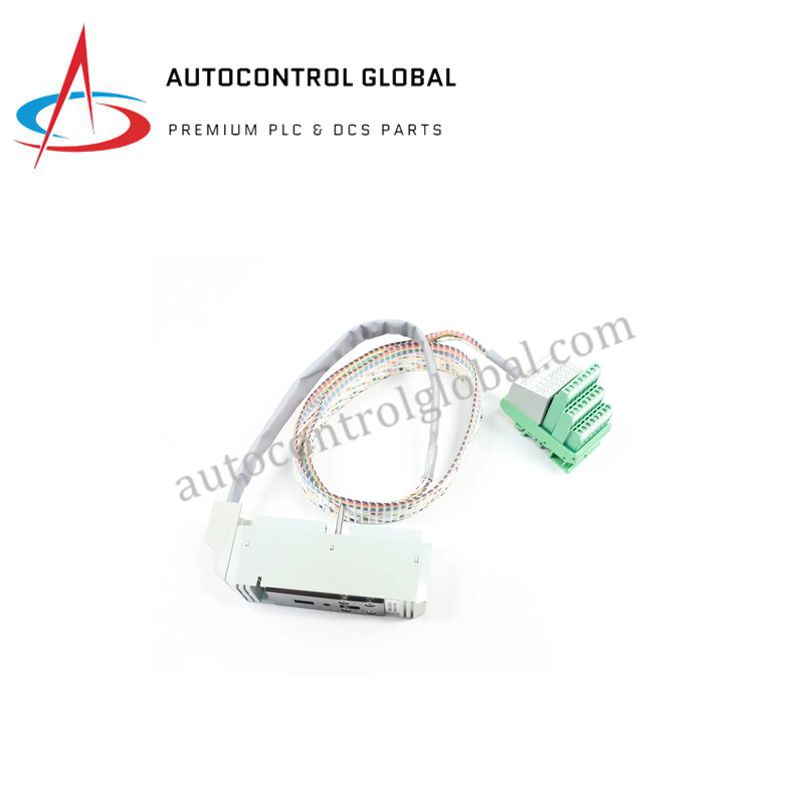

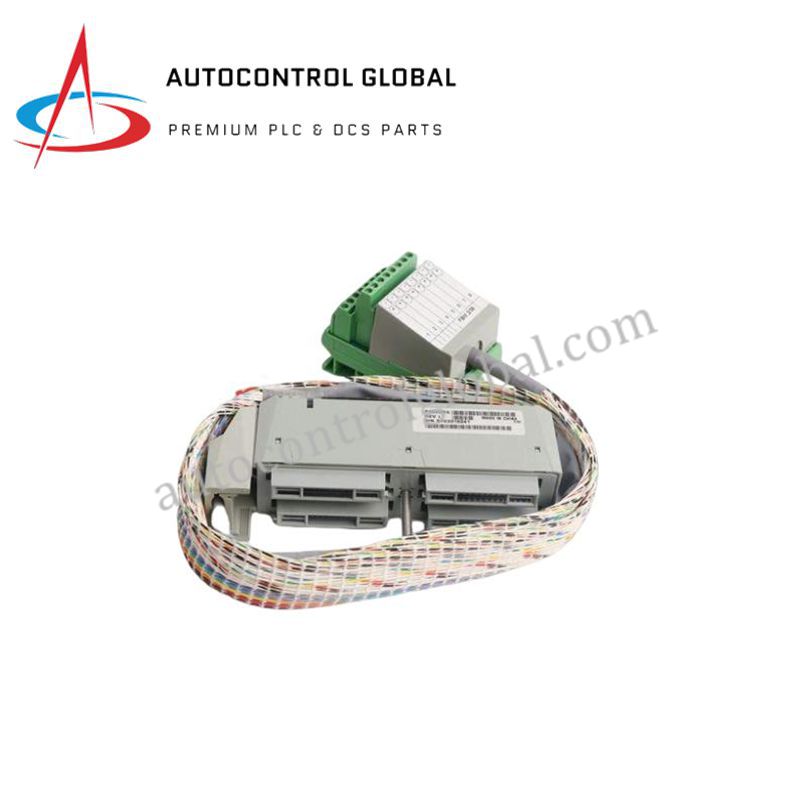

Paired with a robust termination cable assembly, FBM2/36 P0500RG ensures secure and noise-resistant connections between the module and field devices. The cable features Teflon-insulated conductors and withstands temperature extremes, moisture, and electromagnetic interference.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | FBM2/36 P0500RG |
| Function | Thermocouple and millivolt signal acquisition |
| Input Types | Thermocouple (Type J, K, T, E, etc.), mV signals |
| Number of Channels | Typically 8 isolated input channels |
| Input Range | ±100 mV typical; varies by thermocouple type |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and field-to-system isolation |
| Update Rate | ≤ 250 ms per channel |
| Operating Temperature | –40°C to +70°C |
| Cable Assembly | Teflon-insulated, shielded, IP67-rated termination cable |
| Cable Length | Standard 36 inches; customizable options available |
| Connector Type | DB9 connector to terminal block |
| Mounting Type | DIN rail or baseplate-mounted |
| Certifications | CE, UL, CSA; suitable for hazardous environments |
