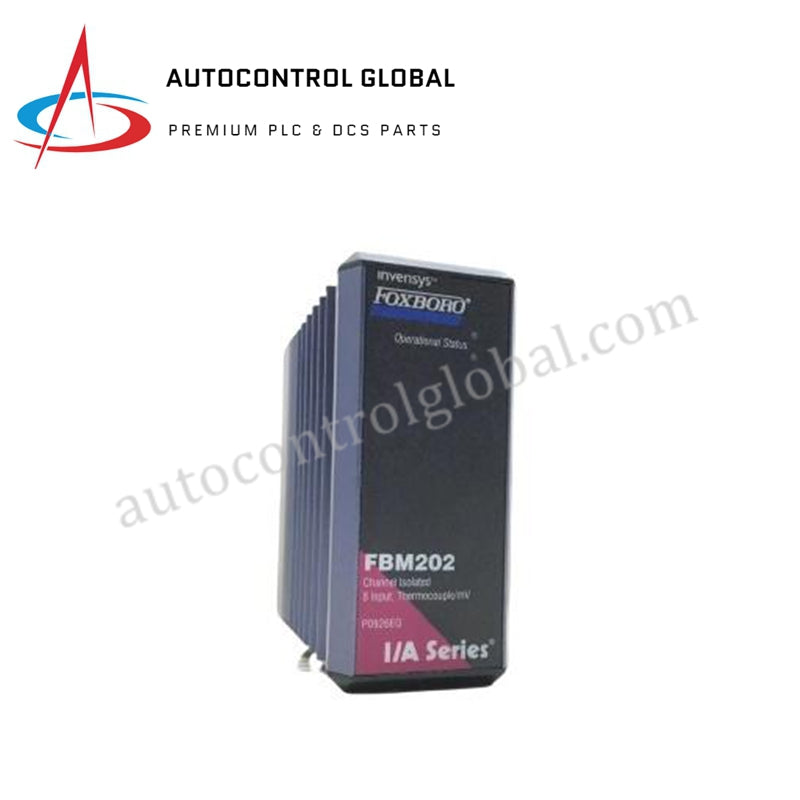

Foxboro FBM202 P0926EQ Thermocouple/mV Input Module
Manufacturer: Foxboro
-
Part Number: FBM202 P0926EQ
Condition：New with Original Package
Product Type: Thermocouple/mV Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
FBM202 P0926EQ is a Thermocouple/mV Input Module by Foxboro, designed to interface with FCM or FCP via a redundant 2Mbps module Fieldbus. It is suited for temperature and millivolt measurements in industrial automation systems.
Power & Consumption
-
Input Voltage Range (Redundant): 24 V dc, +5%, -10%
-
Consumption: 3 W (maximum)
-
Heat Dissipation: 3 W (maximum)
Environmental Specifications
-
Operating Temperature (Module): -20 to +70°C (-4 to +158°F)
-
Operating Temperature (Termination Assembly - PVC): -20 to +50°C (-4 to +122°F)
-
Operating Temperature (Termination Assembly - PA and PC/ABS): -20 to +70°C (-4 to +158°F)
-
Relative Humidity: 5 to 95% (non-condensing)
-
Altitude (Operating): -300 to +3,000 m (-1,000 to +10,000 ft)
-
Storage Temperature: -40 to +70°C (-40 to +158°F)
-
Storage Relative Humidity: 5 to 95% (non-condensing)
-
Storage Altitude: -300 to +12,000 m (-1,000 to +40,000 ft)
-
Contamination: Suitable for Class G3 (Harsh) environments per ISA Standard S71.04
-
Vibration: 0.75 m/s² (5 to 500 Hz)
