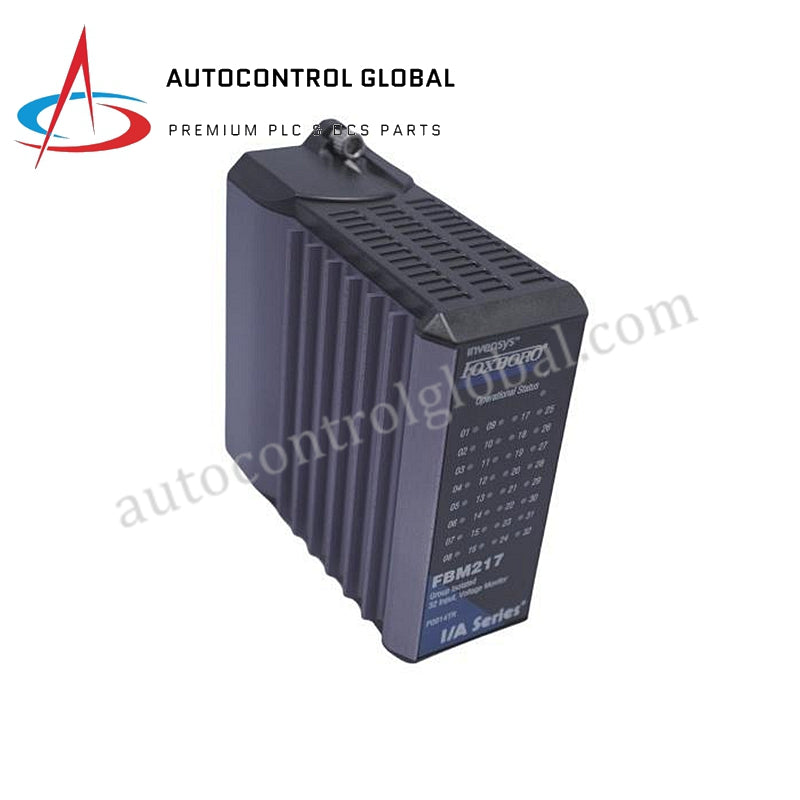

Foxboro FBM217 Invensys Discrete Input Module
Manufacturer: Foxboro
-
Part Number: FBM217
Condition：New with Original Package
Product Type: Discrete Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
FBM217 is a 32-channel discrete input module designed by Invensys Foxboro for high-density industrial input applications.
Specifications
• Input Channels: 32 group isolated
• On-State Voltage: 15 to 30 VDC
• Off-State Voltage: 0 to 5 VDC
• Input Current: 2.2 mA at 30 VDC (typical)
• On-State Source Resistance: Max 1 kΩ
• Off-State Source Resistance: Min 100 kΩ
Communication
• Interface: Communicates with FCM or FCP via Fieldbus
Power
• Voltage Range: 24 VDC +5%, -10%
• Consumption: 3 W
• Heat Dissipation: 5 W
Calibration
• Requirements: No calibration needed for module or termination assembly
Dimensions
• Height: 130 mm
• Width: 25 mm
• Depth: 150 mm (incl. connectors), 139 mm (excl. connectors)
