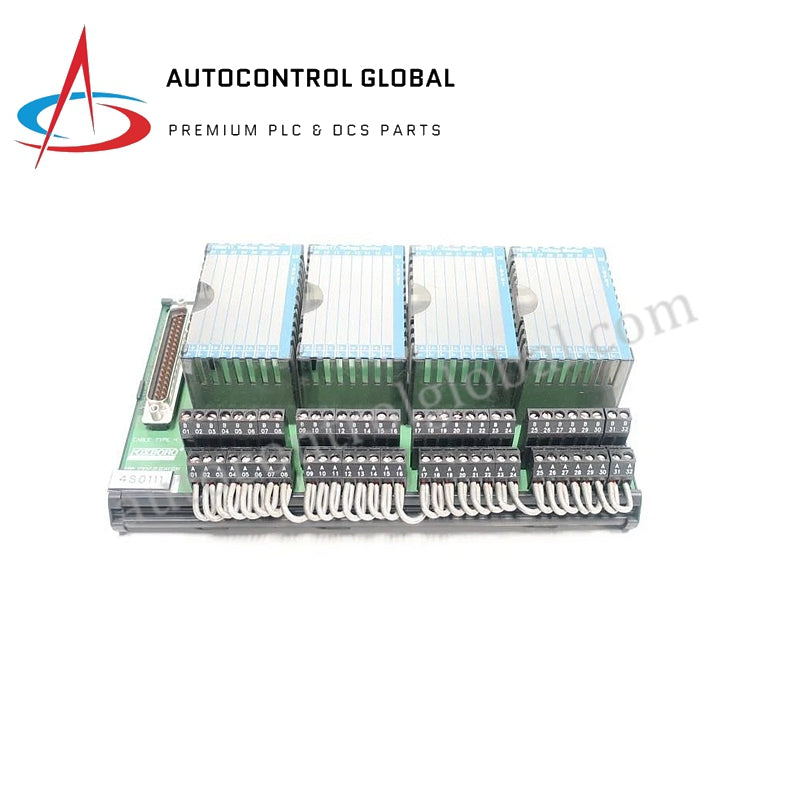

Foxboro FBM217 P0916CA Discrete Input Module
Manufacturer: Foxboro
-
Part Number: FBM217 P0916CA
Condition：New with Original Package
Product Type: Discrete Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
FBM217 P0916CA is a 32-channel discrete input module with group isolation, configurable filter times, and high reliability, ideal for demanding industrial environments.
Input Specifications
-
Input channels: 32 group-isolated channels
-
On-state voltage: 15 to 30 V DC
-
Off-state voltage: 0 to 5 V DC
-
Input current: 2.2 mA (typical) at 30 V DC
-
ON-state source resistance: Max. 1 kΩ at 15 V DC
-
OFF-state source resistance: Min. 100 kΩ at 30 V DC
-
Filter/debounce time: Configurable (No Filtering, 4, 8, 16, 32 ms)
-
Maximum pulse count rate: 250 Hz
Power Requirements
-
Input voltage range (redundant): 24 V DC (+5%, -10%)
-
Power consumption: 3 W (max) at 24 V DC
-
Heat dissipation: 5 W (max) at 24 V DC
Environmental Conditions
-
Operating temperature (FBM217): -20 to +70°C (-4 to +158°F)
-
Operating temperature (PA termination assembly): -20 to +70°C (-4 to +158°F)
-
Relative humidity: 5% to 95% (non-condensing)
-
Altitude: -300 to +3,000 m (-1,000 to +10,000 ft)
