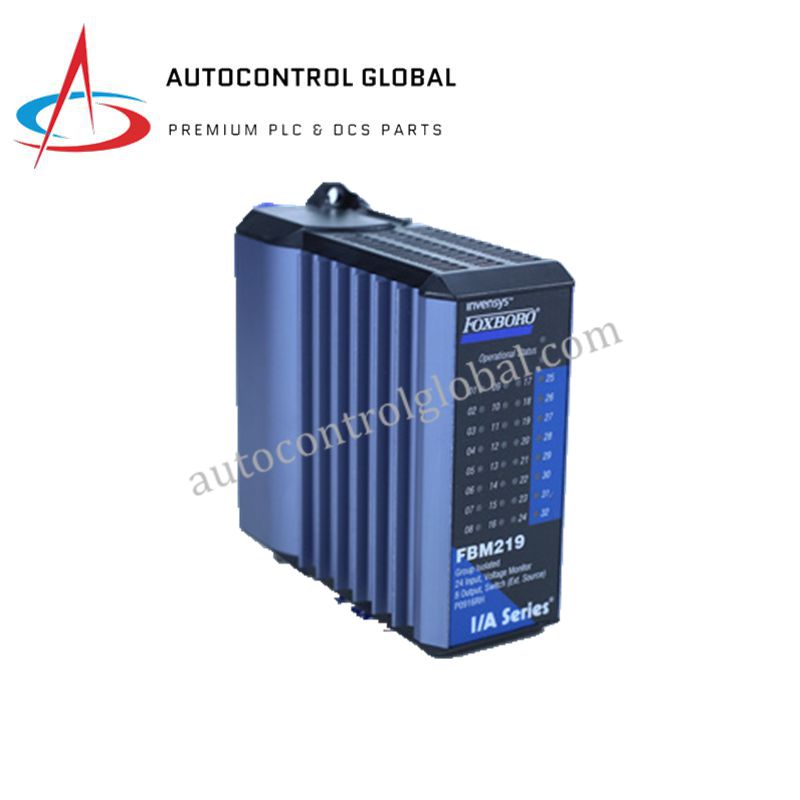

Foxboro FBM219 Discrete I/O Module 24 Inputs 8 Outputs

  • Manufacturer: Foxboro

  • Part Number: FBM219

  • Condition：New with Original Package

  • Product Type: Discrete I/O Module 24 Inputs 8 Outputs

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

Overview

The Foxboro FBM219 is a high-density discrete I/O interface module designed for the Foxboro I/A Series and Evo™ process automation platforms. It supports 24 isolated input channels and 8 isolated output channels, enabling precise acquisition and control of analog and digital signals within complex industrial processes.

Each channel is individually isolated to prevent ground loops, improve noise immunity, and maintain reliable operation in electrically challenging environments. Redundant operation is supported by pairing two modules, providing continuous fault-tolerant performance for critical applications in oil & gas, petrochemical, chemical, and power generation industries.

Functional Features

  • High Channel Density: 32 total channels (24 inputs, 8 outputs) for space-efficient signal acquisition.

  • Input Protection: Current-limited inputs (2.5 mA) safeguard against overload and ensure reliable operation.

  • Redundancy: Two-module pairing allows one module to serve as master and the other as backup, maintaining uninterrupted operation.

  • Fieldbus Communication: Integrates with Foxboro FCM or FCP via redundant module Fieldbus for fast and reliable data exchange.

  • Robust Design: Compact and durable construction suitable for harsh industrial environments.

  • Real-Time Monitoring: Fast signal acquisition and processing (<100 ms update rate) for timely process control.

Technical Specifications

Parameter Specification
Model Number FBM219
Module Type Discrete I/O Interface Module
System Compatibility Foxboro Evo™ / I/A Series
Input Channels 24 isolated voltage inputs
Output Channels 8 isolated switch outputs
Input Protection Current-limited to 2.5 mA
Isolation Channel-to-channel and channel-to-system
Redundancy Supports dual-module fault-tolerant operation
Communication Redundant Fieldbus with associated FCM/FCP
Operating Temperature 0 °C to +60 °C
Storage Temperature −40 °C to +85 °C
Dimensions (HxWxD) 10.2 × 11.4 × 4.5 cm
Module Weight 185 g
Shipping Weight 1.5 kg
Compliance IEC standards, CE certified

Key Features

  • 32 isolated channels (24 input, 8 output) for dense signal integration.

  • Redundant design for high availability and fault tolerance.

  • Channel-to-channel isolation ensures noise immunity and ground loop protection.

  • Fast processing for real-time monitoring and control.

  • Compact form factor for easy integration into Foxboro racks.

  • Input current-limiting safeguards loop devices and system reliability.

Considerations

  • Application-specific: Designed for analog input and digital output acquisition; for HART-enabled transmitters, use the FBM216 series.

  • Lifecycle: Part of Foxboro Evo™ system; verify compatibility with existing I/A Series installations.

  • Maintenance: Proper shielding, grounding, and periodic diagnostics are recommended to maintain accuracy and reliability.
