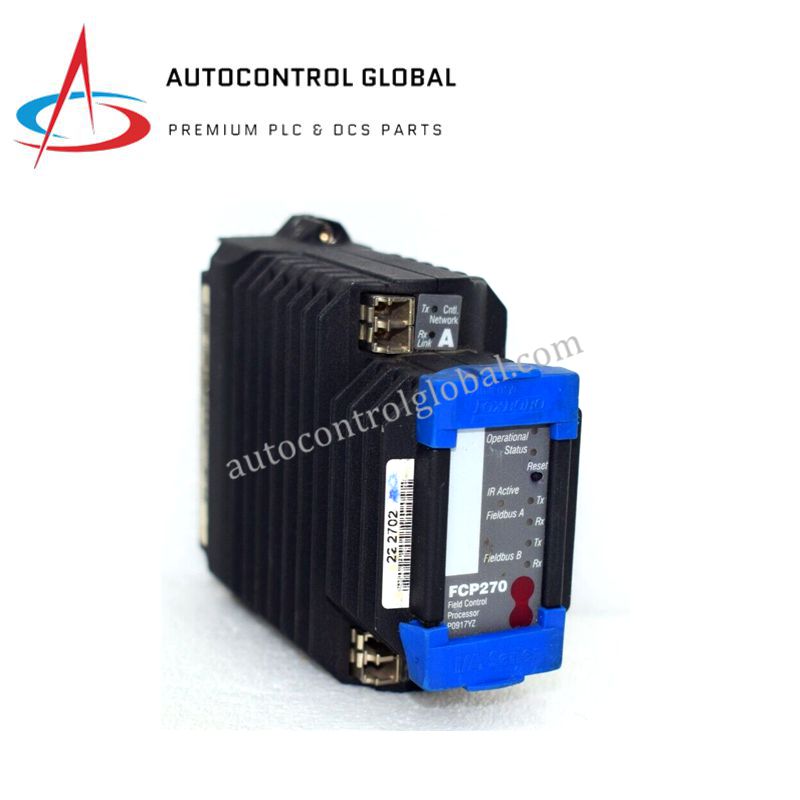

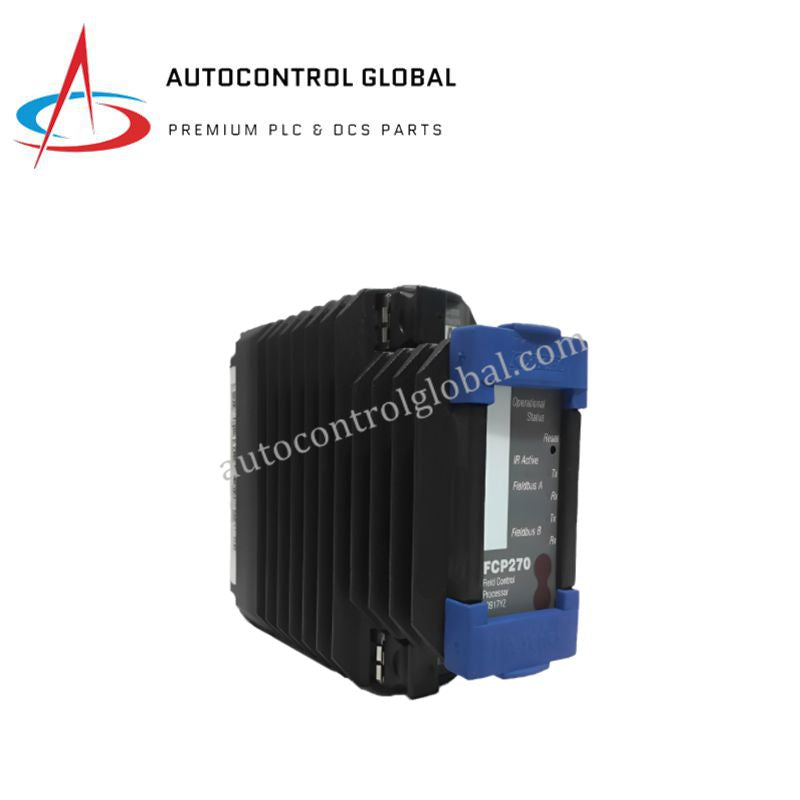

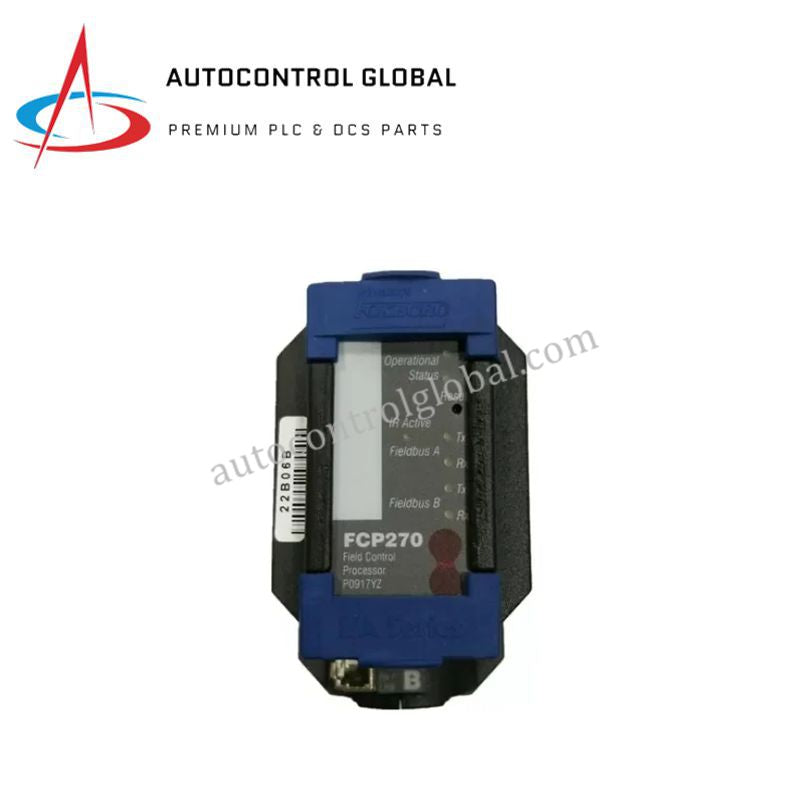

Foxboro FCP270 | Industrial Fieldbus Control Processor
Manufacturer: Foxboro
-
Part Number: FCP270
Condition：New with Original Package
Product Type: Industrial Fieldbus Control Processor
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO FCP270 | Field Control Processor
Product Overview
The FOXBORO FCP270 is a high-performance, modular Field Control Processor designed for the Foxboro I/A Series DCS. It serves as the central processor for executing control strategies, coordinating I/O communications, and performing system diagnostics across distributed Fieldbus networks.
Engineered for fault-tolerant operation and high availability, the FCP270 supports both standard and dual-processor configurations. It interfaces with Fieldbus Modules (FBMs) over a 2 Mbps HDLC Fieldbus and can expand with the FEM100 Fieldbus Expansion Module to handle up to 128 FBMs. Its rugged aluminum housing ensures reliable operation in harsh industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | FCP270 |
| Function | Central control processor for Foxboro I/A Series DCS |
| Processor Architecture | 32-bit RISC processor |
| Memory | 64 MB RAM, 32 MB Flash |
| Control Strategy Capacity | Supports up to 1,000 blocks per strategy |
| Fieldbus Communication | 2 Mbps HDLC Fieldbus; supports up to 64 FBMs natively |
| Expansion Support | Up to 128 FBMs with FEM100 module |
| Redundancy | Fault-tolerant dual processor configuration supported |
| I/O Compatibility | Analog, digital, HART, and specialty FBMs |
| Power Supply | 24 V DC (supports redundant input) |
| Mounting Type | DIN rail or baseplate slot |
| Hot-Swappable | Yes – modules replaceable without system shutdown |
| Status Indicators | Front-panel LEDs for power, communication, and faults |
| Operating Temperature | –20°C to +60°C |
| Environmental Rating | Industrial-grade; ISA S71.04 Class G3 (harsh) |
| Weight | 1.36 kg |
| Certifications | CE, UL, RoHS, IEC 61131-2 compliant |
FAQ
Q: How many Fieldbus Modules can the FCP270 support?
A: Natively, it supports up to 64 200-Series FBMs. Using a FEM100, it supports up to 128 FBMs.
Q: Does it require a Fieldbus Communication Module?
A: No, the FCP270 does not require a separate Fieldbus Communication Module.
Q: Can the FCP270 operate in harsh environments?
A: Yes, it is rated for Class G3 harsh environments and has a rugged aluminum housing.
Q: Can it run in fault-tolerant mode?
A: Yes, the FCP270 supports dual-processor fault-tolerant operation for maximum reliability.
Q: What communication networks does it support?
A: It connects via 100 Mbps fiber optic Ethernet to the MESH control network and supports both 2 Mbps and 268 Kbps HDLC Fieldbus simultaneously.
