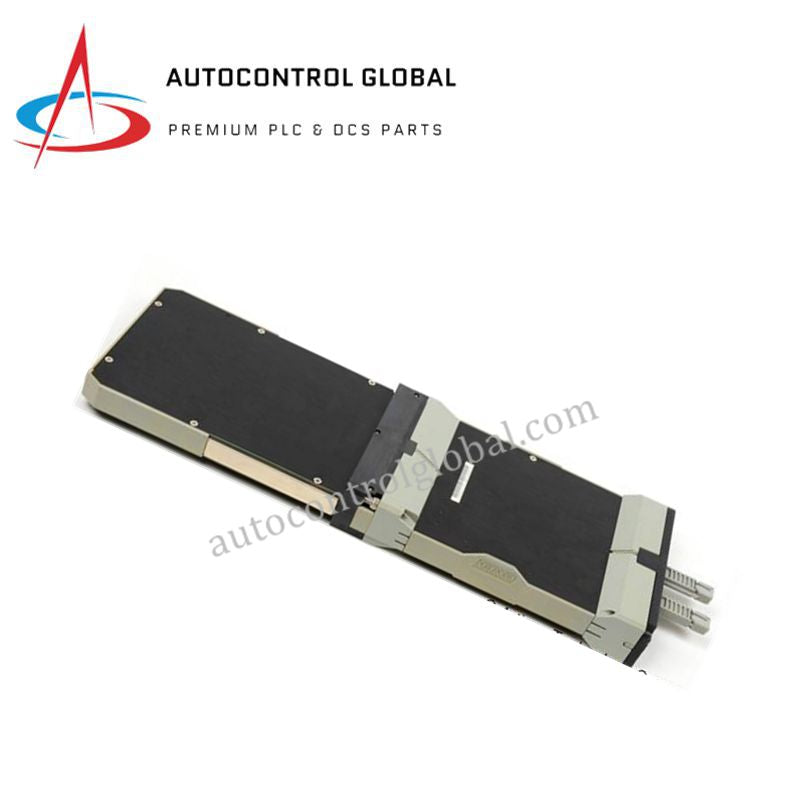

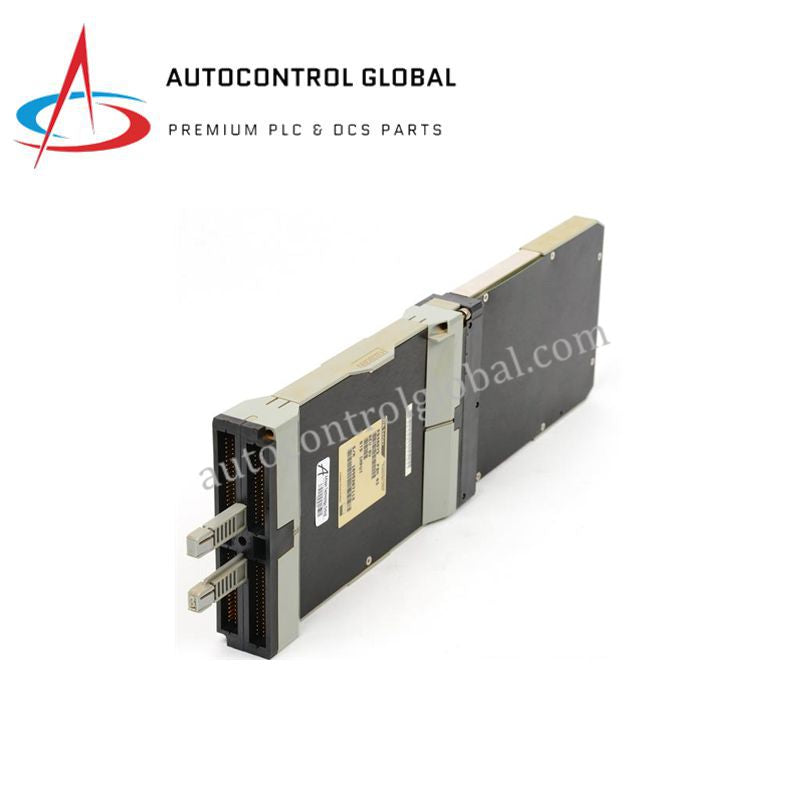

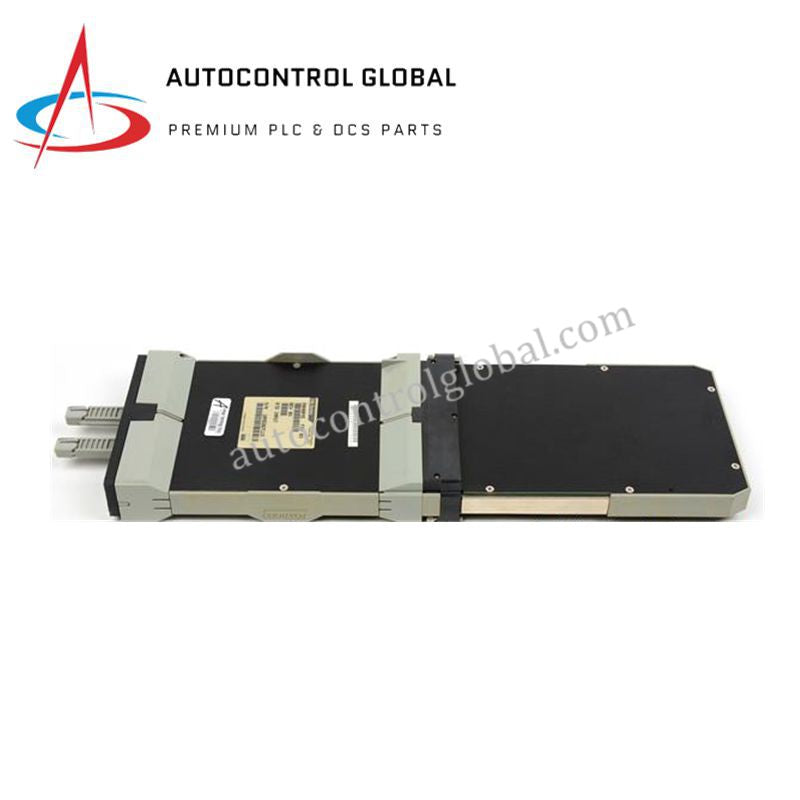

FOXBORO P0400YG FBM06 | High-Speed Pulse I/O Module
Manufacturer: Foxboro
-
Part Number: P0400YG FBM06
Condition：New with Original Package
Product Type: High-Speed Pulse I/O Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO P0400YG FBM06 | Pulse Input Fieldbus Module
Overview
The FOXBORO P0400YG FBM06 is a high-performance Pulse Input Fieldbus Module designed for the Foxboro I/A Series DCS. It processes pulse signals from field devices such as flow meters, counters, and rotary encoders, converting discrete pulse-based measurements into real-time control data.
This module handles high-speed counting, frequency measurement, and event detection, supporting precise monitoring of pulse signals. It integrates seamlessly with Foxboro’s graphical configuration tools, allowing intuitive setup, diagnostics, and live updating loop drawings.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | P0400YG FBM06 |
| Function | Pulse Input Fieldbus Module |
| Input Type | Pulse signals (dry contact, open collector, TTL-compatible) |
| Number of Channels | Typically 8 pulse input channels |
| Input Frequency Range | Up to 10 kHz (varies by configuration) |
| Signal Voltage Range | 5 VDC to 24 VDC |
| Isolation | Optical isolation per channel |
| Update Rate | Real-time acquisition with configurable scan intervals |
| Communication Protocol | HDLC Fieldbus |
| Mounting Type | DIN rail or modular baseplate |
| Operating Temperature | –20°C to +70°C (–4°F to +158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, RoHS, UL listed for Class I Div 2, IEC 61131-2 compliant |
FAQ
Q1: What is the primary function of the P0400YG FBM06?
A1: It converts pulse signals from field devices into real-time control data for Foxboro I/A Series systems.
Q2: How many pulse input channels does it support?
A2: The module typically supports 8 pulse input channels.
Q3: Which pulse signals are compatible?
A3: Dry contact, open collector, and TTL-compatible signals with voltages from 5 VDC to 24 VDC.
Q4: Can it operate in harsh industrial conditions?
A4: Yes, it is built for industrial environments with operating temperatures from –20°C to +70°C.
Q5: Does the module provide electrical isolation?
A5: Yes, optical isolation is provided per channel to prevent signal interference.
Q6: How is the module mounted?
A6: It mounts on DIN rails or modular baseplates for flexible deployment.
