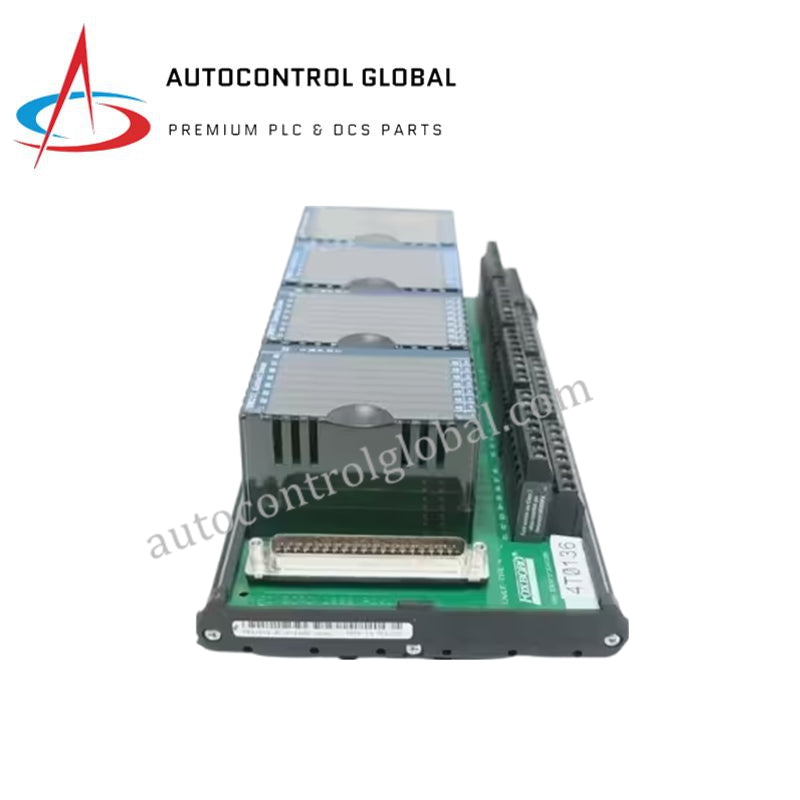

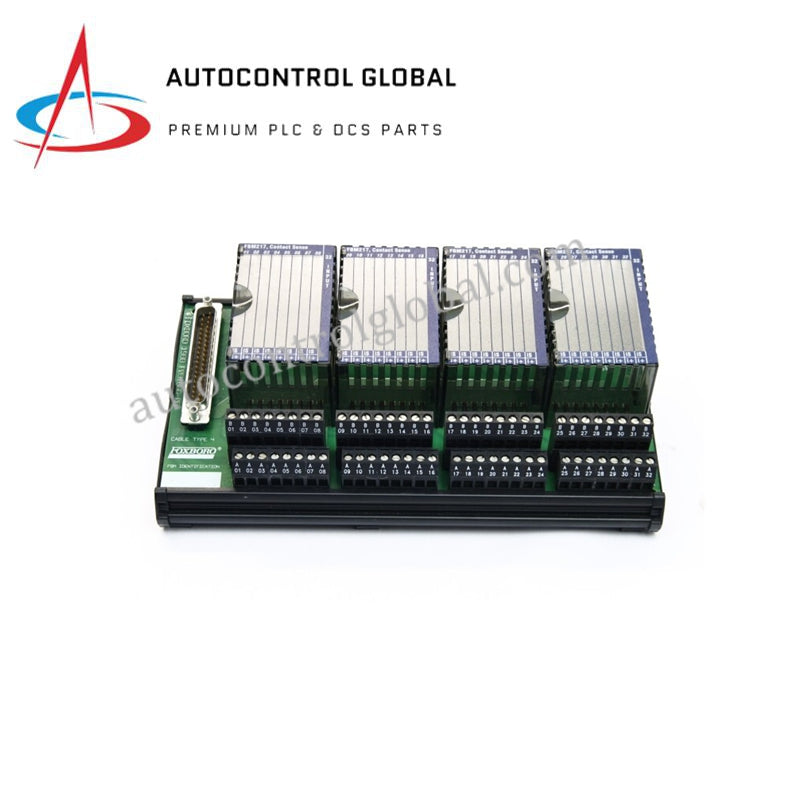

Foxboro P0916PW FBM217 Redundant Baseplate I/A Series
Manufacturer: Foxboro
-
Part Number: P0916PW
Condition：New with Original Package
Product Type: Redundant Baseplate I/A Series
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Overview
The Foxboro P0916PW is a redundant baseplate assembly engineered for the Foxboro I/A Series and Evo™ distributed control systems (DCS). It provides the essential mechanical and electrical interface for installing and operating FBM (Fieldbus Modules), supporting reliable communication, regulated power distribution, and fault-tolerant operation.
Designed for critical industrial environments, P0916PW enables dual FBM installation to maintain uninterrupted operation in the event of a module failure. Its robust channel isolation and signal routing ensure system integrity, making it suitable for oil & gas, petrochemical, chemical, and power generation industries.
Key Features
-
Dual slots for redundant FBM modules to ensure continuous operation
-
Compatible with FBM217, FBM218, and FBM219 analog input modules
-
Provides stable power distribution and communication bus connectivity
-
Channel-to-system isolation enhances noise immunity and operational safety
-
Compact and modular design simplifies integration into Foxboro racks
-
Supports fault-tolerant operation with diagnostic capabilities
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | P0916PW |
| Type | Redundant FBM Baseplate Assembly |
| System Compatibility | Foxboro I/A Series / Evo™ DCS |
| Supported Modules | FBM217, FBM218, FBM219 |
| Slots | Dual FBM installation slots for redundancy |
| Power Distribution | Regulated power for FBMs |
| Signal Routing | Channel-to-system isolation and fault-tolerant pathways |
| Communication Interface | Connects FBMs to system backplane and control network |
| Diagnostics | Supports FBM self-test and fault detection |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 63.5 × 124.5 × 307 mm |
| Weight | 0.5 kg |
| Compliance | IEC standards, CE certified |
Operational Notes
The P0916PW is designed specifically as a baseplate for redundant FBM modules. Correct installation, grounding, and maintenance are required to ensure full redundancy and reliable performance. Newer Evo™ baseplates may provide enhanced diagnostic and communication capabilities.
