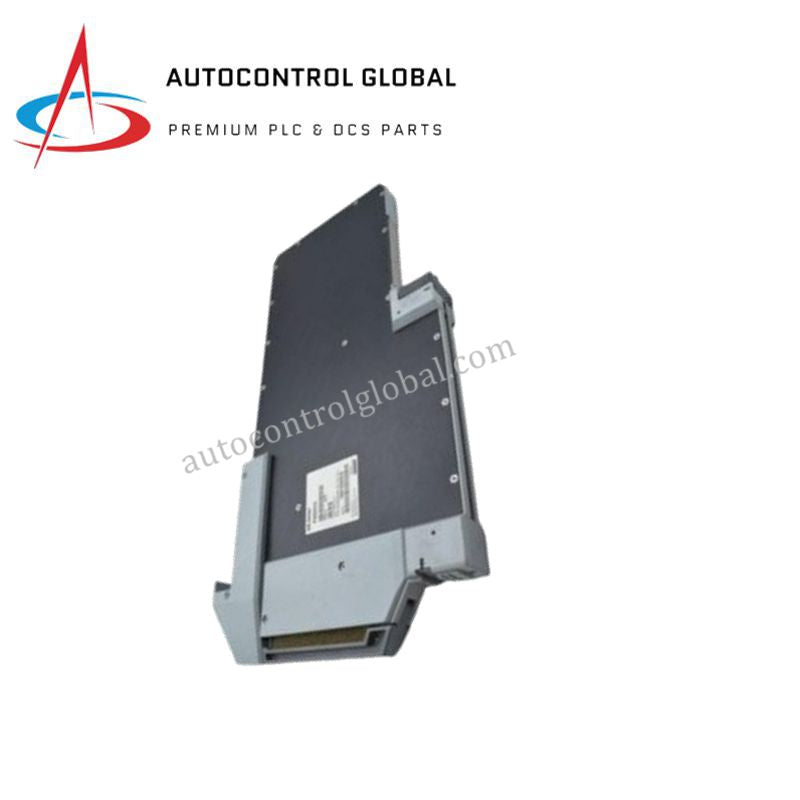

Foxboro P0960HA Evo Gateway Processor FBM Baseplate
Manufacturer: Foxboro
-
Part Number: P0960HA
Condition：New with Original Package
Product Type: Baseplate Assemblies
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

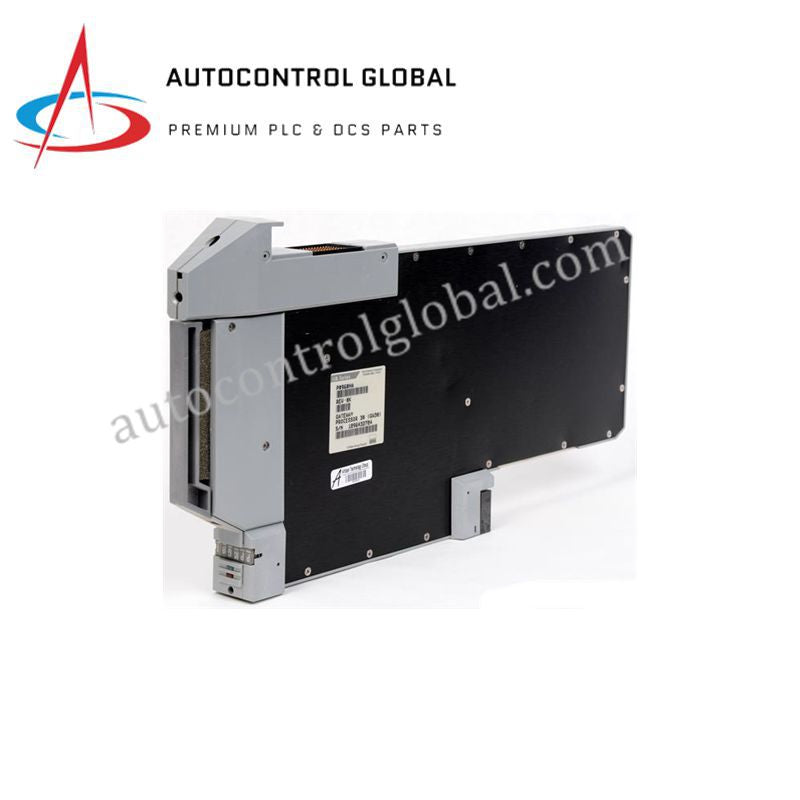

Foxboro P0960HA Gateway Processor & Redundant FBM Baseplate
The Foxboro P0960HA, also cataloged as the P0960HA Gateway Processor & Redundant FBM Baseplate, operates as a dedicated hardware component for regulated power distribution and backplane fieldbus interface management within Foxboro Evo and I/A Series control networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0960HA |
| Brand | Foxboro |
| Origin | United States |
| Weight | 0.5 kg |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Operating Temp | 0 to +60 deg C |
| Storage Temp | -40 to +85 deg C |
| Power Consumption | Standard Backplane Bus Load |
| Module Slots | Dual slots for redundant module installation |
| Supported Modules | FBM217, FBM218, FBM219 |
| Communication Interface | Redundant Module Fieldbus to System Backplane / GW30 Gateway Protocol |
4-20 mA HART Loop Protocol & Channel Isolation
The assembly establishes galvanic channel-to-system isolation barriers that segregate field instrument loop wiring from internal backplane processing logic and power distribution rails. Internal multi-layer circuit trace geometries maintain signal impedance levels, eliminating digital frequency shift keying (FSK) attenuation across 4-20 mA HART loop protocol passes. Dedicated internal bus trace routing separates primary and secondary module slots, suppressing cross-talk and preventing circulating earth ground currents across redundant fieldbus module pairs.
Frequently Asked Questions
Q: Does replacing an individual Fieldbus Module on the P0960HA interrupt communication on the adjacent slot?
A: No, individual baseplate slots feature isolated power routing and independent fieldbus bus interface connectors. Maintenance personnel can hot-swap a single module on one slot while the adjacent redundant module maintains live system backplane communication without disruption.
Q: Can single non-redundant fieldbus modules operate on the P0960HA baseplate assembly?
A: Yes, a single FBM functions correctly in either slot. However, complete fault-tolerant system execution requires populating both slots with a matched module pair.
Q: What cabinet grounding configuration prevents loop ground interference from affecting baseplate communications?
A: Connect a low-impedance copper ground strap directly from the baseplate grounding terminal to the main cabinet earth bus bar, while terminating field cable shields at a single dedicated ground point.
Field Installation Guidelines
- Mount the baseplate horizontally or vertically onto cabinet DIN rails or mounting sub-panels using dedicated mechanical fasteners.
- Connect primary DC power leads to the baseplate input terminal block, verifying correct polarity prior to energizing the bus rails.
- Secure a low-impedance copper grounding cable from the baseplate earth stud directly to the main enclosure instrument ground bar.
- Align the fieldbus module rear connectors with slot track guides and press the module inward until side retaining clips engage securely.
- Separate low-voltage field signal cabling from high-voltage AC conductors inside cabinet wiring channels, landing shield wires at a single chassis ground bar.
