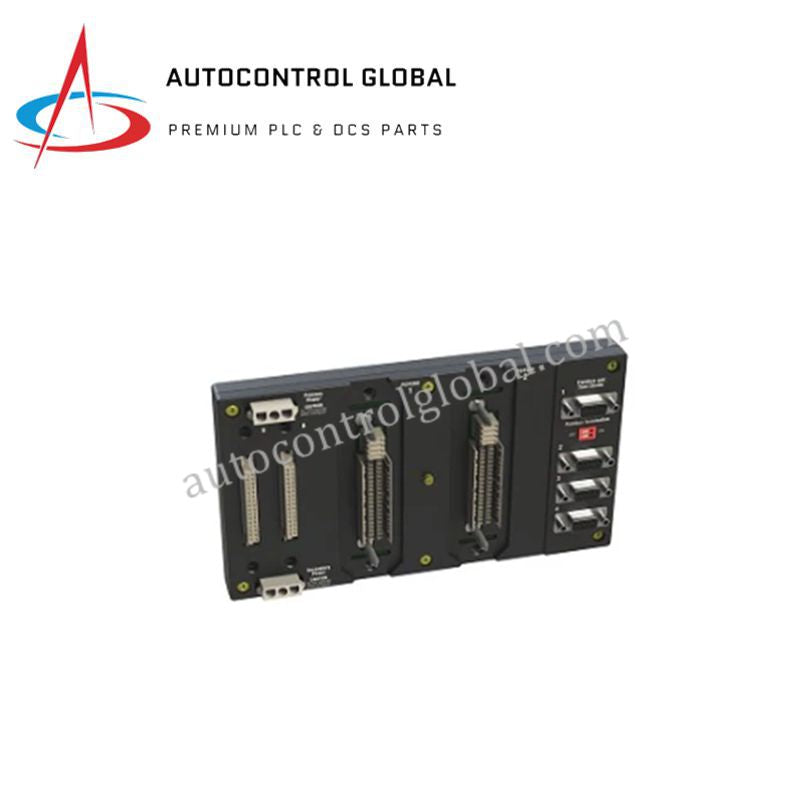

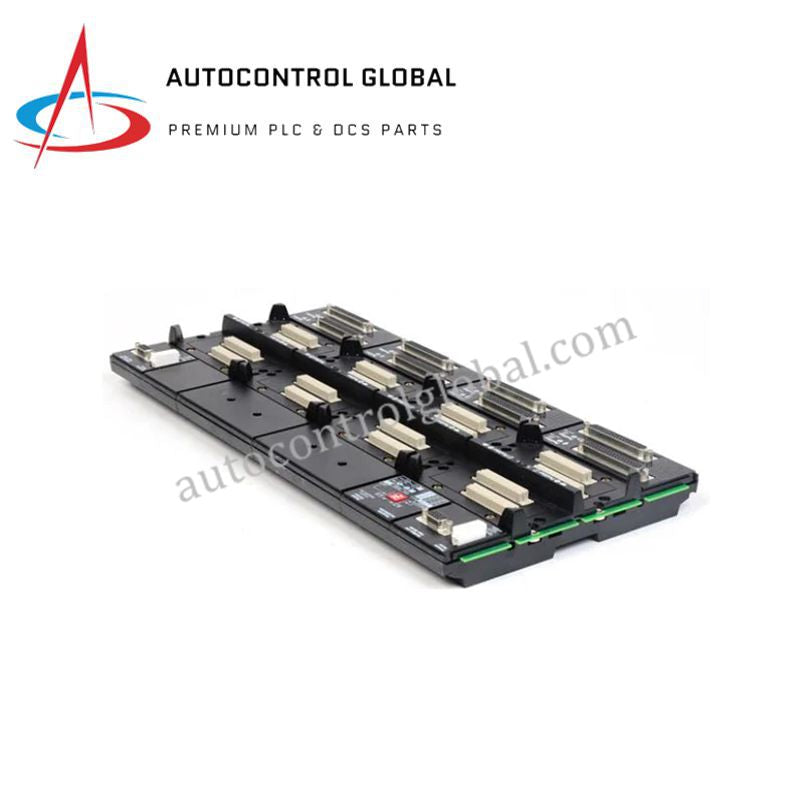

FOXBORO RH926JM | 8-Slot Vertical Modular Baseplate
Manufacturer: Foxboro
-
Part Number: RH926JM
Condition：New with Original Package
Product Type: 8-Slot Vertical Modular Baseplate
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO RH926JM | 8-Slot Vertical Modular Baseplate
Product Overview
The FOXBORO RH926JM is an industrial-grade, 8-slot vertical modular baseplate designed for the Foxboro I/A Series DCS. It provides a reliable platform for mounting and interconnecting Fieldbus Modules (FBMs), ensuring stable power distribution, redundant communication, and mechanical support.
Engineered for high availability, the RH926JM features dual 24 V DC power inputs, redundant Fieldbus interfaces, and a time strobe for coordinated control. Its rugged cast aluminum housing allows deployment in harsh industrial environments including chemical processing, power generation, metals and mining, and water treatment.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | RH926JM |
| Type | Modular baseplate for FBMs |
| Slot Capacity | 8 vertical module positions |
| Power Inputs | Dual 24 V DC (primary and secondary) |
| Fieldbus Interface | Dual Fieldbus channels for redundant communication |
| Time Synchronization | Time strobe interface for coordinated control |
| Mounting Orientation | Vertical installation |
| Housing Material | Cast aluminum; corrosion-resistant |
| Environmental Rating | Industrial-grade; suitable for harsh environments |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
FAQ
Q: How many modules can the RH926JM support?
A: The RH926JM supports 8 vertical module positions for FBMs.
Q: Can it handle redundant power and communication?
A: Yes, it has dual 24 V DC power inputs and dual Fieldbus channels for redundancy.
Q: What mounting orientation does this baseplate support?
A: The RH926JM is designed for vertical installation.
Q: Is it suitable for harsh industrial environments?
A: Yes, its cast aluminum housing and industrial-grade rating ensure durability under harsh conditions.
Q: Can additional 200 Series baseplates be added without system shutdown?
A: Yes, adding additional 200 Series baseplates is possible with a redundant bus configuration.
