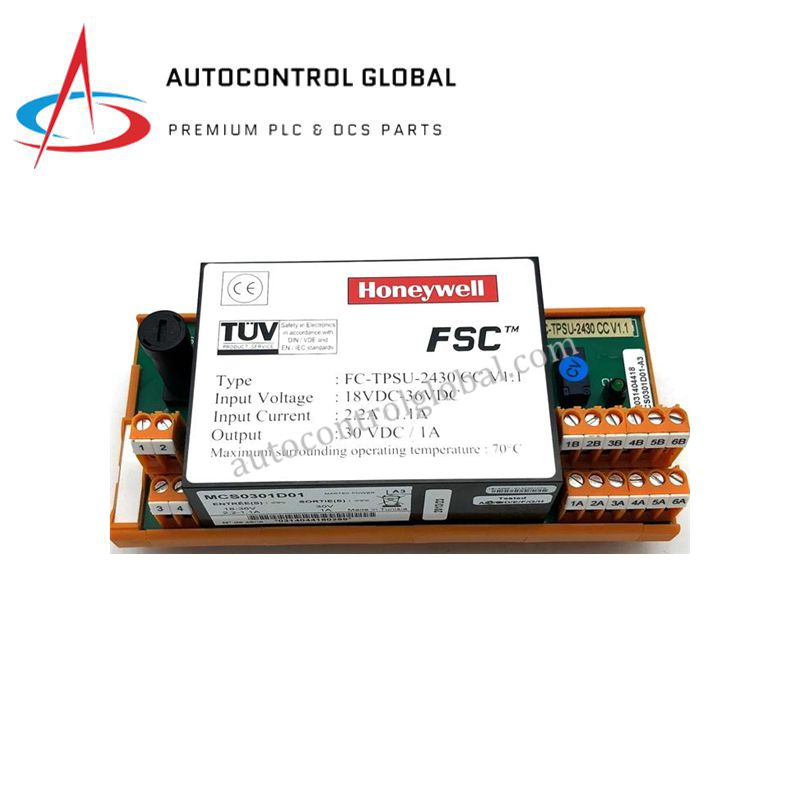

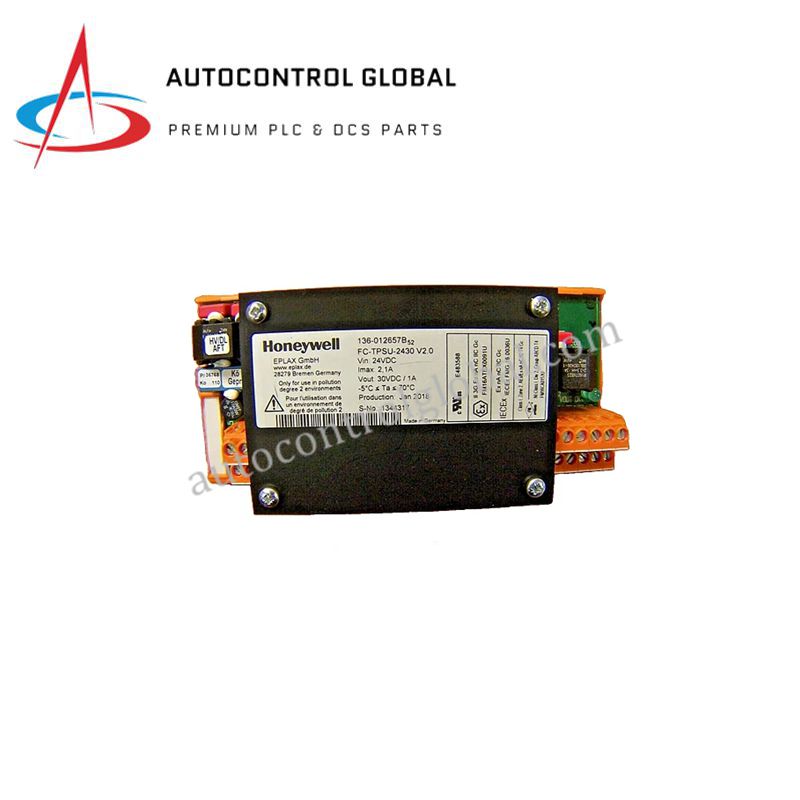

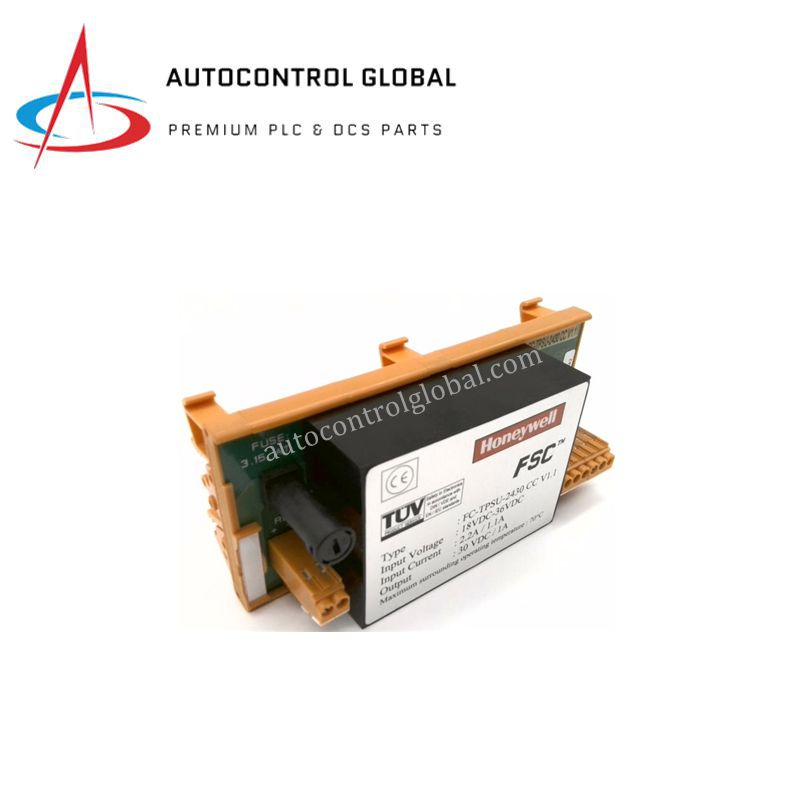

FS-TPSU-2430 by Honeywell | Industrial DC-to-DC Power Supply
Manufacturer: Honeywell
-
Part Number: FS-TPSU-2430
Condition：New with Original Package
Product Type: Industrial DC-to-DC Power Supply
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL FS-TPSU-2430 is a high-reliability 24V DC Power Supply Unit designed for Honeywell Safety Manager and Process Control Systems. It provides stable and continuous power to critical control modules, ensuring uninterrupted operation in industrial and safety-critical applications. Its fanless design and robust protections make it ideal for harsh environments while maintaining system efficiency and reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | FS-TPSU-2430 |
| Type | 24V DC Power Supply Unit |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Output Voltage | 24 VDC regulated |
| Output Current | Up to 3.0 A |
| Power Output | 72 W maximum |
| Efficiency | High efficiency for energy-saving operation |
| Protection Features | Overvoltage, overcurrent, short-circuit, thermal shutdown |
| Cooling Method | Natural convection (fanless design) |
| Indicators | LED status indicators for power and fault conditions |
| Mounting | DIN rail or panel mount |
| Operating Temperature | −20°C to +60°C |
| Humidity | 5% to 95% RH, non-condensing |
| Vibration and EMI Resistance | Industrial-grade tolerance |
| Certifications | CE marked, UL, CSA compliant, suitable for SIL-rated systems |
| Weight | 0.99 lbs (0.45 kg) |
FAQ
Q1: What is the input voltage range for FS-TPSU-2430?
A1: It accepts 100–240V AC input at 50/60 Hz for flexible industrial applications.
Q2: Can it be mounted on DIN rails?
A2: Yes, it features DIN rail and panel-mount compatibility for easy installation.
Q3: What protections does this power supply offer?
A3: It includes overvoltage, overcurrent, short-circuit, and thermal shutdown protection.
Q4: What is the maximum output current?
A4: The module delivers up to 3.0 A with regulated 24 VDC output.
Q5: Is the FS-TPSU-2430 suitable for SIL-rated systems?
A5: Yes, it is CE marked, UL and CSA compliant, and designed for safety-critical environments.
