FS-TSGAS-1624 Honeywell FSC Digital Input Assembly

Honeywell FS-TSGAS-1624 Digital Input Field Termination Assembly

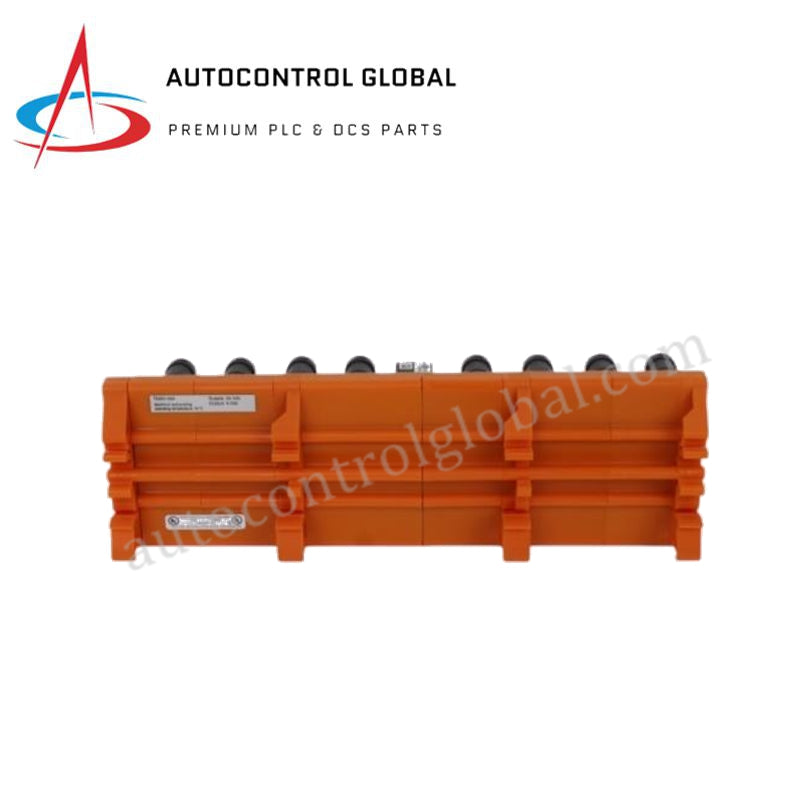

Configured for fail-safe gas and flame detector signal processing in Honeywell FSC safety systems, the Honeywell FS-TSGAS-1624 (FS-TSGAS-1624 Digital Input Field Termination Assembly) provides direct physical/electrical execution. This assembly routes field instrumentation signals directly to safety controller analog modules while delivering regulated 24 VDC power distribution. The unit conditions incoming current loops through precision resistance networks, transforming raw 0-20 mA field inputs into normalized voltage signals. Integrated fuse networks safeguard individual channels against fault conditions. DIN rail mounting geometry enables rapid field panel installation. Standard screw terminal arrays facilitate field cable termination, shield grounding, and power loop distribution across industrial processing plants.

Hardware Specifications

Functional Safety & Galvanic Isolation Integrity

Safety-instrumented systems (SIS) demand rigorous electrical separation and deterministic state execution to maintain high loop integrity. The FS-TSGAS-1624 operates within SIL3-rated Honeywell FSC architectures, serving as an intermediate termination interface between hazardous field locations and central safety processors. The board features dedicated channel-level galvanic isolation and individual fusing to restrict electrical fault propagation. If a field loop experiences an overcurrent or short-circuit condition, the corresponding 500 mA slow-acting fuse opens immediately, isolating the affected circuit while maintaining continuous operation across adjacent channels. This channel isolation prevents field faults from compromising central controller backplane stability or driving unpredicted system trips, supporting fail-safe state execution under adverse electrical conditions.

Frequently Asked Questions

Q: How does the assembly handle short-circuit conditions on individual loop power lines?

A: Each field channel incorporates an independent 500 mA slow-acting fuse rated for 250 VAC / 300 VDC. An overcurrent event on a single instrument loop clears the specific channel fuse without disturbing power delivery or signal acquisition on the remaining 15 channels.

Q: Can maintenance personnel replace individual channel fuses while the unit remains powered?

A: Technicians can replace individual 5 x 20 mm fuses after isolating the specific channel field wiring. However, field safety procedures dictate verifying loop current and voltage levels with an approved meter prior to fuse removal to prevent localized arc discharge or unexpected trip generation.

Q: What impact does field cable resistance have on signal conversion accuracy?

A: The board converts 0-20 mA current signals through internal 500 ohm precision resistors into a 0-4 VDC range with 0.1% accuracy. Because the primary signal transmission relies on current loops rather than voltage drop, standard field cable resistance does not degrade signal accuracy prior to the termination resistors.

Field Installation Guidelines

Mount the assembly securely onto a standard TS32 or TS35 x 7.5 mm DIN rail, ensuring a minimum rail length of 226 mm for stable mechanical support. Fasten end anchors at both sides of the baseplate to prevent lateral movement along the DIN rail during vibration exposure.

Route incoming field cables through dedicated wire troughs, maintaining physical separation between high-voltage power lines and low-voltage signal conductors. Strip field wire insulation to 7 mm and insert conductors into the terminal blocks, tightening the screw terminals to a maximum torque of 0.5 Nm. Ensure wire gauges do not exceed 2.5 mm2 (AWG 14).

Connect cable shield wires directly to the designated grounding terminals on the assembly. Land the shield drain wires at a single point—typically at the field termination assembly grounding bar—to prevent ground loops from corrupting the 0-20 mA analog signals. Verify that the system 0 V reference line connects solidly to the primary panel earth bus bar before energizing the 24 VDC external power supply.
