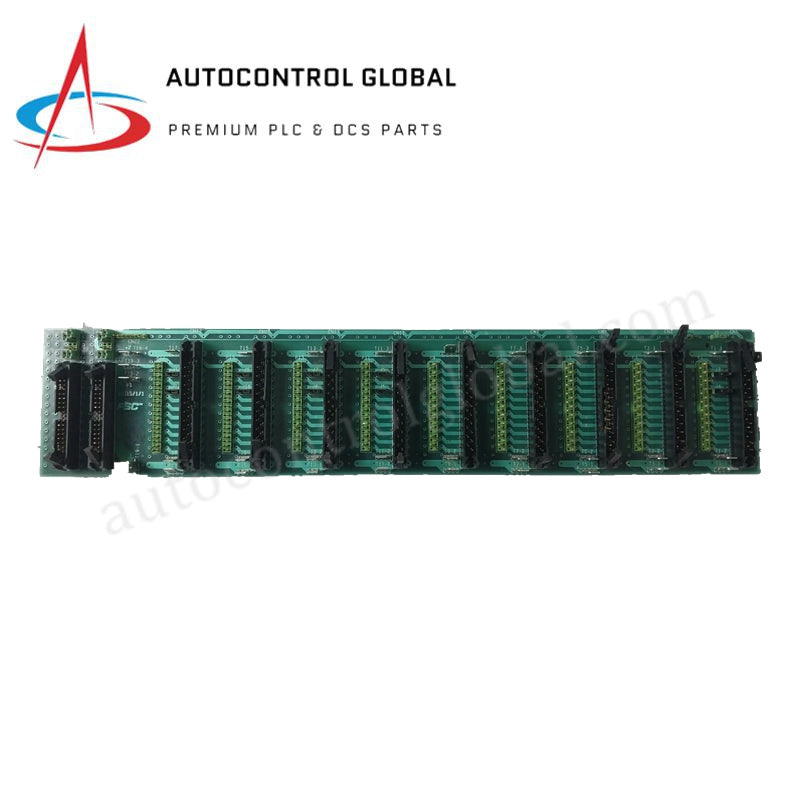

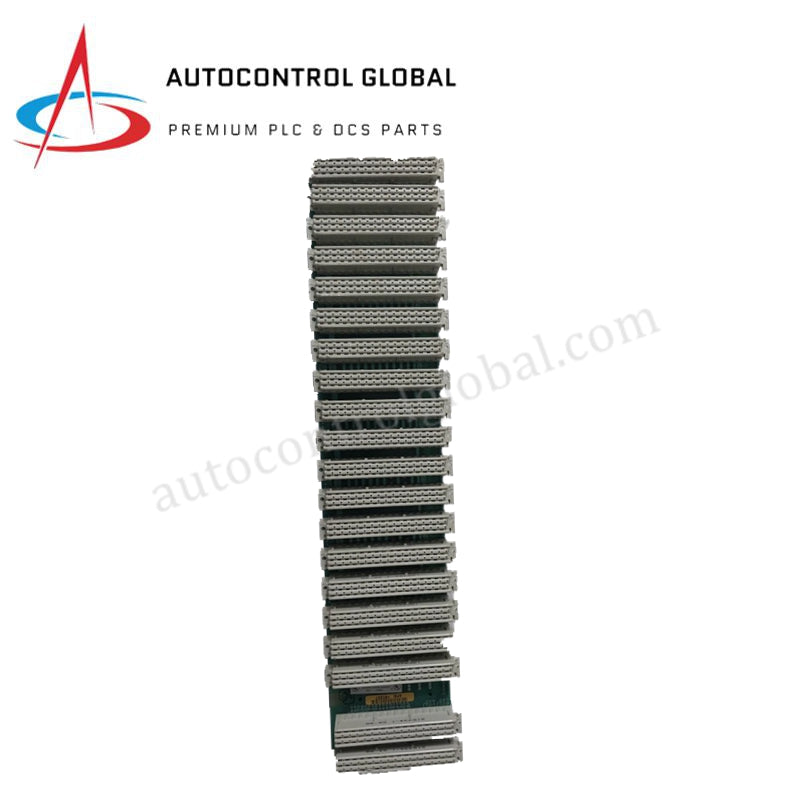

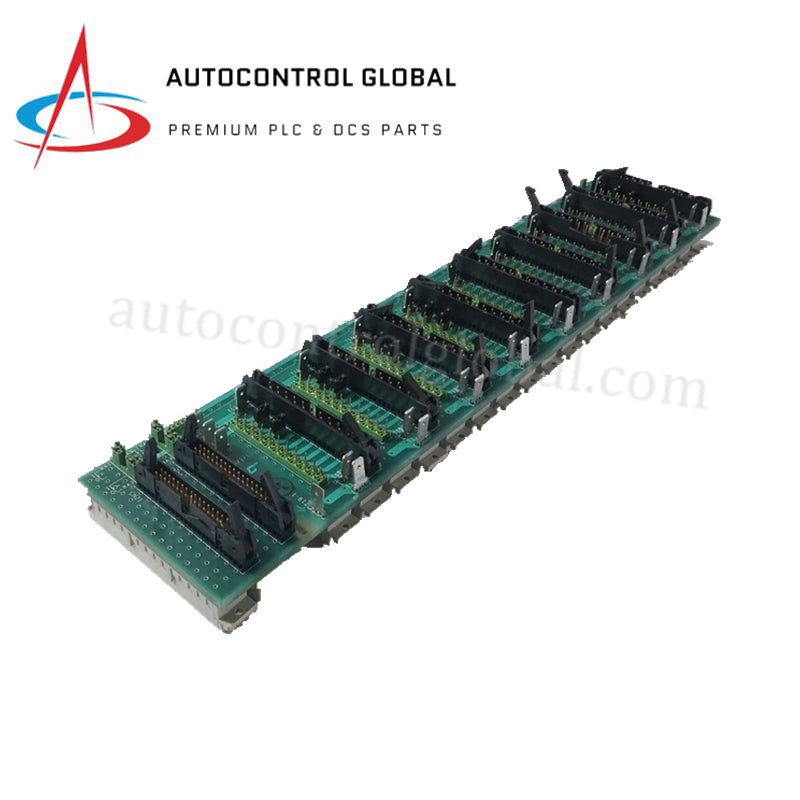

Honeywell 10315/1/1 19-Inch Redundant Processor Rack Chassis FSC Backplane

Product Description

The 10315/1/1 (10315/1/1) is a high-integrity redundant processor rack chassis specifically engineered for the Honeywell Fail-Safe Controller (FSC) system. This 19-inch backplane serves as the primary structural and electrical foundation for Honeywell’s safety-instrumented systems, providing the high-speed communication bus and power distribution necessary for redundant processor modules and I/O integration. The 10315/1/1 (10315/1/1) is designed to support "Hot Standby" configurations, ensuring that control logic remains uninterrupted even if a primary processor fails.

Constructed from chrome-plated steel to resist corrosion and mechanical stress, the 10315/1/1 (10315/1/1) architecture supports up to 18 I/O modules in a single 3U (HE) rack space. Its backplane is optimized for low-impedance power delivery and high-signal integrity, which is critical for deterministic safety functions in high-risk industries. This chassis is a standard requirement for centralized safety control in oil and gas refineries, chemical processing plants, and large-scale power generation facilities where 24/7 uptime is mandatory for life-safety systems.

Detailed Technical Specifications

The 10315/1/1 (10315/1/1) provides a robust mounting and communication environment for FSC modules:

• Manufacturer: Honeywell

• Model Number: 10315/1/1

• Product Type: Redundant Processor Rack Chassis / I/O Backplane

• System Compatibility: Honeywell FSC (Fail-Safe Controller) & DCS Systems

• Module Capacity: Supports up to 18 standard I/O modules

• Physical Standard: 19-inch Rack-mount, 84 TE (Total Energy width)

• Rack Height: 3 HE (3U) / 84 HP (Horizontal Pitch)

• Material Construction: Heavy-duty Chrome-plated Steel

• Input Voltage: 24 V DC (System backplane power)

• Redundancy Support: Full hardware redundancy for processors and power supply units

• Dimensions: 482.6 mm x 450 mm x 133.3 mm (Standard 19" x 17.7" x 3U)

• Standard Weight: 5.8 kg (Empty chassis)

• Load Rating: Supports up to 27 kg (60 lbs) fully populated

• Operating Environment: Industrial-grade (designed for cabinet installation)

• Certifications: TÜV (SIL 3), CE, UL, FCC, RoHS

• Country of Origin: USA / China (Batch specific)
