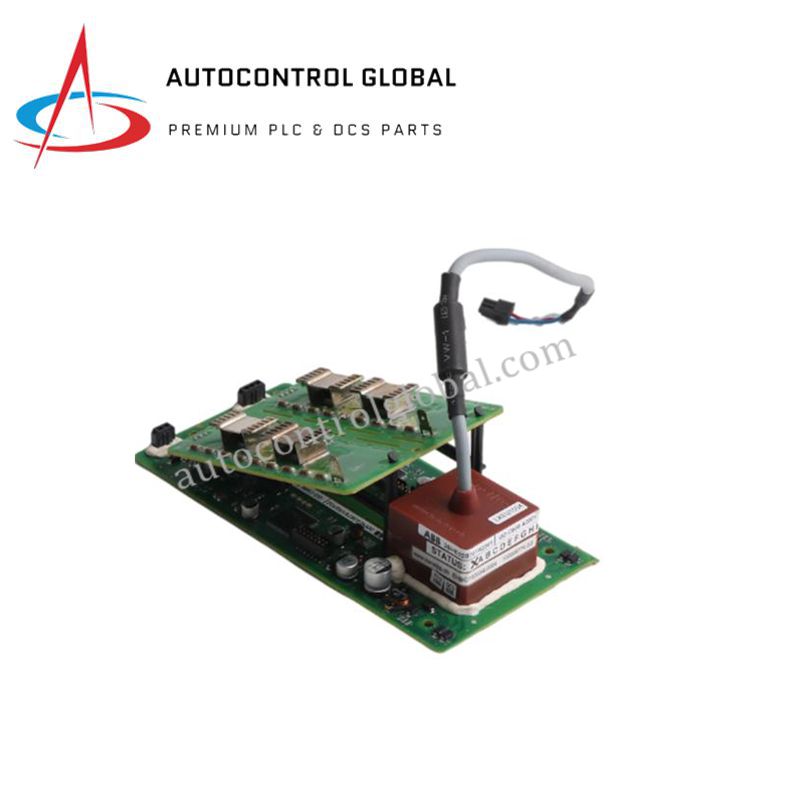

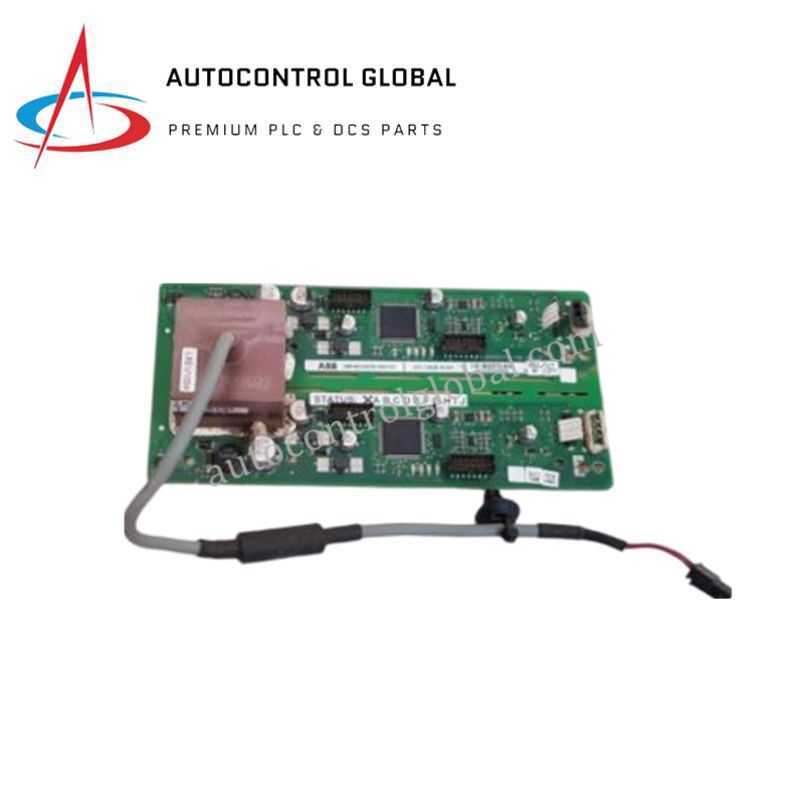

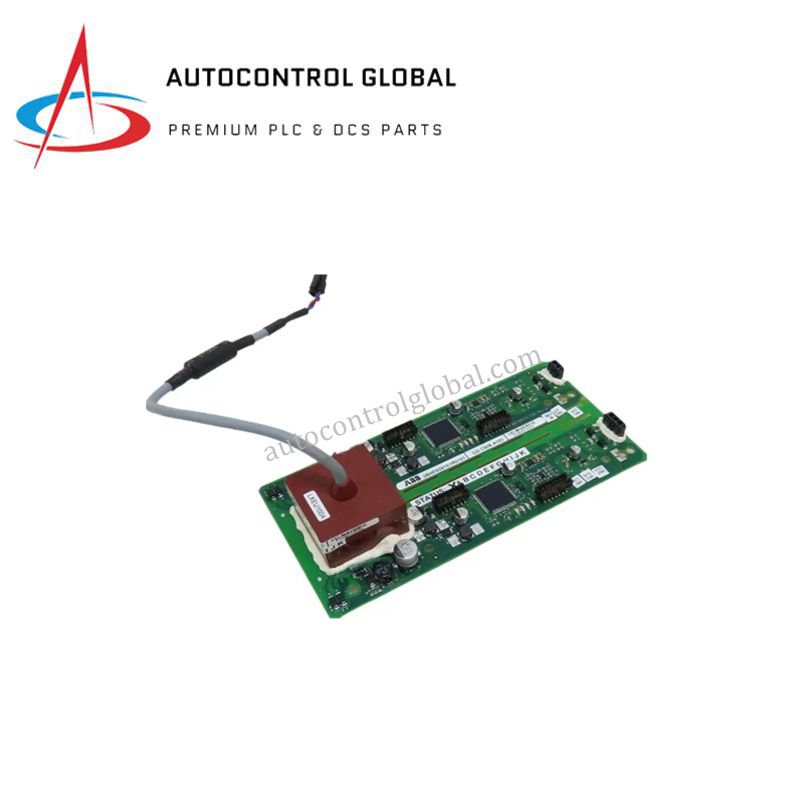

GDC806A1001 by ABB | Industrial Processor Module 3BHE028761R1001
Manufacturer: ABB
-
Part Number: GDC806A1001 3BHE028761R1001
Condition：New with Original Package
Product Type: Industrial Processor Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB GDC806A1001 | Processor Module 3BHE028761R1001
Product Description
The ABB GDC806A1001 (3BHE028761R1001) is a communication processor module designed for ABB’s System 800xA and other distributed control systems (DCS).
It functions as both a gate driver and communication interface, ensuring fast and reliable data transmission between field devices and control processors.
This module integrates an Intel Atom E3845 Quad-Core processor running at 1.92 GHz, delivering high computing efficiency for control and monitoring tasks.
With its compact 120 × 100 × 25 mm form factor and rugged construction, it performs reliably in demanding industrial automation environments such as power generation, oil & gas, and manufacturing systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | GDC806A1001 |
| Part Number | 3BHE028761R1001 |
| Product Type | Processor Module / Gate Driver |
| Processor | Intel Atom E3845 Quad-Core |
| Operating Frequency | 1.92 GHz |
| Memory | 2 GB DDR3 SDRAM |
| Primary Function | Communication and gate signal control for IGBTs |
| Compatible Systems | ABB Ability™ System 800xA, ACS 2000 Drives |
| Dimensions (L × W × H) | 120 mm × 100 mm × 25 mm |
| Weight | 0.35 kg |
| Operating Temperature | 0°C to +60°C |
| Mounting Type | DIN rail |
| Power Input | 24 VDC |
| Certifications | CE, UL, RoHS |
| Country of Origin | Switzerland |
FAQ
Q1: Is the ABB GDC806A1001 module new and genuine?
A1: Yes, the ABB GDC806A1001 3BHE028761R1001 is brand new, factory-sealed, and 100% original.
Q2: What systems can this module work with?
A2: It is primarily designed for ABB System 800xA and ACS 2000 medium-voltage drive systems.
Q3: What is the processor configuration?
A3: It uses an Intel Atom E3845 Quad-Core CPU operating at 1.92 GHz with 2 GB DDR3 memory.
Q4: How soon can it be shipped?
A4: We maintain ready stock, shipping within 3–14 days via DHL, FedEx, or UPS, depending on order size.
Q5: What warranty and support are provided?
A5: All items come with a 12-month warranty, and returns within 30 days are accepted for any quality issues.
