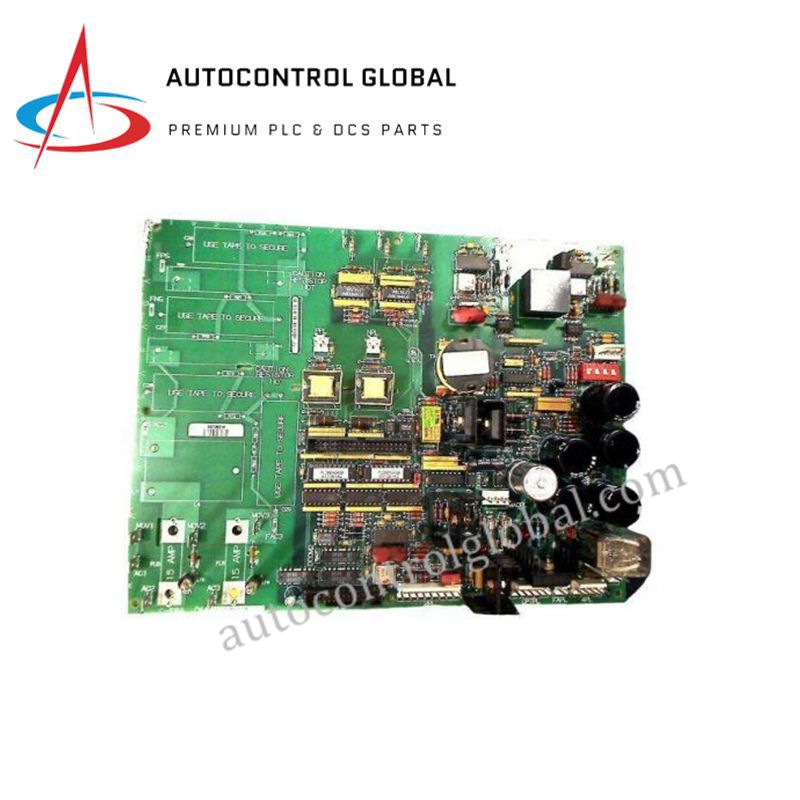

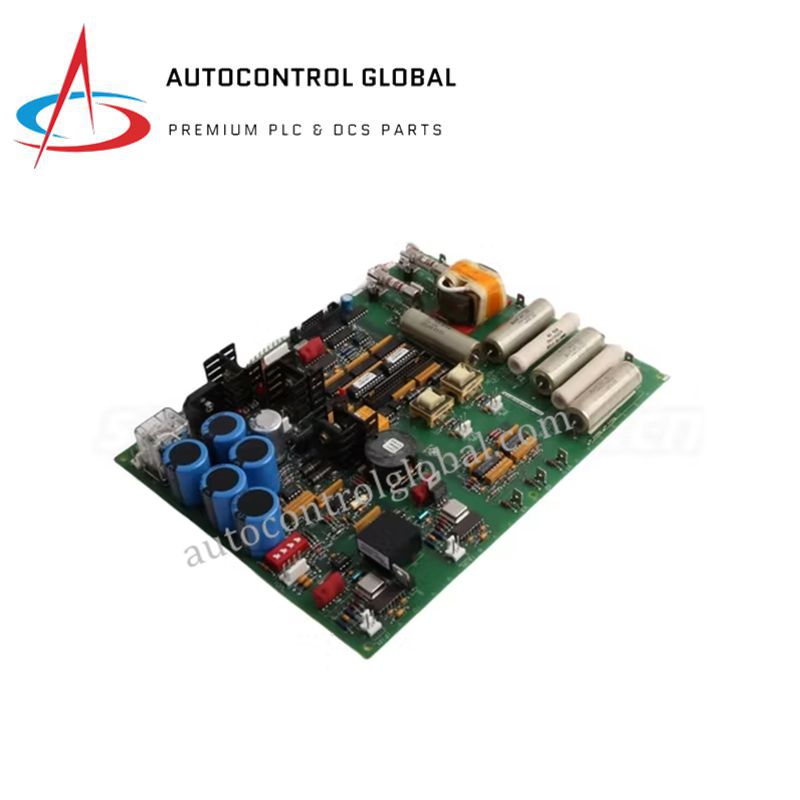

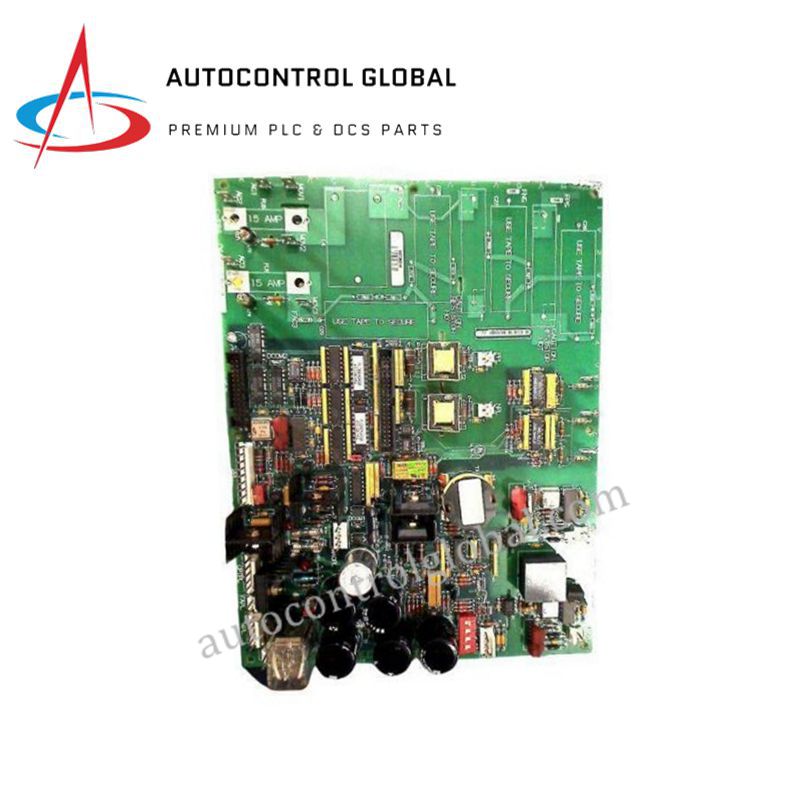

GE DS200SDCIG2AGB | High-Reliability DC Supply & Instrumentation PCB

Product Description

The GE DS200SDCIG2AGB is a high-performance DC power supply and instrumentation board designed for industrial turbine control applications. It delivers stable DC power to logic circuits while simultaneously monitoring AC line signals for precise control and diagnostics. Moreover, the AGB revision enhances reliability and performance over earlier models, providing improved durability in vibration-prone and electrically noisy environments. In addition, the board’s lightweight design and compact footprint make it easy to integrate directly into Mark V turbine control systems or GE DC2000 drives. With robust environmental protection, including standard PCB coating, the DS200SDCIG2AGB ensures consistent performance under dust, moisture, and industrial stress conditions.

Technical Specifications

Manufacturer: General Electric (GE)
Model Number: DS200SDCIG2AGB
Series: Mark V DS200 Turbine Control System
Functional Acronym: SDCI
Product Type: DC Power Supply & Instrumentation PCB

Input Voltage Range: 110–380 V
Current Range: 1–30 A
Power Output: 5–130 W
Control Functions: Supplies logic-level DC power and monitors AC line instrumentation
Dimensions: 8.2 cm × 12.2 cm × 6 cm
Weight: 0.36 kg
PCB Coating: Standard protective coating
Revision: AGB, includes three major updates over earlier DS200SDCIG2 version
Durability: Resistant to vibration, electrical noise, dust, and moisture

FAQ

Q: What systems is the DS200SDCIG2AGB compatible with?
It interfaces directly with GE DC2000 drives and Mark V turbine control systems.

Q: What is the input voltage range?
The board operates on 110–380 V AC or DC input.

Q: What improvements does the AGB revision include?
The AGB version provides enhanced reliability, performance, and durability over prior models.

Q: Can this board withstand harsh industrial conditions?
Yes, it is designed to resist vibration, electrical noise, dust, and moisture.

Q: How do I verify the board received is correct?
Check that the model number on the package matches the model number printed on the PCB edge.
