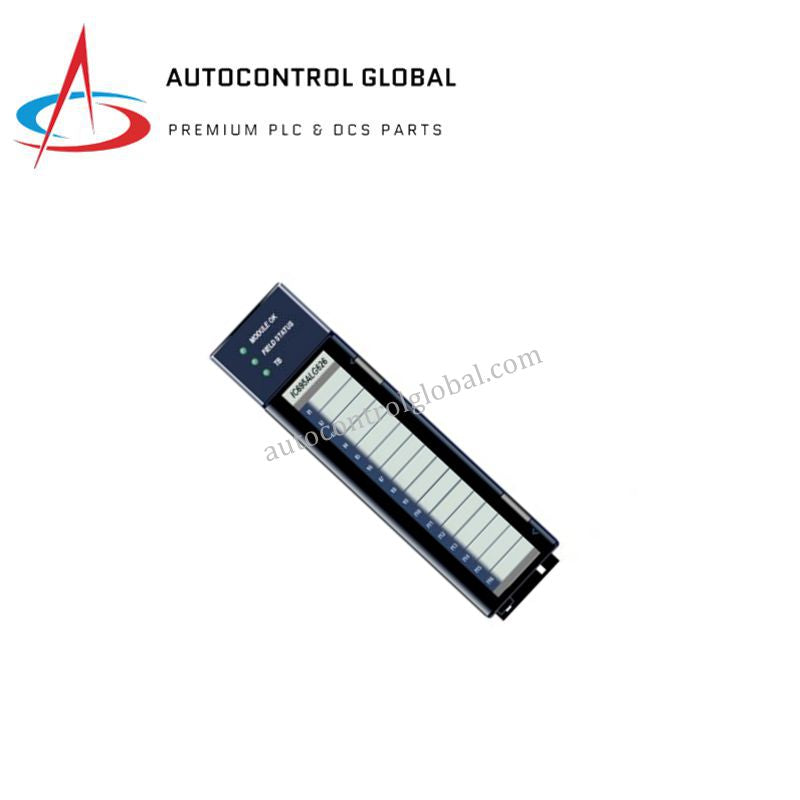

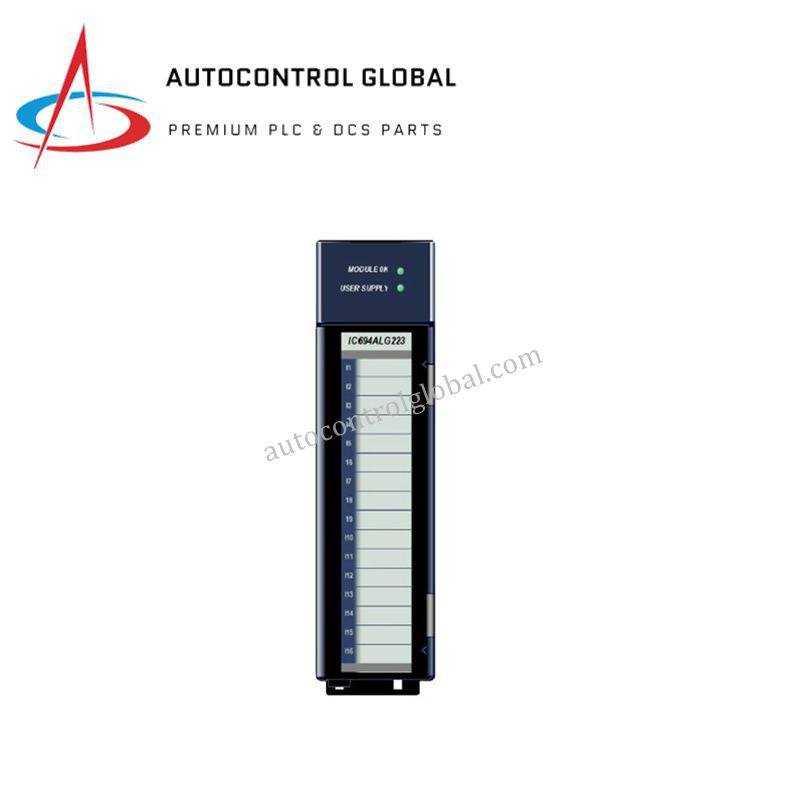

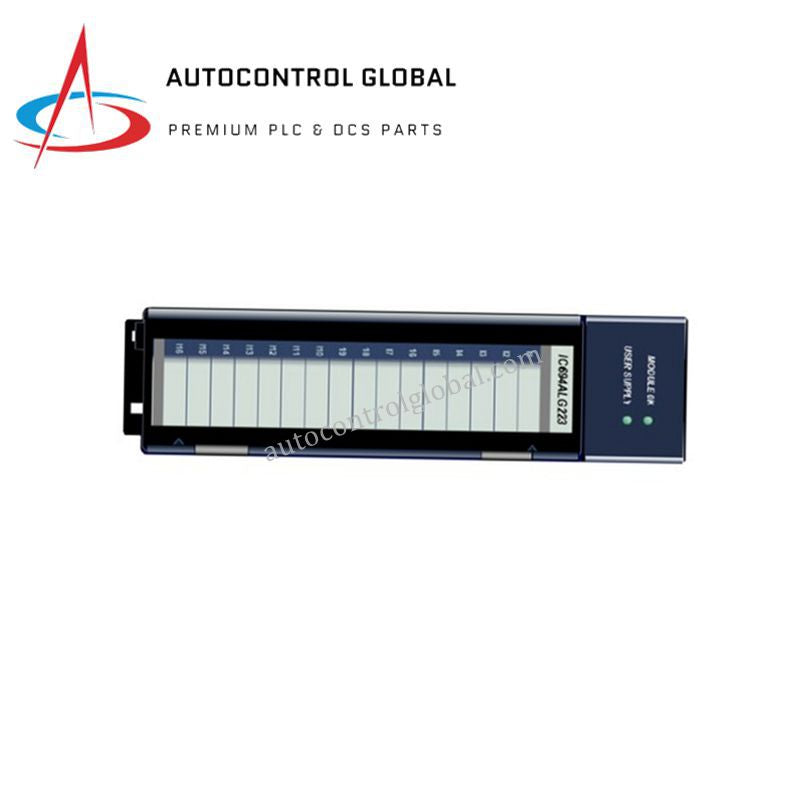

GE Fanuc Emerson IC694ALG223DB 16-Channel Analog Input Module

The GE Fanuc / Emerson IC694ALG223DB is a high-performance analog input module designed for PACSystems RX3i platforms. It converts industrial current signals into stable digital values, supporting transmitters used for flow, temperature, pressure, and other critical measurements. Moreover, the module offers enhanced 4–20 mA capability, allowing engineers to detect open-wire faults before they affect plant operations. Therefore, it provides reliable data acquisition for demanding process and factory automation tasks.

Its hot-swappable construction keeps production running because technicians can replace the module without shutting down the system. In addition, the module includes extensive certifications, making it suitable for hazardous and marine applications where compliance is essential. For instance, offshore facilities and chemical plants often choose this model for its diagnostic depth and long-term stability.

Technical Specifications

Input Channels
• 16 single-ended current input channels
• Configurable ranges: 0–20 mA, 4–20 mA, enhanced 4–20 mA

Resolution & Performance
• 12-bit signal resolution
• Conversion time: ~13 ms per channel

Accuracy & Repeatability
• Typical accuracy: ±0.1% of full scale
• Repeatability: ±0.05% of span

Diagnostics & Monitoring
• Open-wire detection in enhanced 4–20 mA mode
• High/low alarm limit configuration
• Reports module and external supply status to CPU

Power Requirements
• 120 mA @ 5 VDC (backplane)
• 65 mA @ 24 VDC (isolated field supply)

Isolation & Safety
• Optical isolation between field and logic circuits
• Suitable for Zone 2 hazardous locations

Certifications
• UL, UL HAZLOC, CE, ATEX C1D2
• Marine approvals: ABS, BV, DNV, GL, KRS, LR

Physical Specifications
• Dimensions: 1.3 × 5.0 × 5.0 inches
• Weight: 0.57 kg
• RX3i rack-mount module, hot-swappable

Environmental Ratings
• Operating: –20 °C to +60 °C
• Storage: –40 °C to +85 °C
• Humidity: 5–95% non-condensing

FAQ

Q1: What makes the IC694ALG223DB different from other RX3i analog modules?
It provides enhanced 4–20 mA diagnostics and high-density channel capacity in a hot-swappable form.

Q2: Does the module support hazardous-area installations?
Yes, it meets UL HAZLOC and ATEX C1D2 requirements for Zone 2 environments.

Q3: Can I mix different current ranges across channels?
Yes, each channel can be configured independently based on the application.

Q4: Is the module suitable for marine automation systems?
Yes, it carries multiple marine certifications including ABS, DNV, and BV.

Q5: What tools are required for configuration?
Configuration is performed through the PACSystems RX3i CPU using standard engineering software.
