GE Fanuc 90-30 IC693MDL640 | 16-Channel 24V DC Input

Product Overview

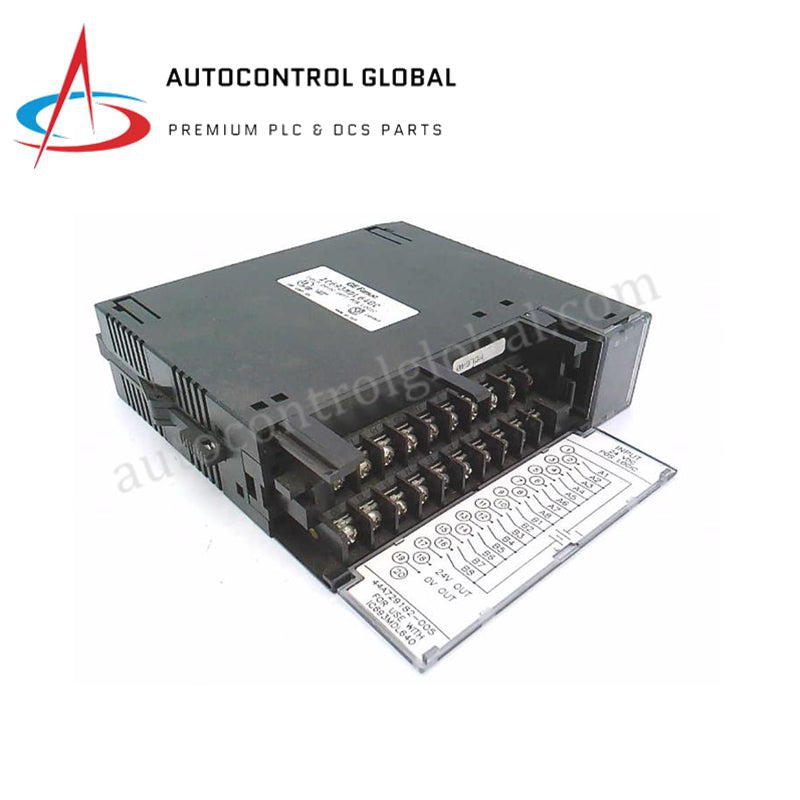

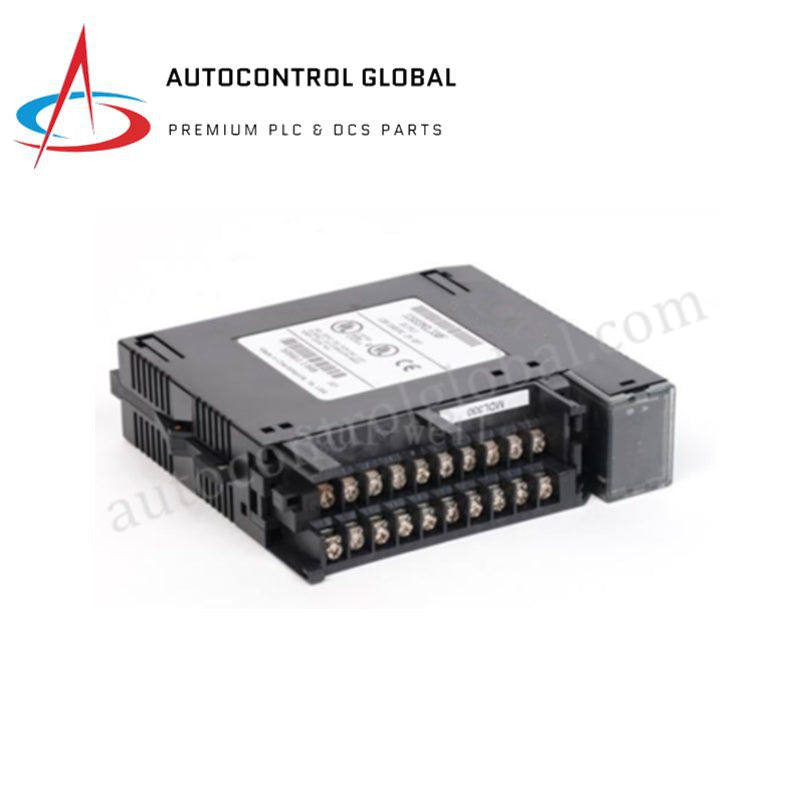

The GE Fanuc IC693MDL640 serves as a high-performance discrete input interface for the Series 90-30 PLC system. This 100% Brand New original module features 16 input points designed for 24V DC positive logic (sourcing) applications. It enables the PLC to monitor real-time digital signals from field devices such as limit switches, proximity sensors, and pushbuttons. By utilizing a compact, single-slot design, the IC693MDL640 provides efficient I/O density while ensuring rugged electrical isolation between field-side wiring and the sensitive internal PLC backplane logic.

Technical Specifications

Engineering Advantages

• Positive Logic Standardization: The IC693MDL640 utilizes positive logic, making it compatible with the majority of standard industrial sourcing sensors. This standardization simplifies wiring schematics and reduces the risk of commissioning errors in high-density control cabinets.

• Superior Noise Suppression: The module incorporates internal RC filtering on each input point. This hardware-level filtering rejects high-frequency noise and contact bounce, ensuring the PLC CPU receives clean, stable signals even in electrically noisy environments near large motors or contactors.

• Enhanced System Protection: Optical isolation (up to 1500V) separates the field power from the PLC backplane. This barrier prevents voltage surges or ground faults in the field from damaging the CPU or adjacent modules, significantly increasing the overall MTBF (Mean Time Between Failures) of the system.

• Rapid Visual Diagnostics: 16 dedicated green LED indicators on the front faceplate display the ON/OFF status of every point. This allows maintenance teams to verify signal activity at the rack level without needing a laptop or specialized diagnostic software, drastically reducing downtime during troubleshooting.

• Low Thermal Signature: Drawing only 80mA from the backplane, the module maintains a low operating temperature. This thermal efficiency allows for dense module stacking within the rack without requiring specialized active cooling in most standard industrial enclosures.

FAQs

• What is the difference between "Positive Logic" and "Negative Logic" for this module?

  The IC693MDL640 is a Positive Logic (Sinking) module, meaning it requires the field device to "source" current (connect to the positive terminal) to the module. If your sensors "sink" current to ground (Negative Logic), you would require a different module, such as the IC693MDL641.

• Does this module support hot-swapping?

  No. You must power down the Series 90-30 rack before removing or installing the IC693MDL640. Inserting modules into an energized backplane can cause permanent electrical damage to the module’s bus interface.

• Can I use 12V DC signals with the IC693MDL640?

  While designed for 24V DC, the module has a specific "On-state" voltage threshold. We recommend maintaining the nominal 24V DC level to ensure reliable switching and to prevent "flickering" or missed triggers in the logic sequence.
