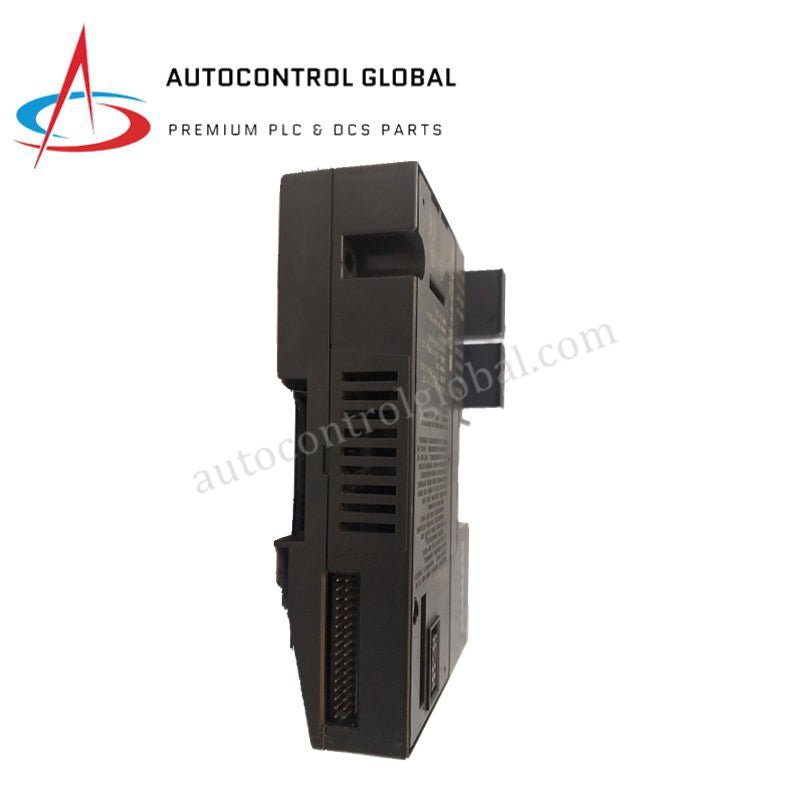

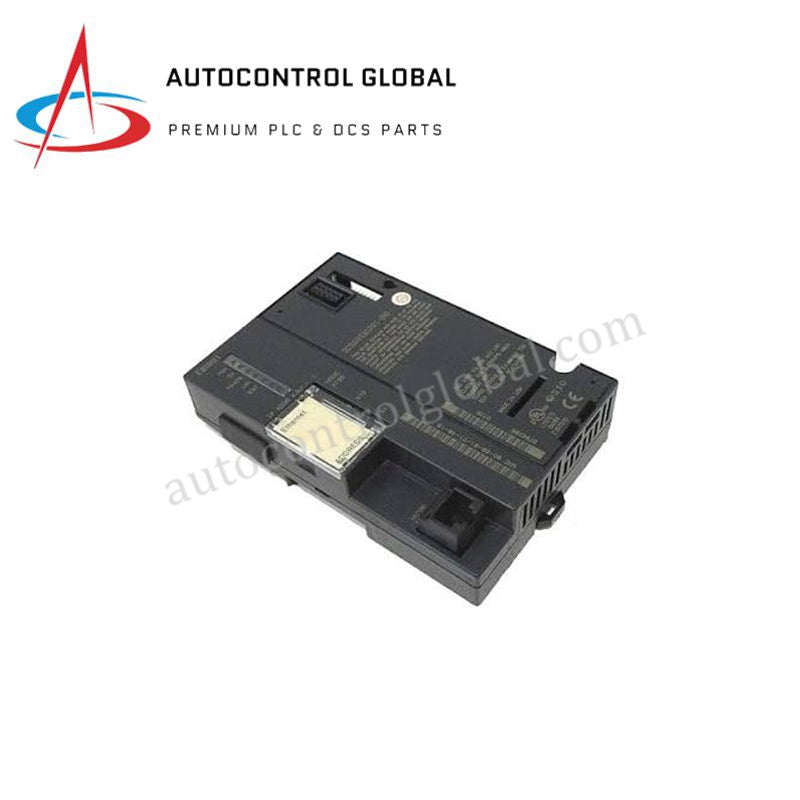

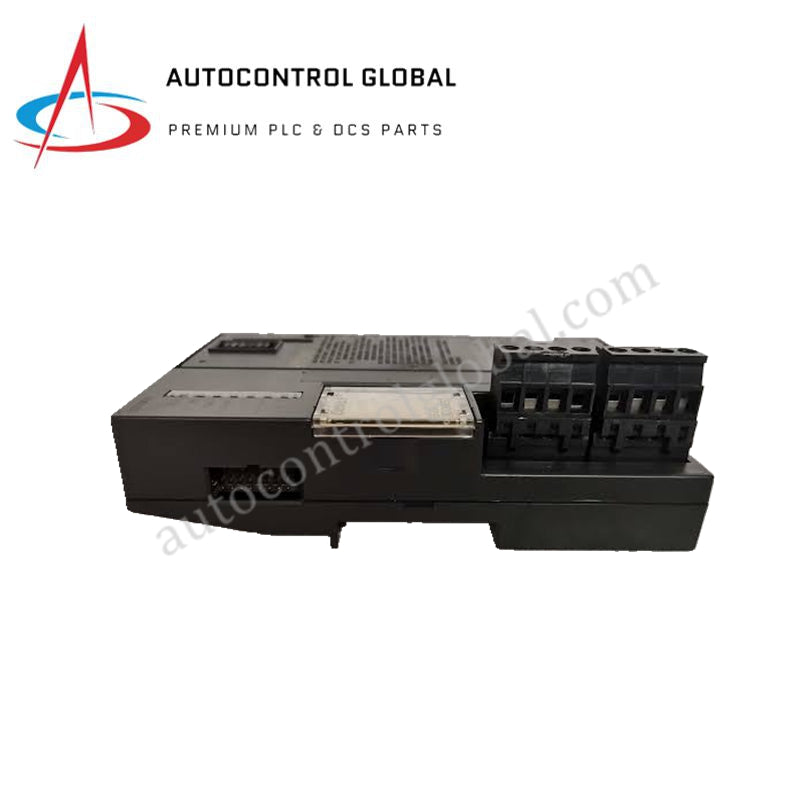

GE Fanuc IC200GBI001-LL VersaMax Genius Bus Interface Module
Manufacturer: GE Fanuc
-
Part Number: IC200GBI001-LL
Condition：New with Original Package
Product Type: Bus Interface Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC200GBI001-LL VersaMax Genius Network Interface Module
Configured for distributed control architecture in Genius I/O network networks, the GE Fanuc IC200GBI001-LL (IC200GBI001 Genius Network Interface Unit) provides direct physical/electrical execution. The hardware links up to eight VersaMax I/O station racks directly to Genius serial bus networks to execute discrete and analog data exchange with host controllers.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200GBI001-LL |
| Brand | GE Fanuc |
| Origin | Japan |
| Weight | 0.17 kg (0.38 lbs) |
| Dimensions | 120 mm x 90 mm x 40 mm |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | 250 mA @ 5 VDC, 10 mA @ 3.3 VDC (~200 mA typical @ 5 VDC) |
| Communication Ports | Two (2) Genius terminals |
| Transmission Rates | 153.6 kbaud (extended); 153.6 kbaud, 76.8 kbaud, 38.4 kbaud (standard) |
| Serial Bus Address Range | 0 to 31 |
| Maximum I/O Capacity | 1024 discrete inputs, 1024 discrete outputs, 128 bytes analog I/O |
| Bus Scan Capacity | 128 bytes input / 128 bytes output per bus scan |
| Network Topology | Daisy-chain |
| Selectable Termination | 75, 100, 120, or 150 ohms |
| Compatible Controllers | Series 90-70, PACSystems RX3i, PACSystems RX7i |
| Status LEDs | PWR, OK, FAULTS, I/O ENBL, FORCE, SBA ERR, BUS B |
Backplane Bus Communication Velocity & Firmware Flash Integration
The interface module governs backplane bus communication velocity across connected VersaMax I/O carriers, streaming 128 bytes of input and output data per bus scan to host PACSystems and Series 90-70 processors. High-speed hardware execution combined with firmware flash compatibility allows deterministic synchronization between remote rack slots and the primary system logic.
Frequently Asked Questions
Q: How is physical line termination enabled on the Genius serial bus cable?
A: The module includes selectable termination resistors (75, 100, 120, or 150 ohms) to match cable impedance and prevent signal reflections across the daisy-chain network.
Q: What are the backplane power supply loads for this interface unit?
A: Logic circuits draw 250 mA max from the +5 VDC backplane rail along with 10 mA from the +3.3 VDC rail.
Q: How many local I/O modules and remote racks can a single network unit support?
A: A single unit manages up to 8 local modules per rack and scales across a maximum network density of 8 expansion racks.
Field Installation Guidelines
- Mount the module securely onto a standard 35 mm DIN rail or panel subplate using the primary slot of a VersaMax carrier base.
- Wire the dual Genius terminals using approved shielded twisted-pair cables arranged strictly in a daisy-chain topology.
- Connect all cable shield drain wires to a dedicated earth ground terminal at the cabinet entry point to ensure optical isolation and noise suppression.
- Verify that the serial bus address (0 to 31) and network transmission rate match the host configuration parameters before powering the rack.
