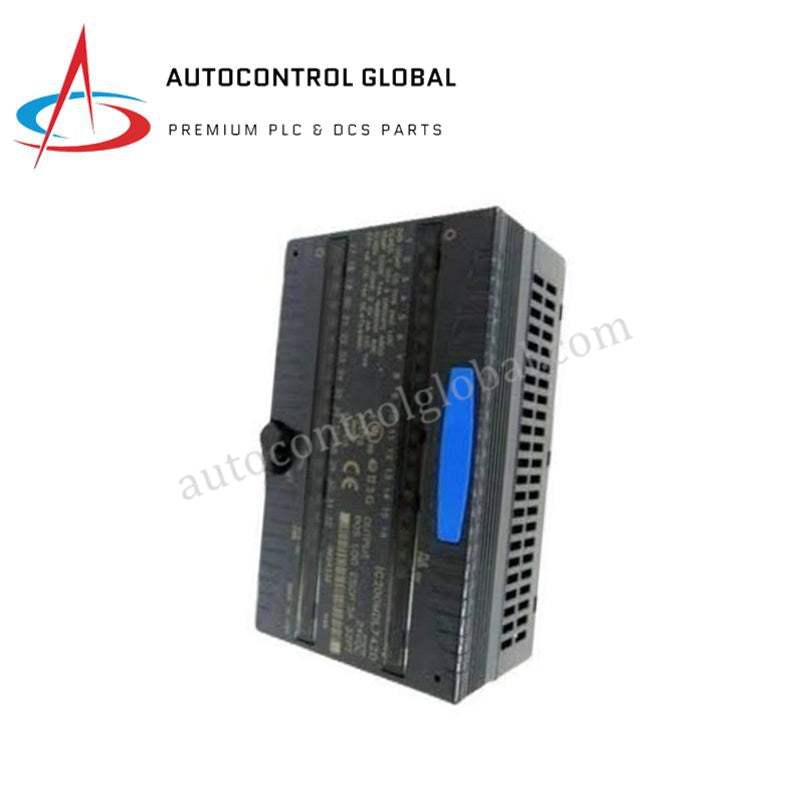

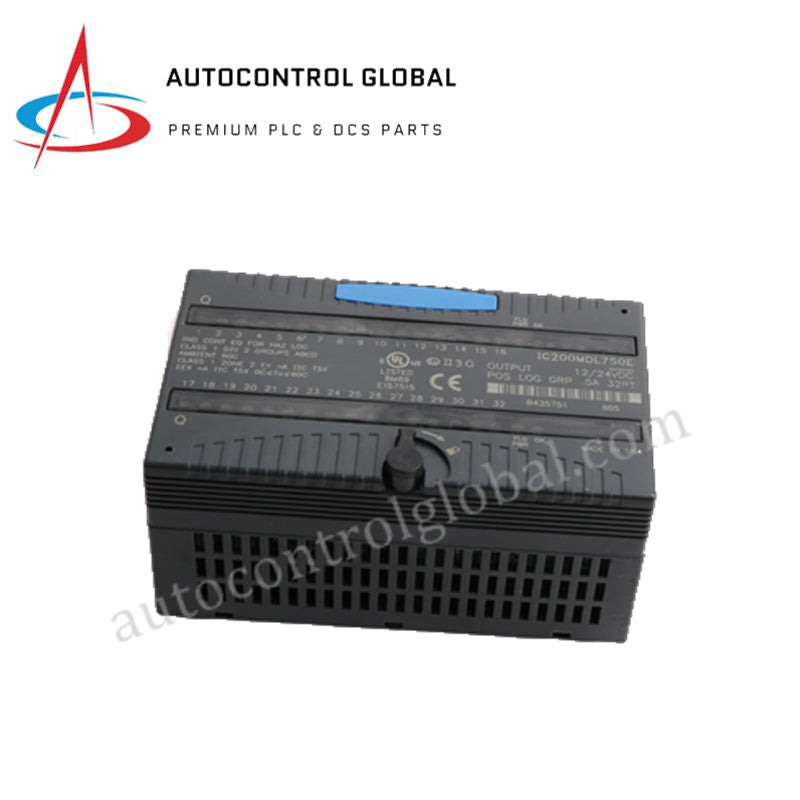

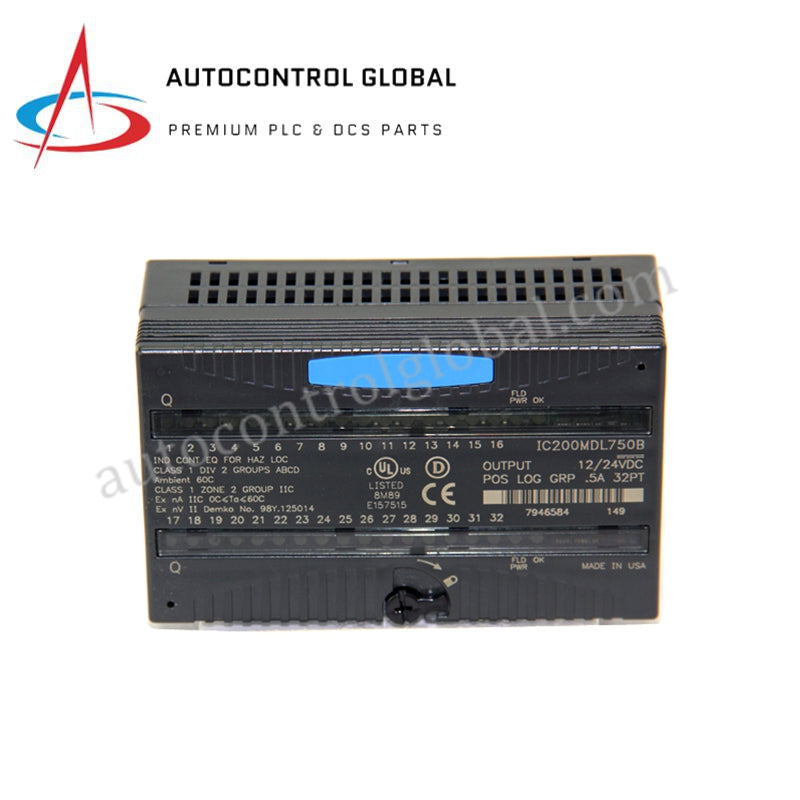

GE Fanuc IC200MDL750E VersaMax 32 Point Output Module
Manufacturer: GE Fanuc
-
Part Number: IC200MDL750A
Condition：New with Original Package
Product Type: Digital Output Cards
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC200MDL750E VersaMax Discrete Output Module
The GE Fanuc IC200MDL750E, also cataloged as the IC200MDL750 Discrete Output Module, operates as a dedicated hardware component for high-density DC switching within VersaMax platforms. The module manages 32 discrete output channels organized into two isolated groups of 16 channels, providing direct field actuation for solenoids, relays, and indicators.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200MDL750E |
| Brand | GE Fanuc / Emerson |
| Origin | Refer to device label |
| Weight | 0.14 kg (0.31 lbs) |
| Dimensions | Standard VersaMax carrier dimensions |
| Operating Temp | 0 deg C to +30 deg C |
| Power Consumption | 90 mA maximum @ 5 VDC (backplane current) |
| Output Channels | 32 sourcing DC channels (2 groups of 16) |
| Nominal Output Voltage | 12 / 24 VDC |
| Output Voltage Range | 10.2 to 30 VDC |
| Output Current per Point | 0.5 A per point |
| Maximum Inrush Current | 2.0 A for 100 ms |
| ON / OFF Switching Response | ON: 0.2 ms / OFF: 1.0 ms |
| External Power Supply | 10.2 to 30 VDC |
| Internal Fuses | None |
| Optical Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| LED Status Indicators | Individual channel LEDs, OK LED, FLD PWR LED |
Backplane Bus Communication Velocity & Firmware Flash Integration
The module coordinates output register state transitions across the VersaMax backplane bus with minimal timing jitter. Fast switching response times of 0.2 ms for ON transitions and 1.0 ms for OFF transitions allow execution of high-speed digital actuation cycles. System logic updates maintain bus communication velocity across the backplane, and firmware flash compatibility ensures predictable I/O density scaling and diagnostic status reporting during continuous operational scans.
Frequently Asked Questions
Q: What external protection is required since the module lacks internal fuses?
A: Because no internal fuses exist on the module, branch circuit protection or external fast-acting field fuses must be installed on the 10.2–30 VDC field supply lines to prevent channel damage from overcurrent faults.
Q: What is the maximum allowable inrush current per channel?
A: Each output channel handles a maximum peak inrush current of 2.0 A for a duration of up to 100 ms.
Q: How is physical isolation managed between internal logic and external field circuits?
A: The hardware incorporates optical isolation rated for 250 VAC continuous continuous duty and tested up to 1500 VAC for 1 minute between backplane logic and field terminals.
Field Installation Guidelines
- Mount the module onto a standard 35 mm DIN rail or panel baseplate using compatible VersaMax I/O carrier bases.
- Connect external 12/24 VDC power across both isolated channel groups, verifying correct supply polarity before energizing field loops.
- Route output signal cabling away from heavy AC power lines to reduce inductive cross-coupling and high-frequency noise interference.
- Connect cable shields to a dedicated protective earth ground bar near the enclosure entrance to maintain signal integrity.
