GE Fanuc IC200UDR005-BA VersaMax Micro PLC Controller
GE Fanuc IC200UDR005-BA VersaMax Micro PLC Controller
GE Fanuc IC200UDR005-BA VersaMax Micro PLC Controller
/ 3

GE Fanuc IC200UDR005-BA VersaMax Micro PLC Controller

  • Manufacturer: GE Fanuc

  • Part Number: IC200UDR005-BA

  • Condition:New with Original Package

  • Product Type: Programmable Logic Controllers

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

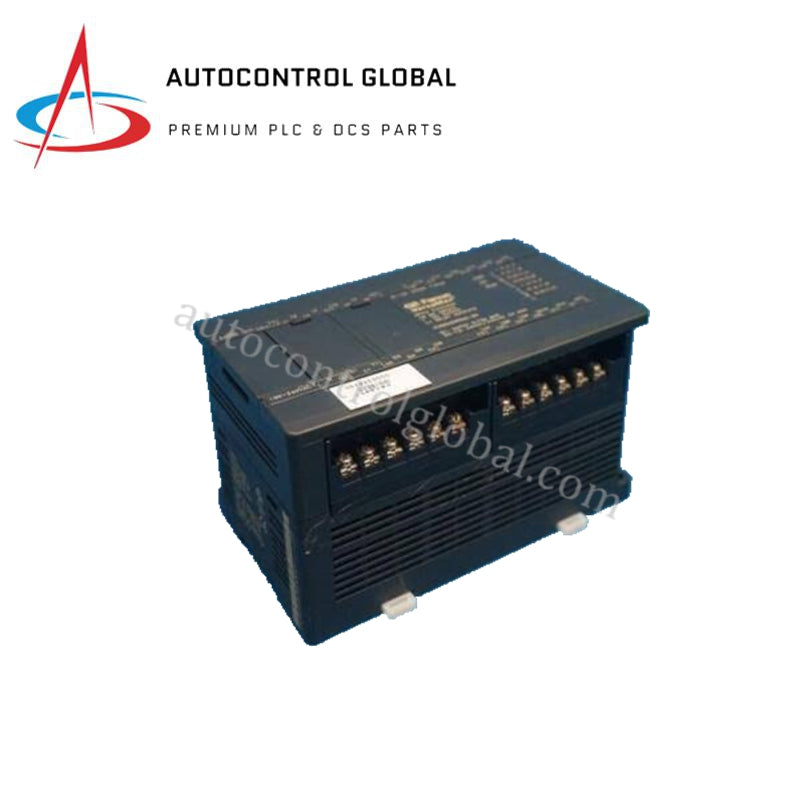

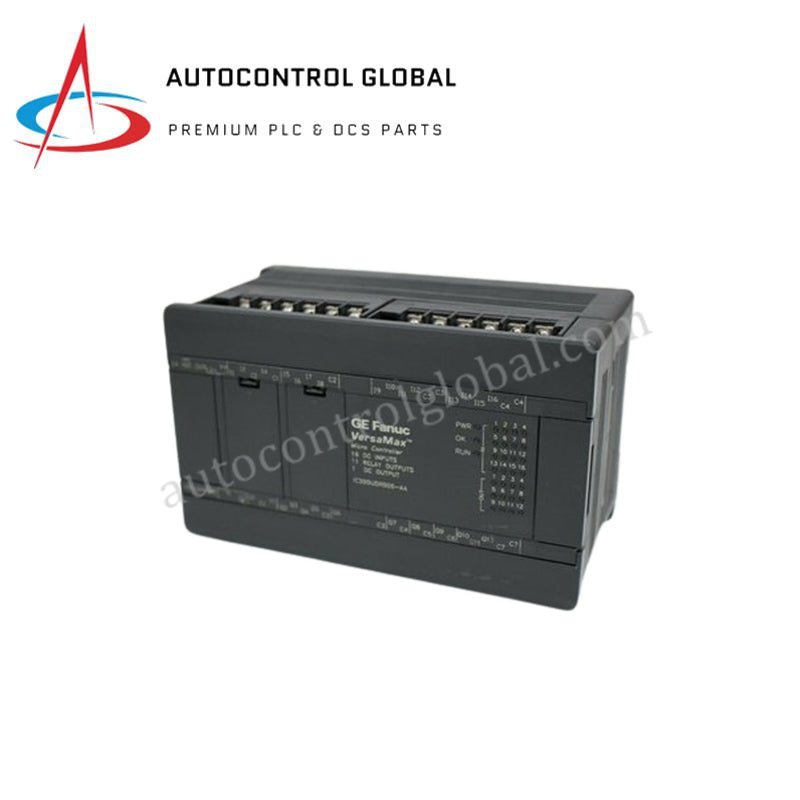

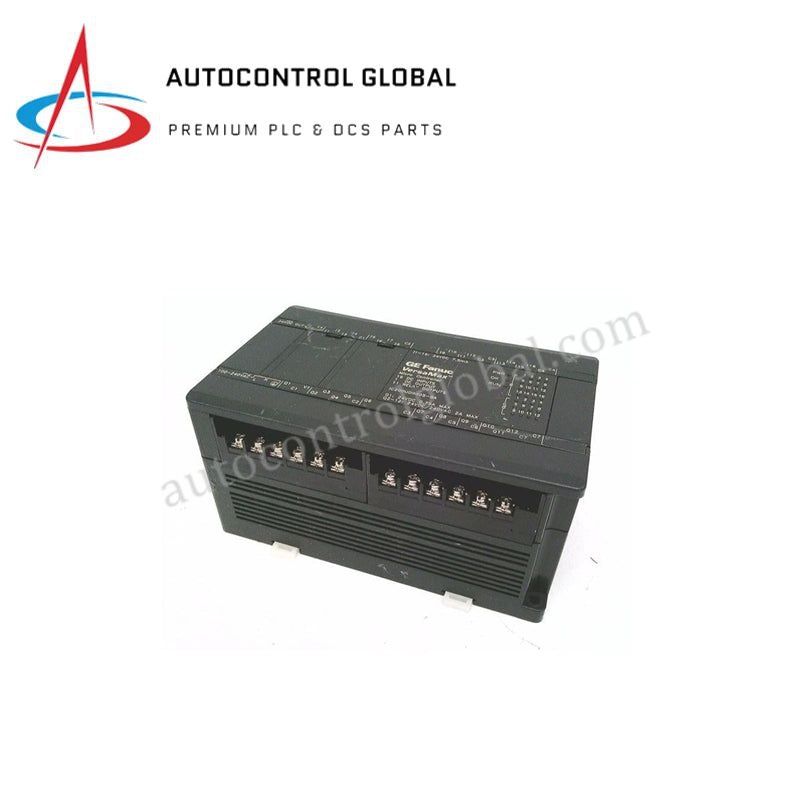

GE Fanuc IC200UDR005-BA VersaMax Micro Controller

The GE Fanuc IC200UDR005-BA, also cataloged as the IC200UDR005BA Micro PLC Controller, operates as a dedicated hardware component for centralized logic processing and field I/O execution within GE VersaMax system platforms. The unit integrates a 32-bit microprocessor, internal AC power conversion circuitry, and fixed discrete terminal points into a single housing. Field technicians route field wiring directly to the terminal block interface, allowing the internal CPU to read 16 DC input channels and drive 12 discrete relay outputs according to program logic stored in non-volatile memory.

Hardware Specifications

Parameter Specification
Model IC200UDR005-BA
Brand GE Fanuc
Origin Japan
Weight 0.6 kg
Dimensions 15.2 x 8.9 x 7.6 cm
Operating Temp 0 to 60 deg C
Power Consumption Integrated AC power supply (120/240 VAC input)
Architecture 32-bit microprocessor
User Memory 12 KB Program Memory, 6 KB Register Memory
Integrated I/O 28 points (16 DC inputs, 12 relay outputs rated 2 A per point)
Serial Ports Dual RS-232 and RS-485 interfaces
Network Protocols SNP Slave, Modbus RTU Slave
Tariff Code (HS Code) 8537109060

Deterministic Network Connectivity & I/O Density Scaling

The internal processor manages serial communication over RS-232 and RS-485 interfaces, executing Modbus RTU Slave and SNP protocols without compromising scan time performance. Control engineers expand total I/O density scaling by attaching external VersaMax expansion modules through the dedicated expansion bus interface. Firmware flash compatibility across the expansion bus ensures synchronized data exchanges between the main CPU card and downstream I/O modules, which preserves real-time control execution across field networks.

Frequently Asked Questions

Q: How do field technicians configure communication protocols on the integrated RS-232 and RS-485 ports?

A: Engineers set communication parameters, node addresses, and protocol assignments (SNP Slave or Modbus RTU Slave) using VersaMax programming software over the primary serial port connection.

Q: What current limits apply to the integrated relay output channels?

A: Each relay output contact supports a maximum continuous load of 2 A per point; exceeding this rating requires external interposing relays to prevent contact welding.

Q: Does the unit support expansion I/O modules while operating from the primary AC supply line?

A: The internal power supply delivers logic power to the local processor and drives connected expansion modules up to the total backplane current limit of the expansion port.

Field Installation Guidelines

Follow these sequential steps during physical installation and cabinet integration:

  1. Mount the controller onto a standard 35 mm DIN rail or screw-fasten the housing directly to the enclosure backpanel using the mounting holes.
  2. De-energize external supply lines before wiring the 120/240 VAC main power terminals.
  3. Route 24 VDC input signal cables separately from high-voltage AC output wires to prevent inductive noise coupling.
  4. Connect field cable shield drain wires directly to the cabinet ground bar via low-impedance copper conductors.
  5. Apply operating power, monitor front panel LED status lights to confirm RUN state, and verify serial port link activity.
