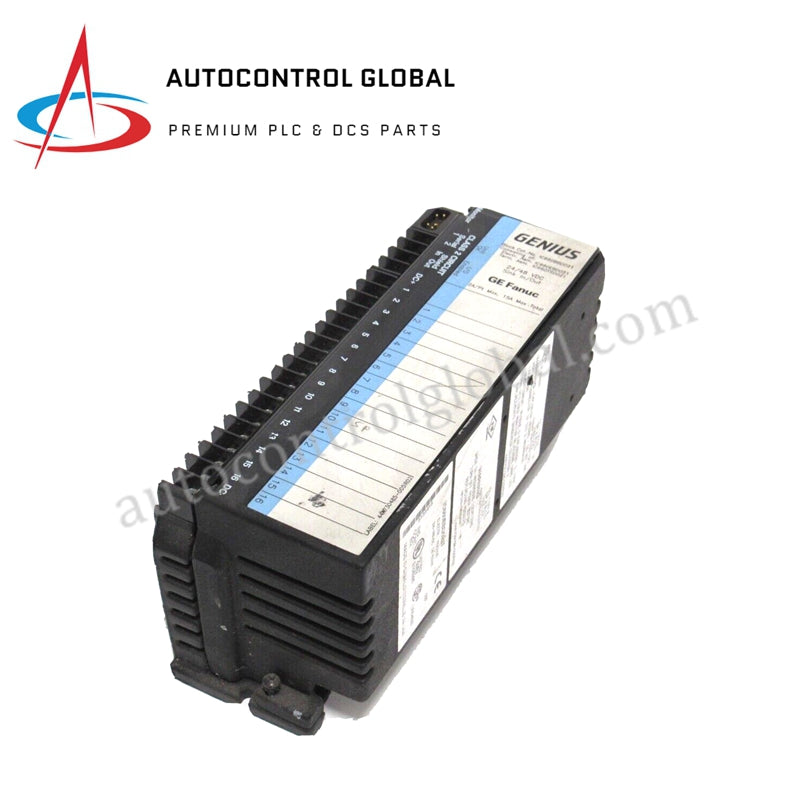

GE Fanuc IC660BBD021 Genius Block I/O Module

Description

The IC660BBD021 is a 16-circuit Serial I/O block from the GE Fanuc Genius I/O series. Designed for 24/48 VDC input and output, this module supports diagnostics for both input and output circuits, ensuring reliable performance in industrial automation systems.

Specifications

• Part Number: IC660BBD021

• Brand: GE Fanuc

• Series: Genius I/O

• Module Type: 16-circuit Block Sink I/O

• Input Voltage: 24/48 VDC

• Output Current: 2 Amperes per circuit

• Input Processing Time: 1.7 ms

• Dimensions:

• Width: 8.83 in (224.5 mm)

• Height: 3.56 in (90.5 mm)

• Depth: 4.42 in (112.2 mm)

• Weight: 4 lbs (1.81 kg)

• Isolation Voltage: 1500 Volts

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 100°C

• Humidity: 5-95% non-condensing

Diagnostics

• Input Diagnostics: Open wire, Overtemperature, Failed switch

• Output Diagnostics: Short Circuit, Overload, No Load, Failed switch, Overtemperature

Electrical Details

• Power Supply Dropout Time: 10 ms

• Maximum Inrush Current: 10 Amperes (up to 10 ms)

• Maximum Switching Frequency: Once per second

Compatibility

• Compatible Electronics Assembly: IC660EBD021

• Compatible Terminal Base Assembly: IC660TSD021
