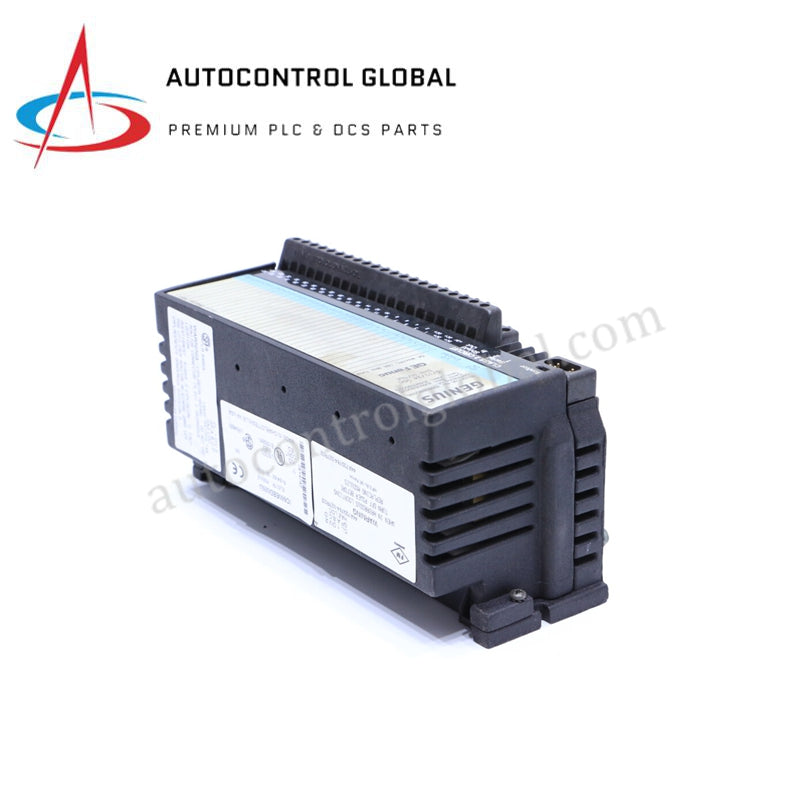

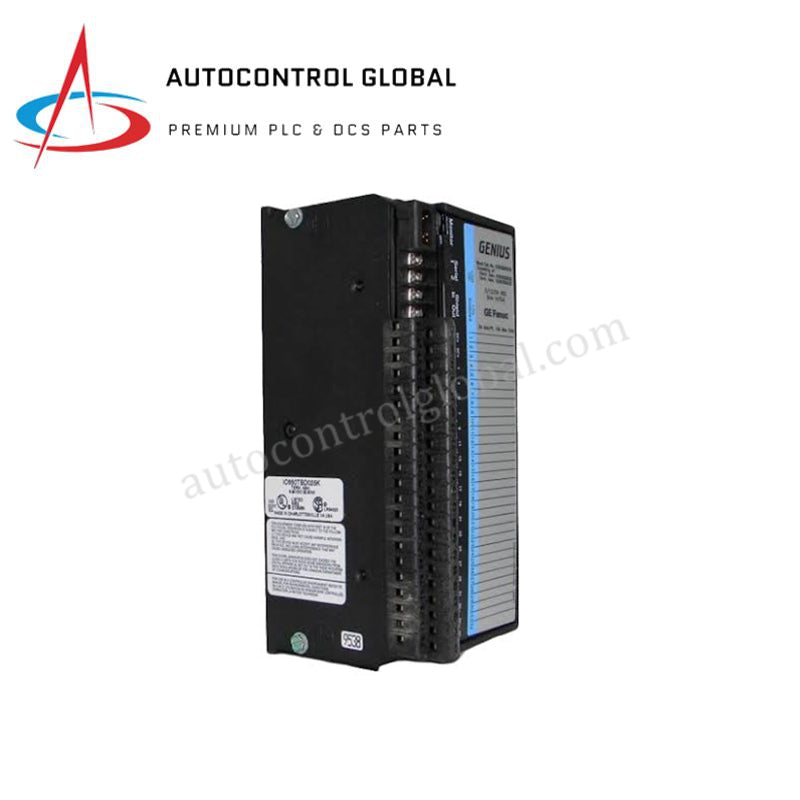

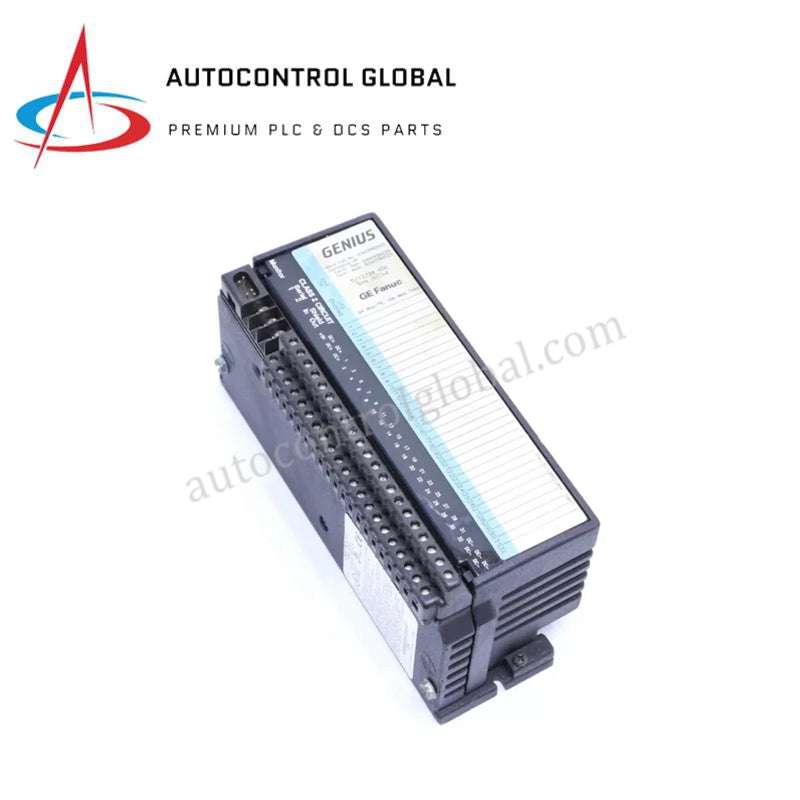

GE Fanuc IC660BBD025 IC660BBD025 Genius I/O Module
Manufacturer: GE Fanuc
-
Part Number: IC660BBD025
Condition：New with Original Package
Product Type: Digital Input Output Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC660BBD025 Genius I/O Discrete Block
The GE Fanuc IC660BBD025, also cataloged as the IC660BBD025 DC I/O Block, operates as a dedicated hardware component for distributed discrete input and output execution within Genius I/O network architectures. It processes 16 DC input channels and 16 DC output channels to actuate field devices and transmit digital state data across the Genius Bus protocol.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC660BBD025 |
| Brand | GE Fanuc |
| Origin | USA |
| Weight | 0.30 kg (0.66 lbs) |
| Dimensions | 100 mm x 150 mm x 50 mm (3.94 in x 5.91 in x 1.97 in) |
| Operating Temp | 0 deg C to +60 deg C (Storage: -40 deg C to +85 deg C) |
| Power Consumption | 24 VDC nominal (acceptable range: 5 VDC / 12 VDC / 24 VDC power) |
| Communication Protocol | Genius Bus deterministic network protocol |
| Channel Capacity | 32-point mixed I/O (16 DC inputs, 16 DC outputs) |
| Input Voltage Range | 0 VDC to 30 VDC (On-State: 13-30 VDC, Off-State: 0-5 VDC) |
| Output Voltage Range | 10 VDC to 30 VDC (Positive logic sinking/sourcing configuration) |
| Output Current Rating | 0.5 A max per point (8 A max cumulative module output current) |
| Galvanic Isolation | 250 V continuous (1500 V for 1 min group-to-group/logic/frame ground) |
Backplane Bus Communication Velocity & Network Integrity
The IC660BBD025 maintains deterministic Genius Bus communication velocity by offloading I/O scan management directly to built-in onboard microprocessors. Integrated watchdog timers and continuous channel diagnostics verify local hardware performance without interrupting global network transaction cycles. Firmware flash compatibility across parent GE Series 90-30 and Series 90-70 CPUs guarantees synchronized parameter exchange and robust noise suppression over multi-drop bus topologies.
Frequently Asked Questions
Q: How are field wiring connections made to the IC660BBD025 module?
A: Field devices connect directly to integrated screw-type terminal blocks that support standard 2-wire and 3-wire DC proximity switches, sensors, and actuators.
Q: What diagnostic capabilities does the IC660BBD025 provide for fault detection?
A: The block incorporates built-in diagnostic routines and individual channel LED indicators, along with dedicated PWR and BUS LEDs, to report field wire breaks, short circuits, and bus communication errors.
Q: Can the IC660BBD025 operate on power supplies other than standard 24 VDC rails?
A: The internal power stage accepts 5 VDC, 12 VDC, and 24 VDC field logic power levels within a +/-10% operational tolerance window.
Field Installation Guidelines
- Mount the assembly securely onto a standard DIN rail or directly to a enclosure backpanel before terminating field conductors.
- Isolate all field voltage sources and system power buses prior to installing or removing terminal connections.
- Route Genius Bus shield cables in strict accordance with single-point grounding rules to prevent ground loops across distributed nodes.
- Install external fast-acting fuses on individual output channels or supply groups to protect internal power switches from overcurrent loads.
- Ensure proper separation between field signal wiring and high-voltage power lines inside local wiring trunks.
