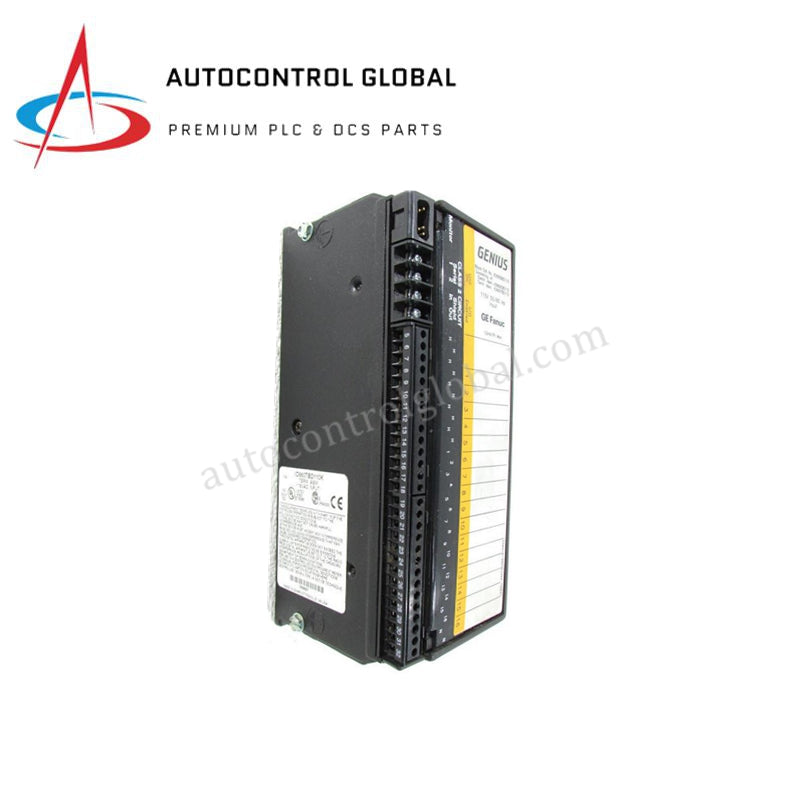

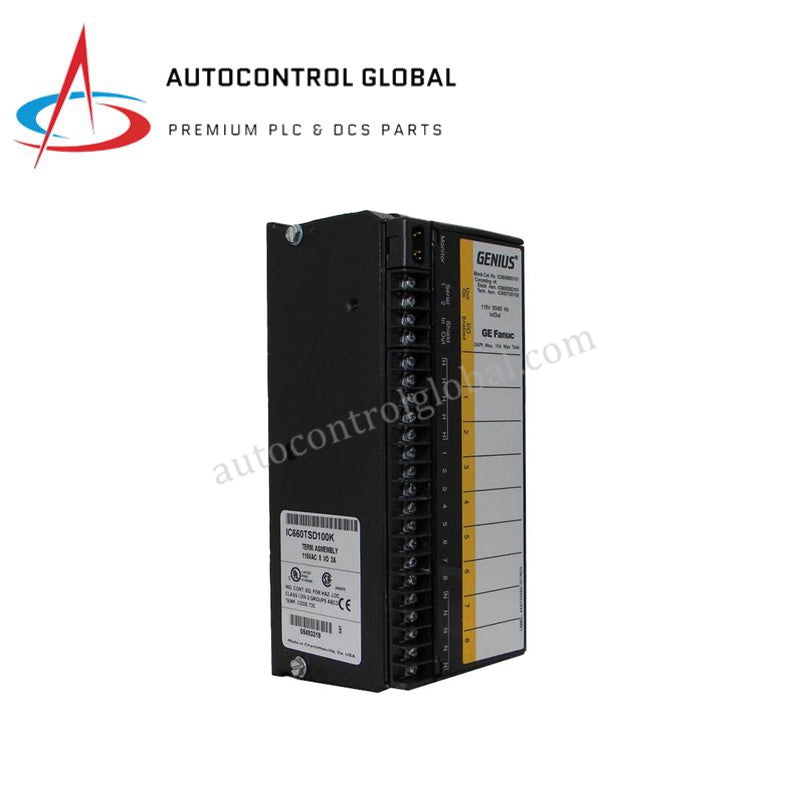

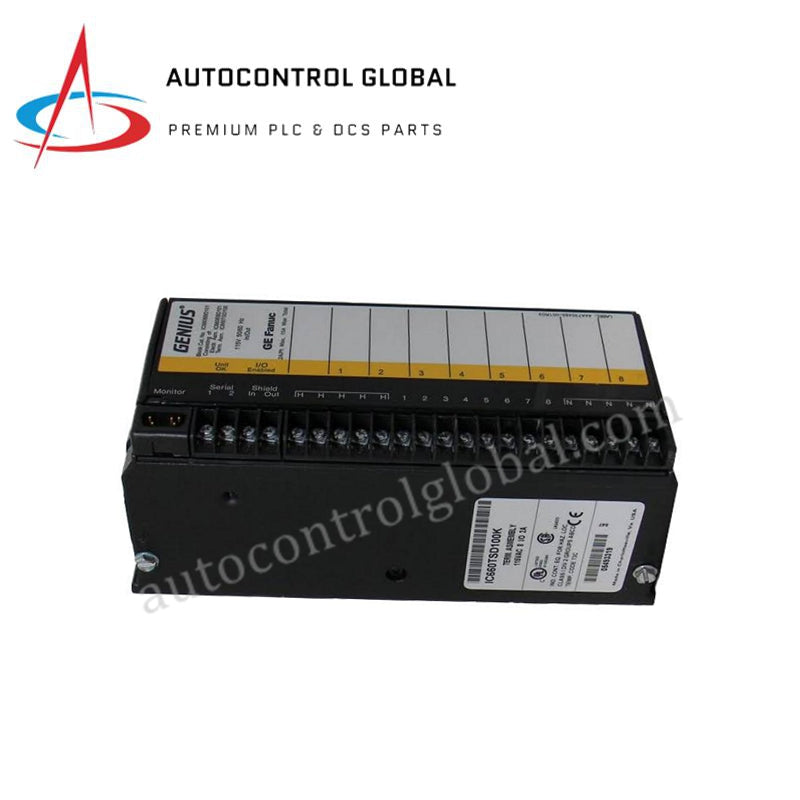

GE Fanuc IC660EBD110P1 Genius I/O Input Module
Manufacturer: GE Fanuc
-
Part Number: IC660EBD110P1
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC660EBD110P1 Genius I/O Electronics Assembly Block
The GE Fanuc IC660EBD110P1, also cataloged as the IC660EBD110 Electronics Assembly Block, operates as a dedicated hardware component for discrete AC input signal processing within Genius I/O network architectures. It conditions and decodes 16 AC input channels across a 93-132 VAC range to transmit digital field states over the Genius Bus protocol.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC660EBD110P1 |
| Brand | GE Fanuc |
| Origin | USA |
| Weight | 1.81 kg (3.99 lbs) |
| Dimensions | 224.28 mm x 88.90 mm x 100.00 mm (8.83 in x 3.50 in x 3.94 in) |
| Operating Temp | 0 deg C to +60 deg C (Storage: -40 deg C to +100 deg C) |
| Power Consumption | 28 W max heat dissipation (8 mA block current / 200 mA circuit current) |
| Input Channel Count | 16 discrete input-only channels |
| Nominal Input Voltage | 115 VAC (operating range: 93 VAC to 132 VAC at 47-63 Hz) |
| Input Impedance | 11.6k ohms |
| Galvanic Isolation | 1500 V for 1 min (input-to-ground / group-to-group) |
| Compatible Terminal Base | IC660TBD110 (completes IC660BBD110 block unit) |
Backplane Bus Communication Velocity & Network Integrity
The IC660EBD110P1 maintains deterministic Genius Bus communication velocity by processing field voltage levels directly through onboard signal conditioning circuits. Internal opto-isolation stages prevent high-voltage line transients from interfering with logic backplane transactions. Firmware flash compatibility across Series 90-30, Series 90-70, and PACSystem RX3i host controllers enables real-time transmission of field diagnostics, programmable threshold states, and hardware watchdog alerts without adding transmission latency to the network segment.
Frequently Asked Questions
Q: Which terminal base assembly is required to complete the installation of the IC660EBD110P1?
A: The module mates directly with terminal base IC660TBD110 to form the complete IC660BBD110 discrete input block assembly.
Q: Can the IC660EBD110P1 be mounted in orientation-constrained control enclosures?
A: The physical housing supports both upright and inverted mounting orientations on control panels or DIN rail structures without degrading thermal dissipation performance.
Q: What physical isolation barriers protect internal logic circuits from field line spikes?
A: Integrated opto-isolators provide continuous galvanic isolation rated at 1500 V for 1 minute between field input circuits, internal logic grounds, and adjacent channel groups.
Field Installation Guidelines
- Align the guide pins of electronics assembly IC660EBD110P1 with terminal base IC660TBD110 before pressing the units firmly together.
- Shut off main AC power feeds prior to connecting 115 VAC field conductors to terminal screw connections.
- Secure field line wiring using standard industrial wire channels, maintaining physical separation from low-voltage DC logic and serial communication cables.
- Ensure panel cutouts or mounting rails accommodate the heat dissipation envelope of 28 W when operating all 16 input channels simultaneously at full current.
- Inspect LED diagnostic indicators upon system power-up to verify proper bus initialization and channel input state reporting.
