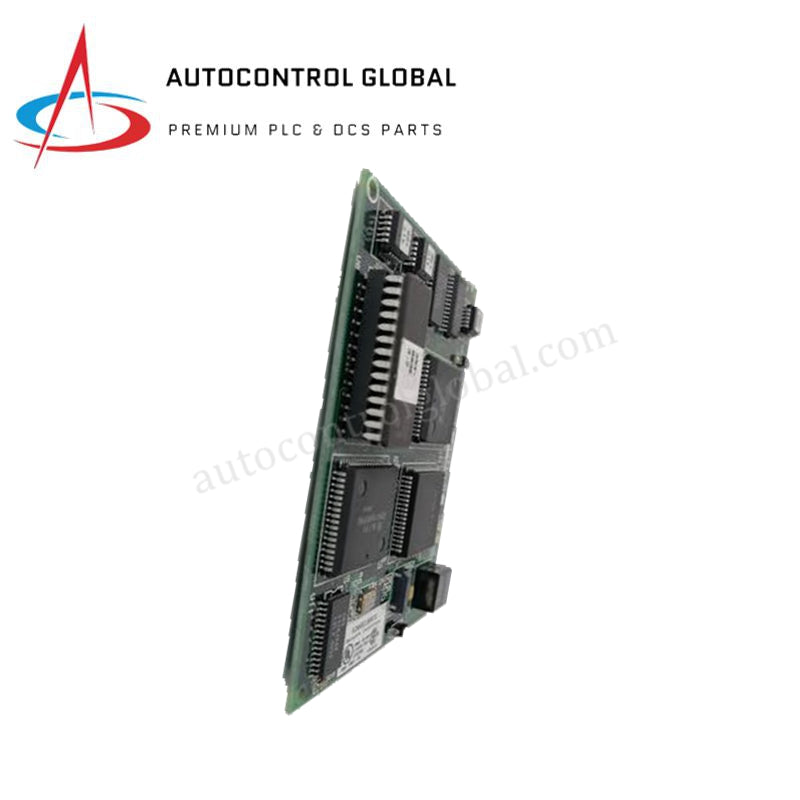

GE Fanuc IC660ELB912J Genius System Analog Interface Card

GE Fanuc IC660ELB912J Genius Analog Interface Module

Configured for four-channel analog signal processing in Genius bus networks, the GE Fanuc IC660ELB912J (IC660ELB912 Analog Interface Module) provides direct physical signal acquisition across distributed industrial control architectures.

Hardware Specifications

Genius Bus Determinism and I/O Density Scaling

The module communicates over the token-passing Genius bus interface to provide deterministic time-stamped telemetry to host controllers such as Series 90-30 and Series 90-70 PLCs. Firmware flash compatibility maintains fixed scan cycle latency across broad network topologies without overloading backplane processing. Furthermore, each channel scales I/O density independently by accepting distinct voltage configurations (+/-10 V, +/-1 V, +/-100 mV) in differential or single-ended wiring modes. Built-in high-speed sampling circuits convert low-level sensor signals directly into digitized register values at thousands of samples per second, suppressing line noise before transmitting payload frames across the Genius bus topology.

Frequently Asked Questions

Q: Can individual channels on the IC660ELB912J accept different voltage ranges simultaneously?

A: Yes. Each of the four input channels configures independently to operate within +/-10 V, +/-1 V, or +/-100 mV limits without cross-channel scaling conflicts.

Q: How does the module handle signal isolation and communication across GE Fanuc PLCs?

A: The module transmits digitized analog values via the Genius bus protocol, interfacing directly with Series 90-30 and 90-70 racks over token-passing serial communication lines.

Q: What precautions apply to module replacement under power?

A: Field technicians must check host PLC rack backplane power settings and enclosure rating requirements prior to servicing, as hot-swapping permission depends on the specific rack enclosure configuration.

Field Installation Guidelines

Mount the module inside a NEMA-rated enclosure to shield internal circuitry from ambient moisture and conductive dust. Secure all physical mounting points to prevent vibrational displacement along the chassis backplane. Maintain a minimum clearance of 50 mm around top and bottom ventilation openings to support natural convection cooling within the -40 deg C to +70 deg C thermal operating envelope.

Wire field analog inputs using twisted, shielded pair conductors to mitigate electromagnetic interference. Ground all cable shield drains at a single earth point near the controller rack to prevent ground loops. Route low-voltage analog signal lines and 5 VDC logic conductors through dedicated wire raceways, keeping a minimum distance of 200 mm from high-voltage AC lines and motor drives. Tighten terminal connection screws to standard torque limits to ensure low-resistance contacts across all four measurement channels.
