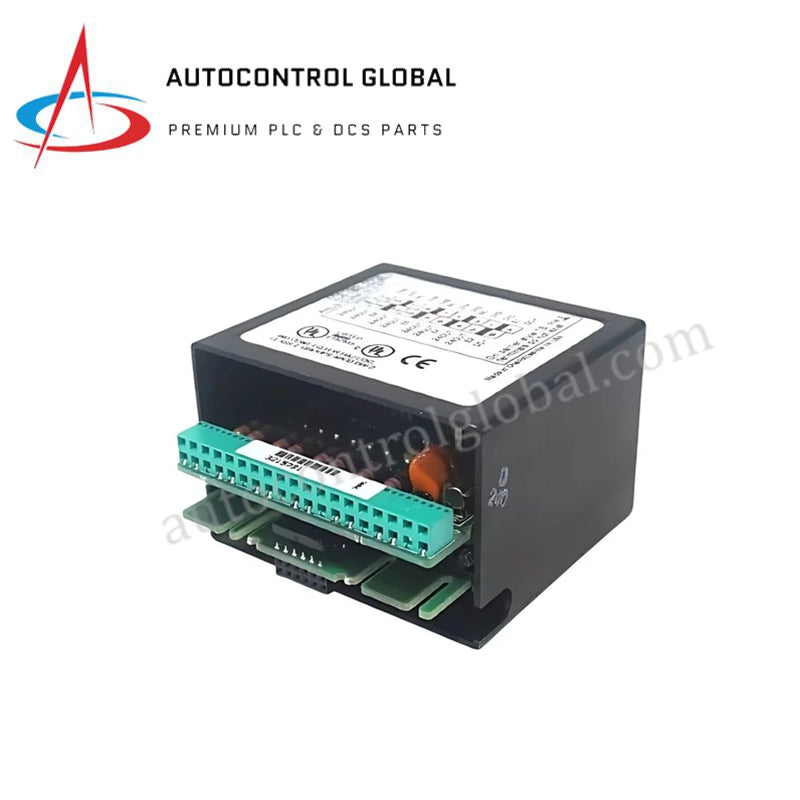

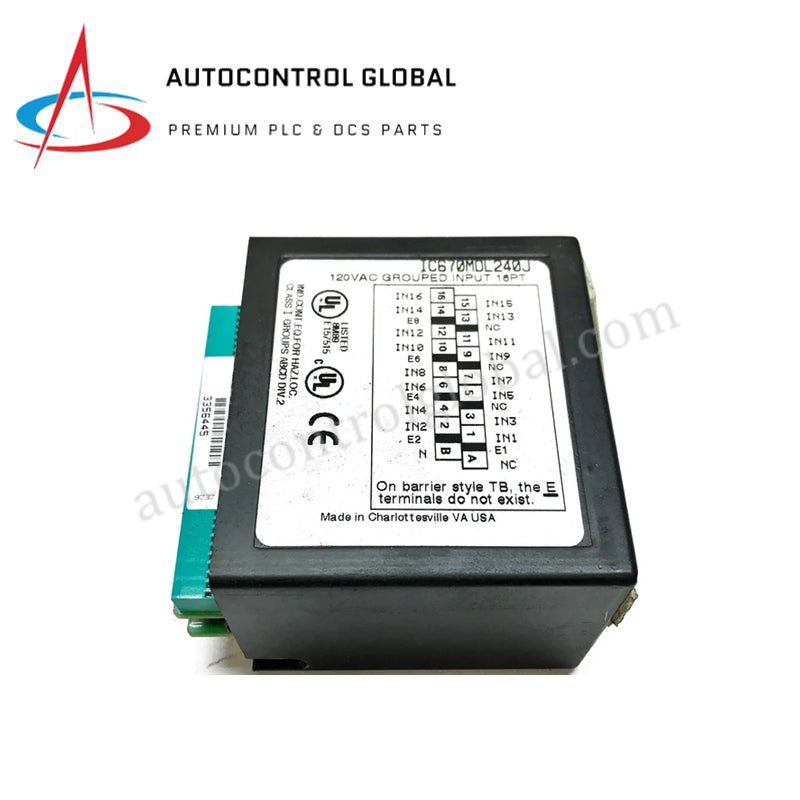

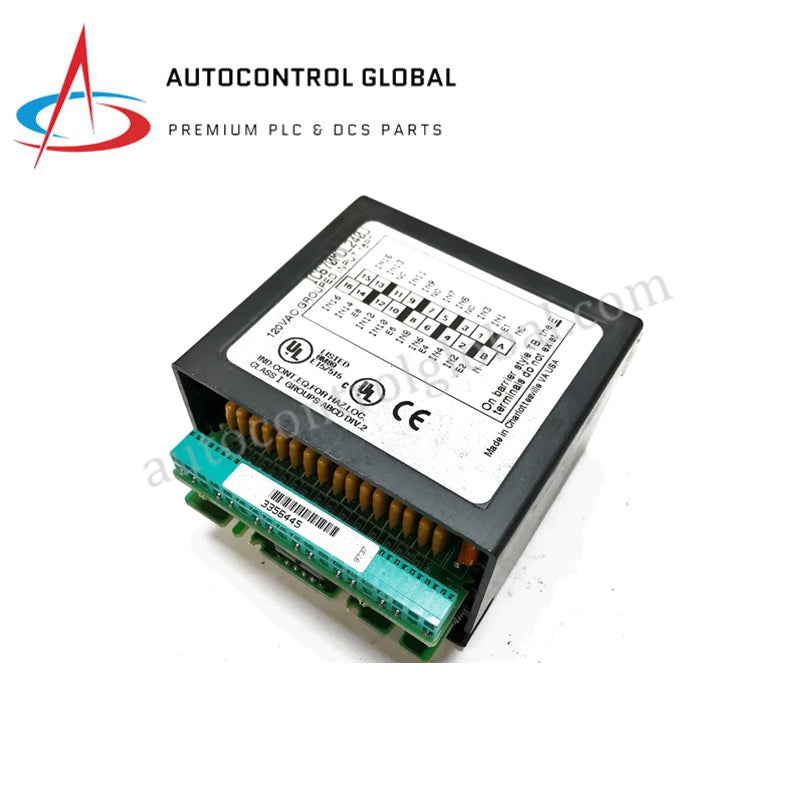

GE Fanuc IC670MDL240J Field Control Input Module
Manufacturer: GE Fanuc
-
Part Number: IC670MDL240J
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC670MDL240J Field Control Discrete Input Module
The GE Fanuc IC670MDL240J, also cataloged as the IC670MDL240 Discrete Input Module, operates as a dedicated hardware component for 120 VAC discrete signal acquisition within Field Control distributed I/O systems. It interfaces physical input signals from field switches and sensors directly to the local Bus Interface Unit for logic execution.
Suffix Breakdown & Model Matrix
| Part Number / Identifier | Hardware Revision & Status Description |
|---|---|
| IC670MDL240 | Base Field Control 16-Point 120 VAC Discrete Input Module |
| IC670MDL240J | Specific Revision J Hardware Variant Identifier |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC670MDL240J (Base Model: IC670MDL240) |
| Brand | GE Fanuc |
| Origin | USA |
| Weight | 0.48 kg (1.06 lbs) |
| Dimensions | Standard Field Control Module Format |
| Operating Temp | 0 deg C to +60 deg C (Storage: -40 deg C to +85 deg C) |
| Power Consumption | 77 mA maximum draw from BIU power supply |
| Rated Input Voltage | 120 VAC (Nominal 115 VAC, operating range: 0-132 VAC, 47-63 Hz) |
| Input Channels | 16 discrete AC input points (divided into two isolated groups of 8) |
| On-State Voltage | 70 VAC to 132 VAC (74-132 VAC nominal range) |
| Off-State Voltage | 0 VAC to 20 VAC |
| Input Current | 8.2 mA typical per point at 120 VAC (up to 15 mA max per point) |
| On-State Current | 4.0 mA to 15 mA (Off-state current: 0 mA to 2.5 mA) |
| Input Impedance | ~14.6 k-ohm @ 60 Hz (~17.6 k-ohm @ 50 Hz) |
| Response Time | On: 12 ms typ / 20 ms max; Off: 25 ms typ / 40 ms max |
| Galvanic Isolation | 250 VAC continuous (1500 VAC for 1 min group-to-group/logic/frame ground) |
Backplane Bus Communication Velocity & I/O Density Scaling
The IC670MDL240J expands I/O density scaling by integrating 16 isolated AC input points within a compact DIN-rail footprint. Channel opto-isolation circuitry segregates high-voltage AC field transients from internal system logic, preventing electrical noise transmission to the host backplane. This arrangement preserves deterministic backplane bus communication velocity across local expansion racks while maintaining firmware flash compatibility with target PACSystems RX3i and Series 90-30 controllers over the Bus Interface Unit bridge.
Frequently Asked Questions
Q: How is field power isolated across the channels on the IC670MDL240J?
A: The module splits 16 input channels into two distinct groups of 8 points, allowing each bank to run on an independent external 120 VAC power source for complete phase or group isolation.
Q: What current draw does the IC670MDL240J place on the backplane logic supply?
A: The module draws a maximum of 77 mA directly from the 5 VDC logic supply provided by the local Bus Interface Unit.
Q: What cable sizes does the removable terminal assembly accept?
A: The removable screw or barrier terminal block accommodates field wiring gauges from AWG #14 down to AWG #22.
Field Installation Guidelines
- Isolate all field voltage sources and de-energize the Bus Interface Unit before inserting or replacing the module assembly.
- Connect independent 120 VAC power supplies to group 1 (points 1-8) and group 2 (points 9-16) when inter-group electrical isolation is required.
- Secure field wiring into the removable terminal block using AWG #14 to #22 conductors, ensuring terminal screws are torqued to specification.
- Separate 120 VAC discrete signal cabling from sensitive DC communication wires to mitigate inductive voltage coupling.
- Check front-panel LED indicators during commissioning to verify power delivery and channel logic status.
