GE Fanuc IC693CHS391H Series 90-30 Datasheet & Technical Manual

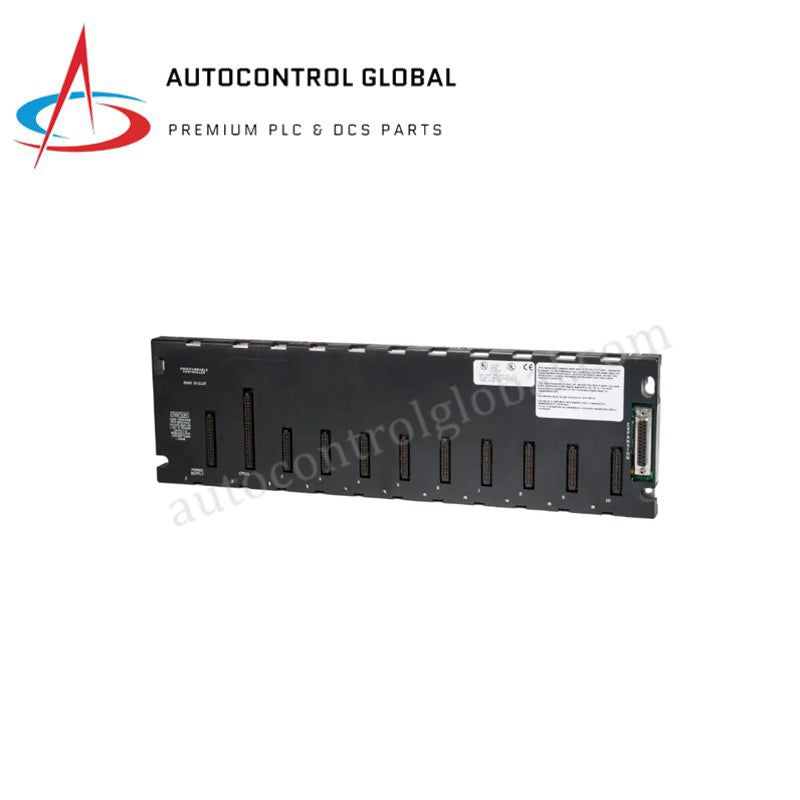

GE Fanuc IC693CHS391H Series 90-30 Expansion Baseplate

Configured for I/O capacity expansion in Series 90-30 PLC networks, the GE Fanuc IC693CHS391H (IC693CHS391 10-Slot I/O Expansion Baseplate) provides direct physical/electrical execution. This passive hardware sub-assembly routes high-speed communication signals and distributed internal voltage lines across multiple instrumentation blocks, linking back to the primary CPU baseplate through dedicated bus logic components.

Hardware Specifications

Industrial Control and Drive Attributes

The layout of the 10-slot expansion track is engineered to optimize I/O density scaling while maintaining rigid cross-talk attenuation parameters across the continuous serial bus paths. The trace geometries preserve signal synchronization and logic voltage stability under continuous operations, meeting the timing demands of Profinet / EtherNet/IP deterministic networks passing through the central gateway. This passive backplane design supports concurrent module addressing without reducing backplane bus communication velocity Licences, preventing data corruption during firmware flash compatibility updates across the attached I/O matrix.

Frequently Asked Questions

Q: What are the strict slot assignment constraints enforced on this expansion baseplate?

A: Slot 1 is structurally and electrically reserved for the Series 90-30 Bus Receiver Module, which links the expansion baseplate back to the primary CPU baseplate. Slots 2 through 10 are universal slots that support standard discrete, analog, and specialty I/O modules.

Q: Can this expansion baseplate draw power directly from the main CPU baseplate via the expansion cable?

A: No. The IC693CHS391H does not receive operating power through the bus expansion cable. It requires its own dedicated Series 90-30 power supply module installed in the far-left power supply slot to energize the backplane rails and local I/O modules.

Q: Is hot-swapping of I/O modules permitted on this backplane structure?

A: No. The Series 90-30 architecture requires full input power isolation before inserting or removing any module from the baseplate slots. Attempting hot-swap operations under power can cause electrical transient damage to the backplane serial logic traces.

Field Installation Guidelines

• Chassis Fastening and Alignment: Bolt the baseplate chassis firmly inside the panel enclosure or onto a standard 19-inch mounting rack. Verify that the physical attachment points provide low mechanical resistance to ensure a solid structure against vibration.
• Ground Plane Electrical Bonding: Connect a heavy-gauge copper grounding strap from the dedicated ground terminal on the baseplate housing straight to the primary panel earth ground bar to bleed off electromagnetic interference.
• Bus Cable Routing and Isolation: Route the expansion bus cable connecting the CPU plate to the local Bus Receiver Module through an isolated wire duct. Keep this data line away from high-voltage AC lines or motor supply cables to prevent inductive noise coupling.
• Module Seating Protocol: Insert all I/O cards and the power supply module straight along the slot guides to prevent bending the connector pins on the backplane. Tighten all module retention mechanisms to maintain continuous electrical contact.
