IC697CHS750 Product Description

Description / Product Summary

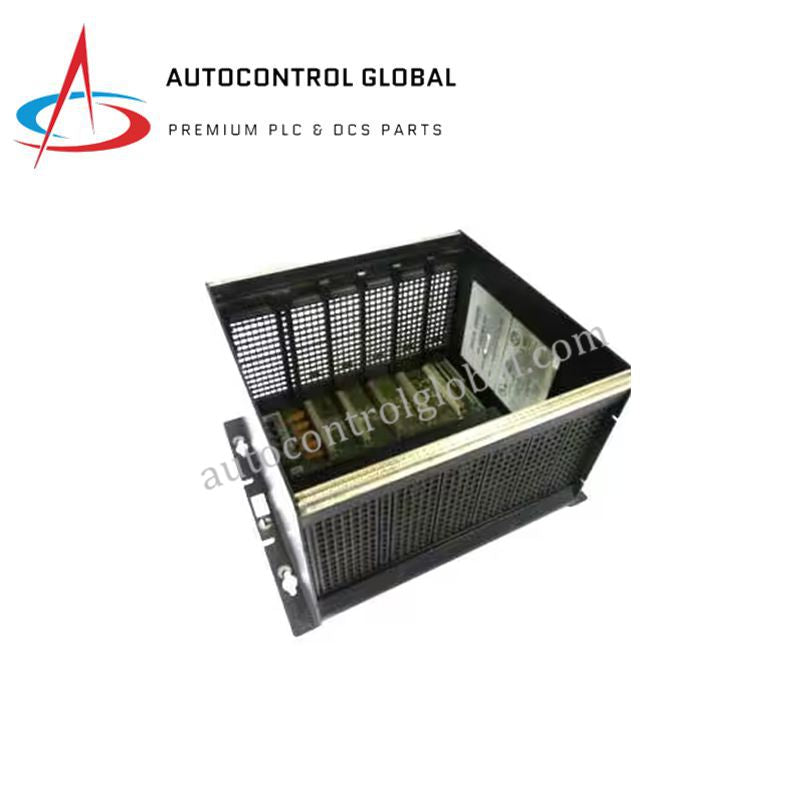

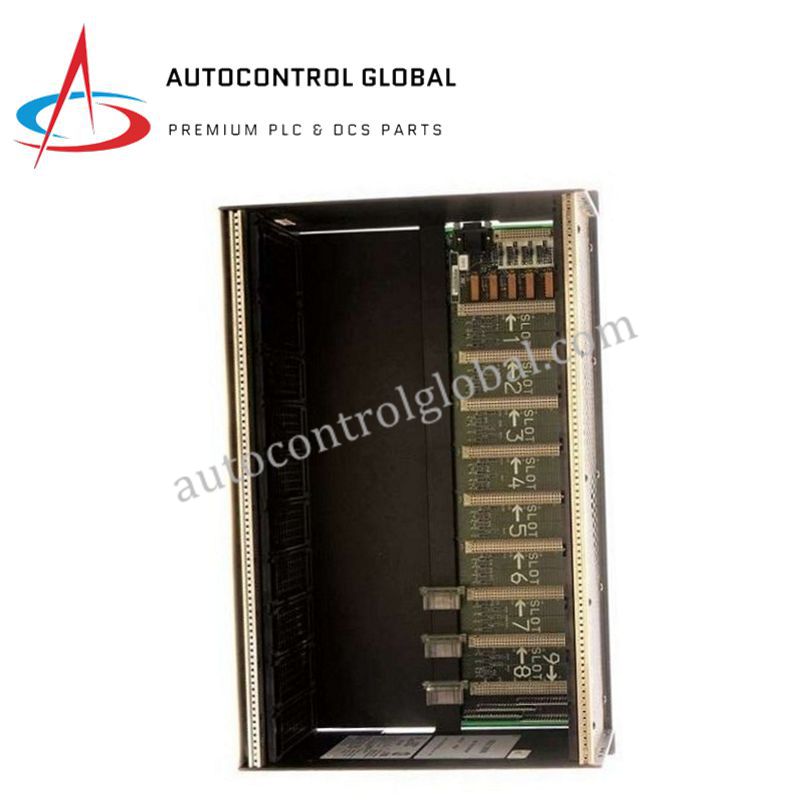

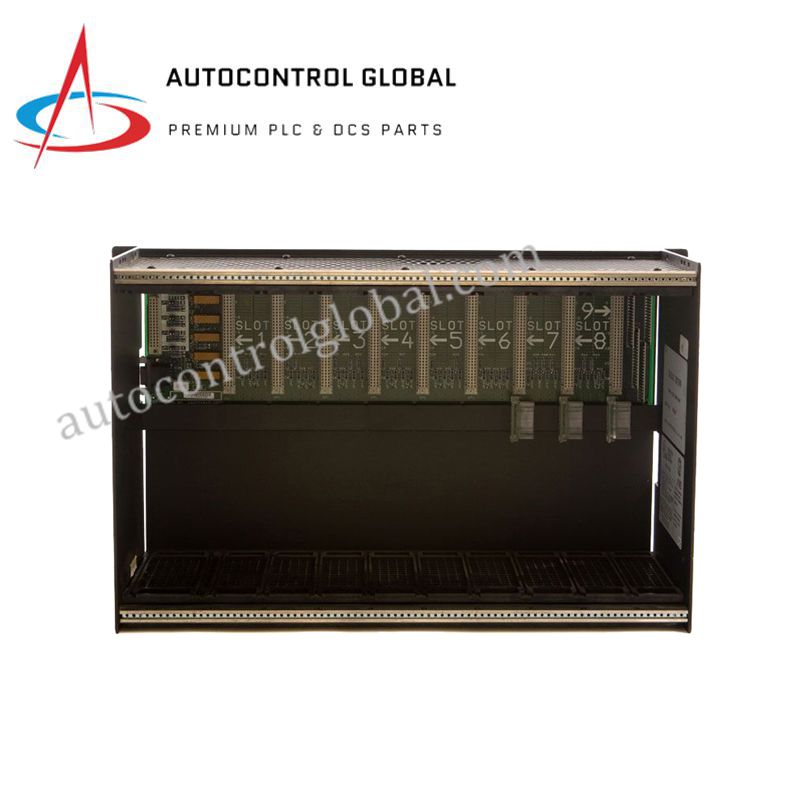

The GE Fanuc IC697CHS750 is a five-slot rack designed for Series 90-70 PLC systems that require stable mechanical support and reliable backplane communication. It provides the foundation for assembling modular control architectures where CPU, power supply, and I/O modules operate as a unified system. Moreover, the rack’s rugged construction ensures dependable performance in demanding industrial environments. In addition, its rear-mounting design helps integrators build compact control panels with flexible installation options.

Technical Specifications

Rack Size & Layout

• Five available slots for Series 90-70 modules

• Rear-mounting design for industrial control cabinets

• Supports CPU, power supply, I/O, and communication modules

Backplane & Electrical System

• High-speed parallel bus communication

• Distributes +5 VDC and +24 VDC from the selected IC697 power supply

• Compatible power supply models: IC697PWR711, IC697PWR748

Module Compatibility

• Accepts all IC697 module types

• Suitable for specialty, communication, and high-density I/O modules

Mechanical & Physical Details

• Rugged aluminum chassis

• Dimensions: 19 × 7 × 11 in

• Weight: 6–8 kg

Environmental Ratings

• Operating temperature: 0 °C to +60 °C

• Storage temperature: –40 °C to +85 °C

• Humidity: 5–95% non-condensing

FAQ

Q1: Which PLC series is the IC697CHS750 designed for?
It is specifically built for GE Fanuc Series 90-70 PLC systems.

Q2: How many modules can this rack support?
The chassis contains five slots that accept any standard IC697 module.

Q3: Does the rack include a built-in power supply?
No, the rack requires a compatible Series 90-70 power supply module.

Q4: Is this model still in production?
No, it has been discontinued, but it remains widely used in legacy systems.

Q5: Can it be installed in a horizontal orientation?
Yes, the chassis is designed for horizontal mounting inside industrial cabinets.
