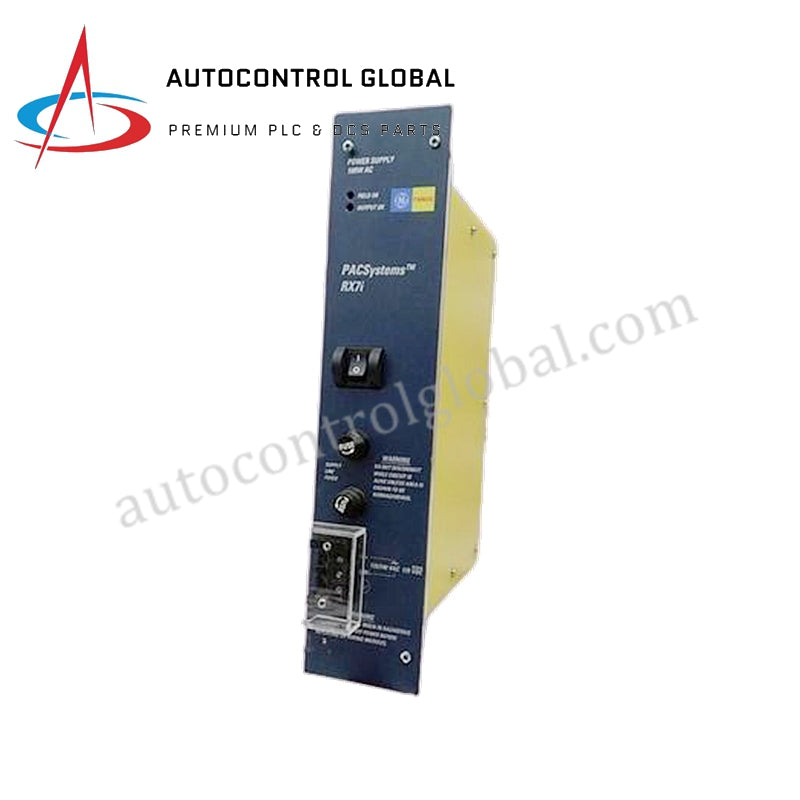

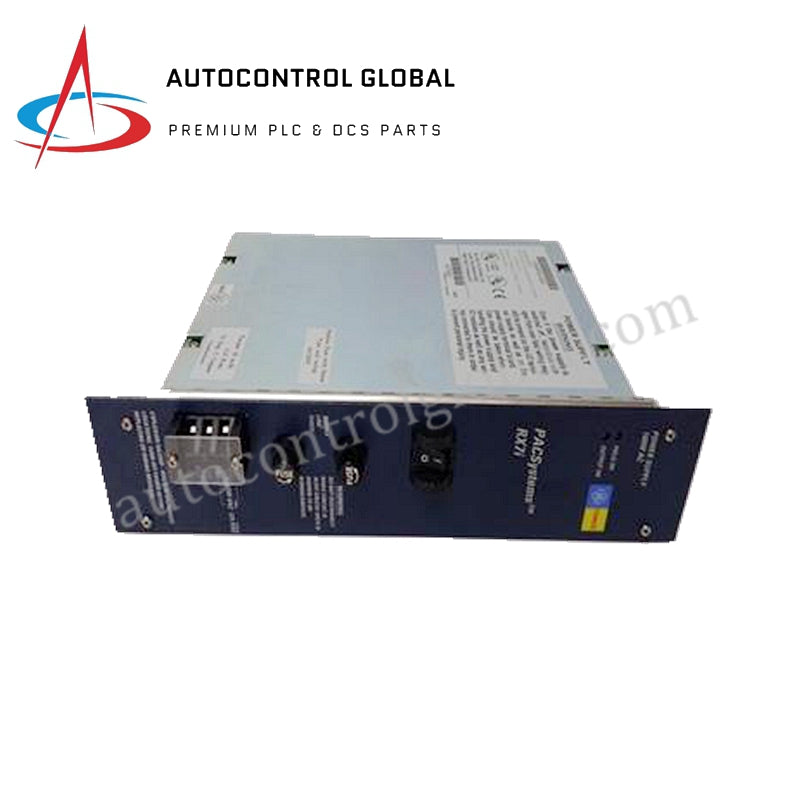

GE Fanuc IC698PSA100E RX7i series Power Supply Module
Manufacturer: GE Fanuc
-
Part Number: IC698PSA100E
Condition：New with Original Package
Product Type: Power Supply Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
IC698PSA100E is a GE Fanuc PACSystems RX7i Power Supply Module providing regulated DC power and logic signals for the system backplane, with built-in protection and status indicators.
Key Features
-
Mounts in slot 0 of the RX7i main rack
-
Total output power: 100 W (0–60ºC ambient, no forced cooling)
-
Maintains output during 1 AC input line cycle loss
-
Slide-in rack mount design
-
Logic-level On/Off switch (does not disconnect AC line)
-
LED indicators for field and output status
-
Safety warning: Lethal voltages present when input power is applied
Output Specifications
-
+5 VDC: up to 20 A
-
+12 VDC: up to 2 A
-
–12 VDC: up to 1 A
Input Specifications
-
Input voltage:
-
85–264 VAC
-
100–150 VDC
-
Power factor correction: Included (for AC input)
Protection Features
-
Overvoltage protection
-
Overcurrent protection
-
Overtemperature protection
