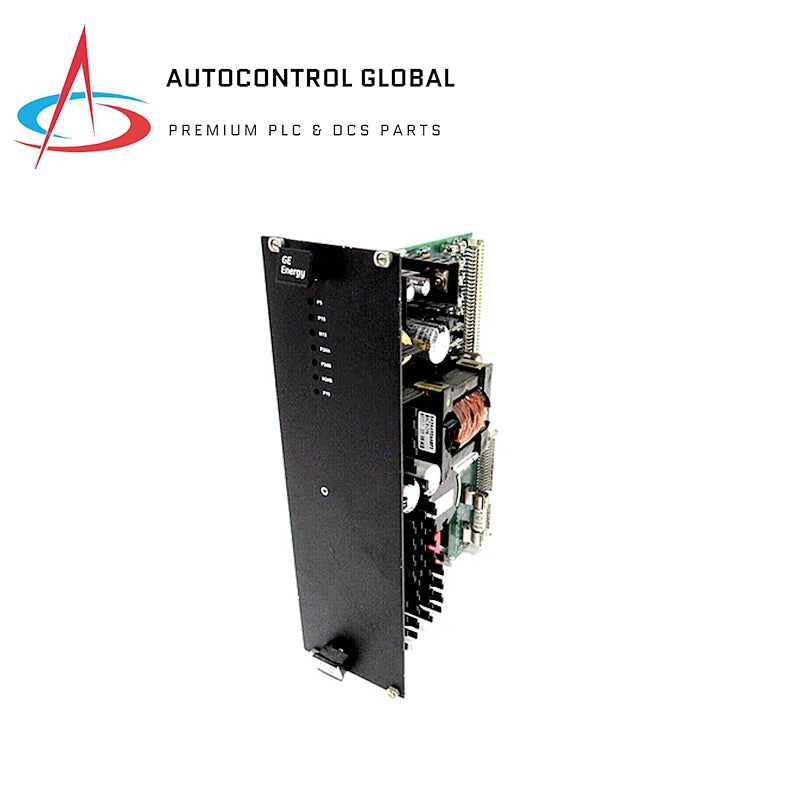

GE Fanuc | IS200EPSMG2AED | Exciter Power Supply Module

Overview

The IS200EPSMG2AED functions as an exciter power supply module within the GE Mark VI system of the Speedtronic Mark VI Series. This module is integral to the management of gas and steam turbines, providing advanced capabilities compared to earlier Speedtronic systems.

Features

• Advanced Interface: Utilizes a Windows PC as an HMI, featuring full-color graphics (CIMPLICITY) and Ethernet capabilities.
• Voltage Outputs: Supplies the following voltages for EX2100 regulator control:
  • +5 VDC
  • ±15 VDC
  • +24 VDC
• Redundancy Support: In a redundant system, two IS200EPSMG2AED boards are mounted in the backplane (ERBP (M1) and ERRB (M2/C)).
• LED Indicators: Equipped with seven LED lights for real-time status monitoring.

Technical Specifications

• Module Type: Exciter Power Supply module within the Mark VI system, used in regulator control.

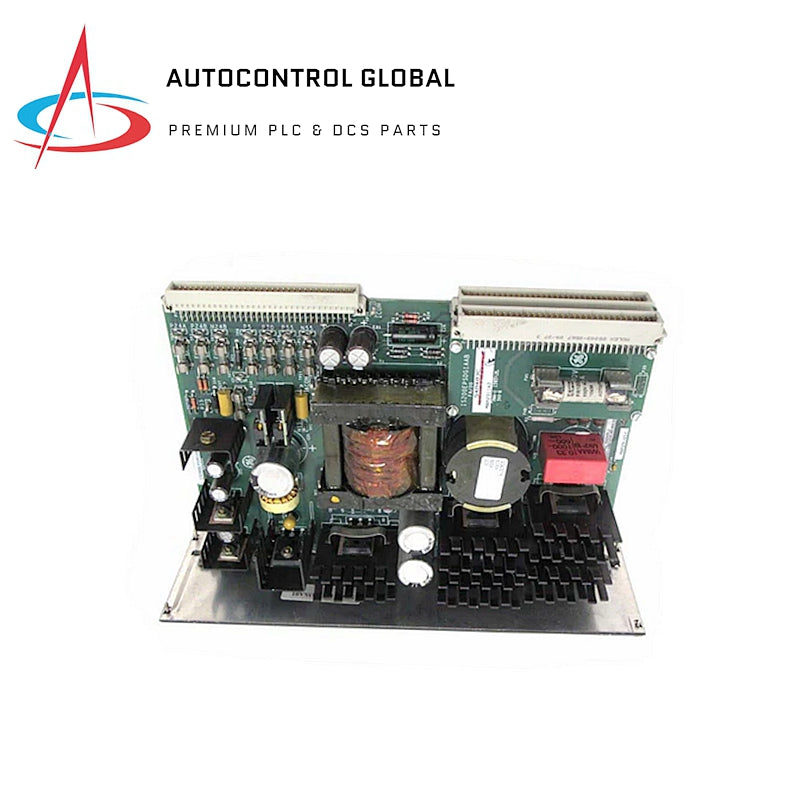

• Components:
  • Bicron inductor
  • Transformer
  • Five transistors with heat sinks
  • Four additional heat sinks
  • Nine fuses for enhanced safety
• Daughterboard Connection: The EPSD daughterboard connects to the main board using four screws inserted into standoffs and includes a backplane connector.
• Mounting: In a simplex system, a single IS200EPSMG2AED board is mounted in the ERBP backplane.
