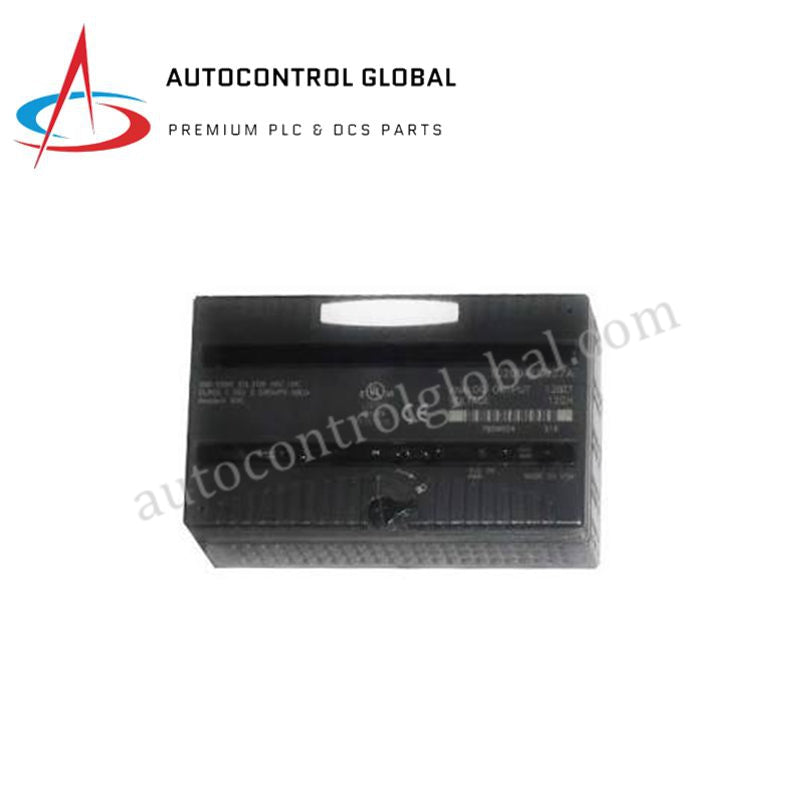

GE IC200ALG331-EB VersaMax 4 Channel Analog Output Module
Manufacturer: GE Fanuc
-
Part Number: IC200ALG331-EB
Condition：New with Original Package
Product Type: Analog Output Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE IC200ALG331-EB VersaMax Analog Output Module
The GE Fanuc IC200ALG331-EB, also cataloged as the IC200ALG331 Analog Output Module, operates as a dedicated hardware component for converting digital control words into precise analog voltage or current signals within VersaMax I/O platforms. The module drives up to four individually isolated channels across either +-10 VDC or 4-20 mA ranges to control final control elements, variable frequency drives, and industrial actuators. Onboard digital-to-analog converters execute output updating within 7 ms while maintaining continuous isolation between channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200ALG331-EB |
| Brand | GE Fanuc / Emerson |
| Origin | USA |
| Weight | 0.25 kg |
| Dimensions | 13.8 x 2.54 x 12.0 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 10 mA at 5 VDC; 115 mA at 3.3 VDC backplane draw |
| Output Channels | 4 individually isolated channels |
| Signal Output Ranges | +-10 VDC voltage or 4-20 mA current |
| Resolution | 16-bit (381 uV voltage mode, 381 nA current mode) |
| Output Accuracy | +-0.1% of full scale at 25 deg C |
| Update Rate | 7 ms maximum |
| Channel Isolation | 250 VAC continuous; 1500 VAC for 1 min |
| External Supply Voltage | 18 to 30 VDC (24 VDC nominal) |
Backplane Bus Communication Velocity and Firmware Compatibility
The module transfers 16-bit process values across the rack bus without degrading backplane bus communication velocity during multi-channel update cycles. Onboard memory holds channel calibration parameters and tracks diagnostics such as open wire, over/under-range, and field power loss. Internal microprocessor registers validate firmware flash compatibility upon rack power-up, ensuring that configuration data matches the assigned channel modes before enabling physical output driver stages.
Frequently Asked Questions
Q: How does loop isolation behave when powering current loops from the internal module supply?
A: If technicians connect field loads to the internal 24 VDC module power supply, channel-to-channel isolation is bypassed for those specific loops. Maintaining full galvanic isolation across all 4 channels requires powering current loops through separate, external isolated loop power sources.
Q: What diagnostic flags indicate a field-side signal line failure?
A: The module continuously monitors circuit impedance and supply levels. An open wire fault triggers when current loop resistance exceeds threshold limits, while the onboard FLD PWR LED turns off and registers a field supply fault if the external 18-30 VDC input drops below operational limits.
Q: Can maintenance teams replace this module under active power in hazardous areas?
A: Technicians must completely de-energize external power supplies and rack backplane power before extracting or inserting the module in Class I, Div 2 locations. Hot-swapping in explosive atmospheres risks electrical arcing across backplane pins.
Field Installation Guidelines
Mount the analog module onto a compatible VersaMax carrier secured to a standard 35 mm DIN rail inside a protective cabinet. Align the module housing with the carrier slot guide rails and push firmly until the locking mechanism seats into the backplane connector. Tighten carrier mounting fasteners to prevent vibration-induced signal interruption.
Route 4-20 mA current loops and +-10 VDC signal lines through dedicated low-voltage wiring raceways, maintaining a minimum physical separation of 200 mm from high-voltage AC cables and switching drive wiring. Use twisted-pair shielded cable for all analog connections. Ground cable shields at a single point on the cabinet entry ground bar to suppress high-frequency noise and prevent ground loop currents from degrading signal accuracy.
