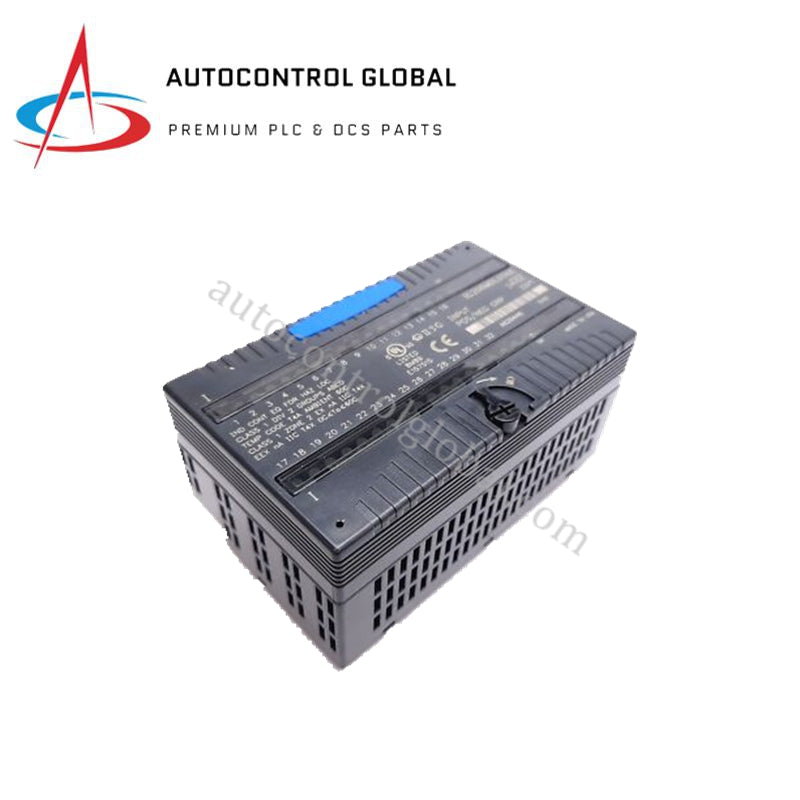

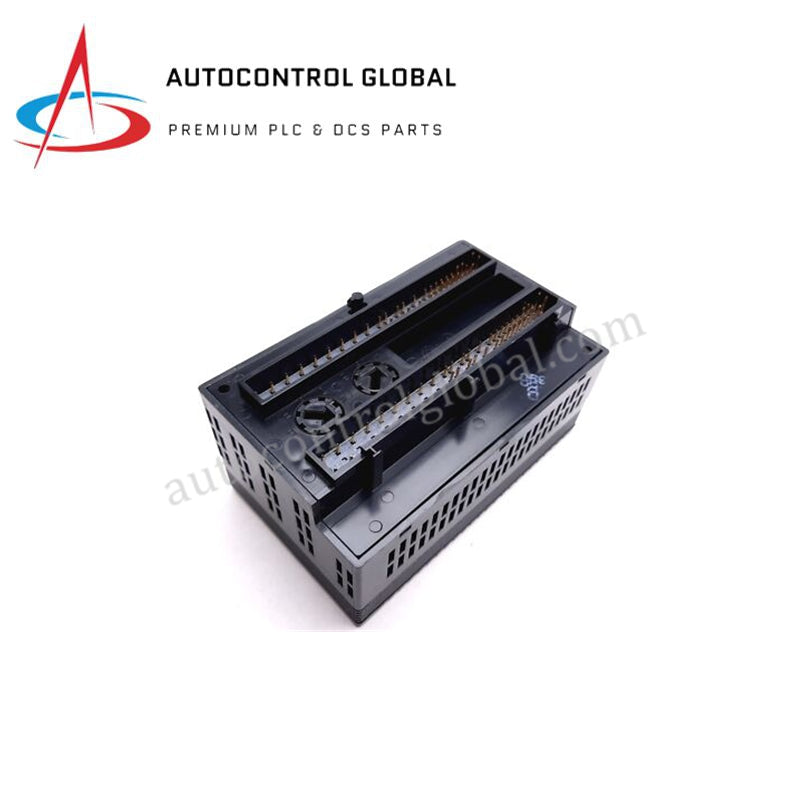

GE IC200MDL650E VersaMax 32 Point 24 VDC Discrete I/O Module

  • Manufacturer: GE Fanuc

  • Part Number: IC200MDL650E

  • Condition:New with Original Package

  • Product Type: Digital I/O Cards

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

GE Fanuc IC200MDL650E VersaMax Digital Input/Output Module

Configured for discrete signal sensing and field load actuation in GE VersaMax PLC platforms, the GE Fanuc IC200MDL650E (IC200MDL650 Discrete I/O Module) provides direct physical/electrical execution. Field technicians insert this high-density module onto a standard VersaMax carrier terminal base where it routes 24 VDC discrete field signals to and from the central backplane logic rails. Optical isolation barriers protect internal processing circuits from field-side voltage transients while channel status LEDs display active switching states directly on the front panel assembly.

Hardware Specifications

Parameter Specification
Model IC200MDL650E / IC200MDL650
Brand GE Fanuc
Origin United States
Weight 0.1 kg (0.45 kg package weight)
Dimensions 10.9 x 6.1 x 5.8 cm
Operating Temp 0 to 60 deg C
Power Consumption 50 mA from 5 VDC backplane
Point Density 32 discrete channels (4 isolated groups of 8 points)
Nominal Field Voltage 24 VDC (0 to 30 VDC range)
ON-State Voltage / Current 15 to 30 VDC / 2.0 to 5.5 mA
OFF-State Voltage / Current 0 to 5 VDC / 0 to 0.5 mA
Input Filter Hardware Delay Configurable 0 ms, 1.0 ms, or 7.0 ms
Group-to-Group Isolation 250 VAC continuous, 1500 VAC for 1 min
Tariff Code (HS Code) 8538909100

Deterministic Network Connectivity and I/O Density Scaling

The module scales total I/O density within compact panel layouts, allowing control systems to monitor high channel counts over a single carrier slot. Internal logic buffers pass discrete state changes directly across the backplane bus, maintaining high backplane bus communication velocity and preventing signal latency over Profinet and EtherNet/IP deterministic networks. Full firmware flash compatibility ensures that attached VersaMax CPU cards instantly acknowledge the module hardware ID (80088008) during system startup, establishing synchronized operational scans across extended I/O racks.

Frequently Asked Questions

Q: How do technical personnel configure input hardware filter delays on the IC200MDL650E module?

A: Engineers select input response times (0 ms, 1.0 ms, or 7.0 ms) within the VersaMax PLC programming software environment to filter electrical contact bounce or high-frequency field noise.

Q: Can maintenance teams replace the IC200MDL650E card while the VersaMax rack remains powered?

A: Technical staff must disengage main backplane logic power and disconnect field voltage wiring before extracting the module from its carrier base to prevent backplane bus communication faults.

Q: What isolation protection prevents field transients on one channel group from affecting adjacent channels?

A: Integrated optical isolators provide 250 VAC continuous and 1500 VAC 1-minute surge isolation between the four independent 8-channel groups, as well as between field-side wiring and the backplane logic bus.

Field Installation Guidelines

Follow these sequential steps during cabinet mounting and wiring:

  1. De-energize all primary cabinet power feeds and lock out field supply voltages before installing hardware components.
  2. Align the module edge connector with the carrier slot on the VersaMax mounting rail, pressing firmly until the locking tabs seat completely.
  3. Terminate 24 VDC field input and output conductors into the removable terminal block connectors, verifying correct polarity for positive/negative logic channels.
  4. Route low-voltage DC discrete signal wiring in dedicated wiring trays physically separated from high-voltage AC motor lines.
  5. Connect cable shield drain wires directly to the cabinet ground bar using short copper grounding straps, then restore power to inspect the OK LED status.
