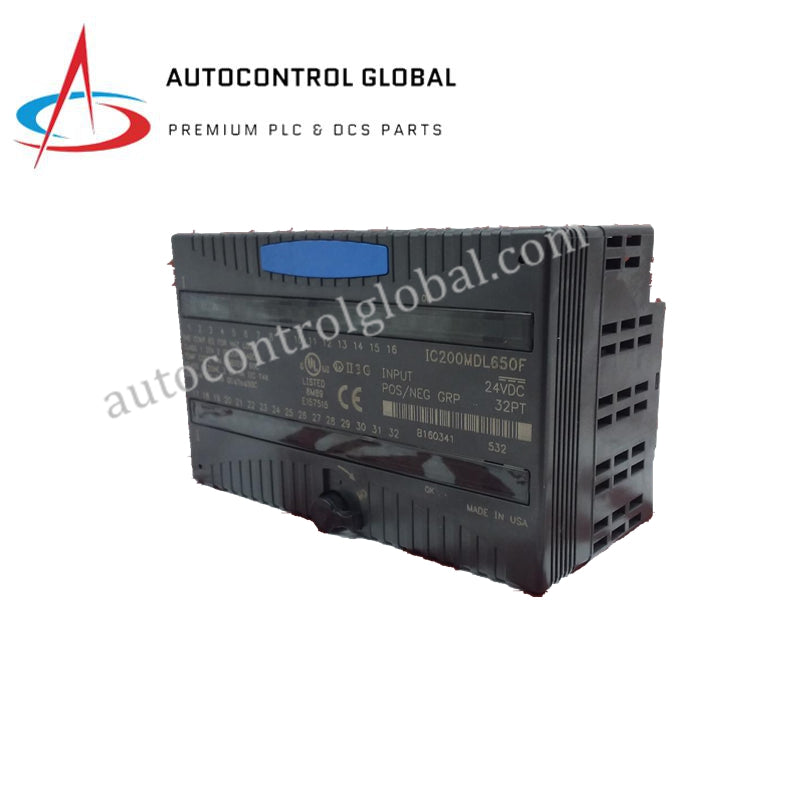

GE IC200MDL650M 24V DC 32-Point Discrete Input PLC Module

Product Description

High-Density Discrete Signal Acquisition

The GE Fanuc IC200MDL650M (Model IC6200MDL650) is a high-density discrete input module designed for the VersaMax I/O and PLC family. This module provides 32 individual 24VDC input points, organized into four isolated groups of eight points each. It acts as the critical interface between field-level binary devices—such as proximity sensors, pushbuttons, and limit switches—and the central processing logic. The IC200MDL650M is engineered for precision and space efficiency, allowing for significant I/O expansion within a compact DIN-rail footprint.

Advanced Filtering and Signal Integrity

To ensure reliable operation in electrically noisy industrial environments, the IC200MDL650M features configurable hardware filter times (0 ms, 1.0 ms, or 7.0 ms). These settings allow engineers to suppress contact bounce from mechanical switches while maintaining high-speed response for electronic sensors. The module utilizes group-to-group isolation (up to 1500 VAC for 1 minute) to protect the internal PLC backplane from external voltage transients. With a low current draw of only 50 mA from the 5V backplane, it minimizes the thermal load on the system power supply, enhancing the longevity of the entire control rack.

Detailed Technical Specifications

The following technical data defines the electrical, mechanical, and operational parameters for the IC200MDL650M.
