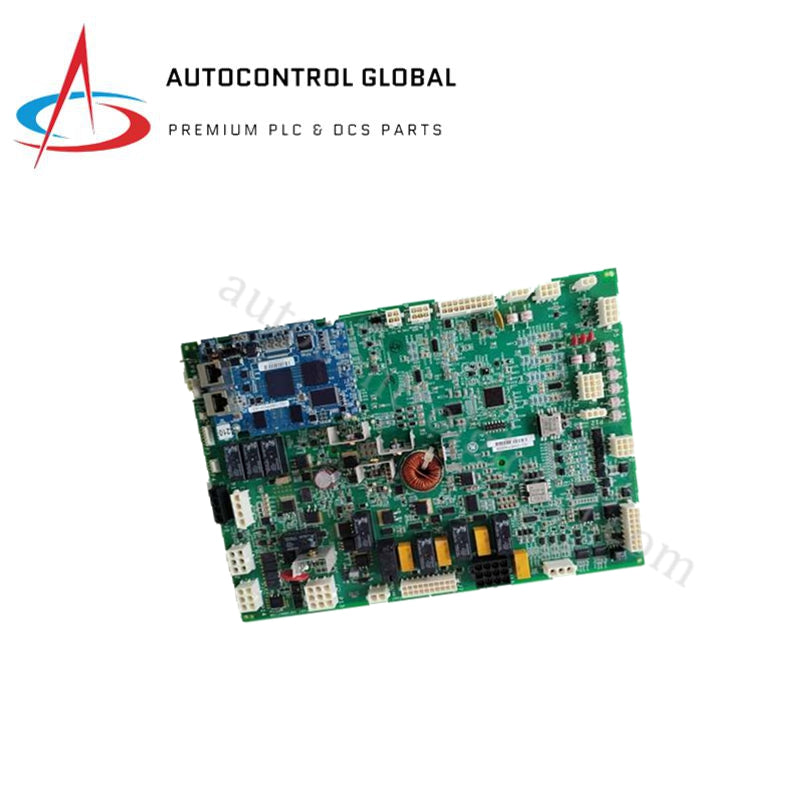

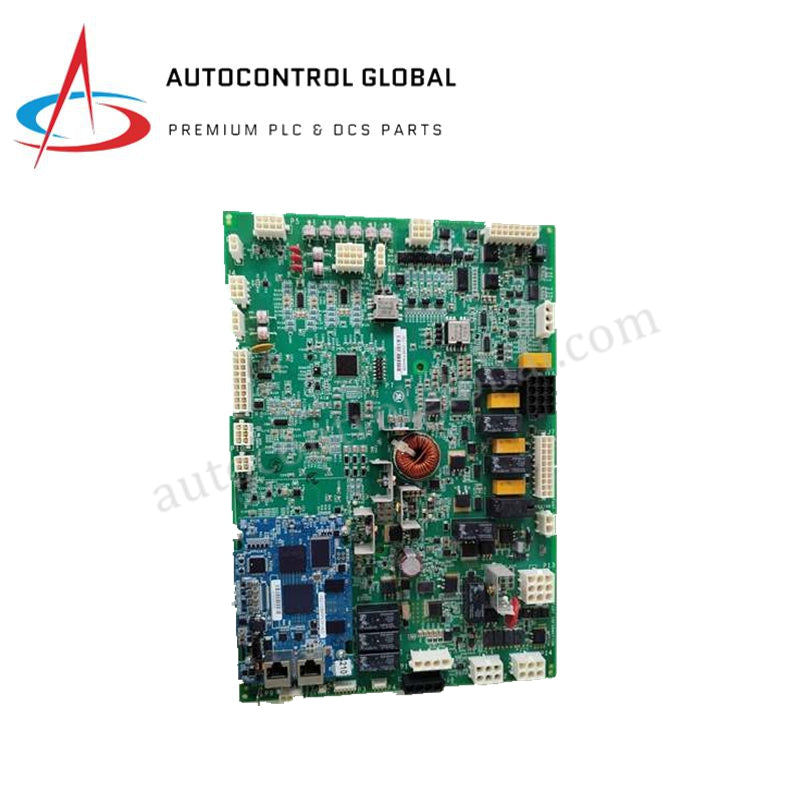

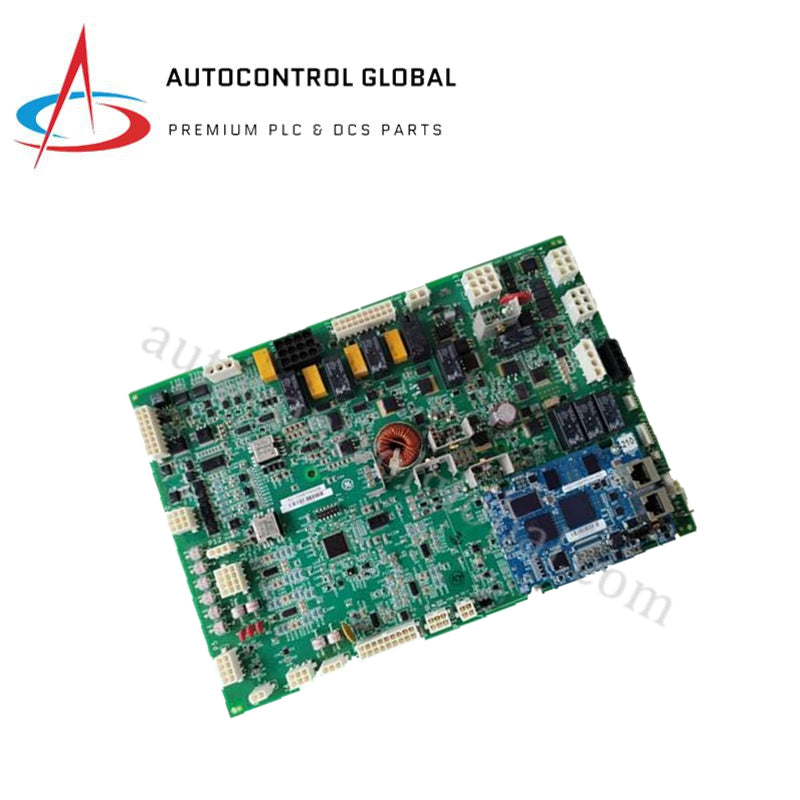

GE IS200DAMDG1A Mark VI Turbine Control Mixed I/O Board
Manufacturer: GE Fanuc
-
Part Number: IS200DAMDG1A
Condition：New with Original Package
Product Type: Digital/Analog Mixed I/O Boards
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE IS200DAMDG1A Drive Control Series Board
The GE IS200DAMDG1A, also cataloged as the IS200DAMDG1A Digital/Analog Mixed I/O Board, operates as a dedicated hardware component for mixed-signal monitoring and control within GE Mark VI Turbine Control System platforms. The board combines signal conditioning, filtering, and isolation interfaces onto a single assembly to process concurrent analog and digital variables. It executes direct physical and electrical interface conversion, interfacing field-level sensor metrics and discrete contact inputs directly with the primary system control racks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200DAMDG1A |
| Brand | General Electric |
| Origin | United States |
| Product Type | Digital/Analog Mixed I/O Boards |
| System Compatibility | GE Mark VI Turbine Control System |
| Analog Inputs | 8 channels (±10 VDC, 4-20 mA) |
| Analog Outputs | 4 channels (0-10 VDC, 4-20 mA) |
| Digital Inputs | 16 channels (24 VDC, dry contact) |
| Digital Outputs | 8 channels (relay or solid-state, 24 VDC) |
| Analog Accuracy | ±0.1% of span |
| Addressing Range | 16-bit and 32-bit |
| Common Mode Voltage Range | ±5 V |
| Isolation | 1500 VAC channel-to-system for 1 minute |
| Power Consumption | 5 VDC, ~1.5 A |
| Operating Temp | -25 to +65 deg C |
| Dimensions | 233 mm x 100 mm x 25 mm |
| Weight | 0.45 kg |
Industrial Control & Drive System Properties
The GE IS200DAMDG1A is engineered to maintain backplane bus communication velocity across the internal rack architecture. The high-density I/O footprint integrates onboard low-pass filtering modules on all analog streams to attenuate high-frequency noise spikes prior to processing. Local hardware registers allow firmware flash compatibility checks during system power-up routines, verifying that communication timings over the 16-bit and 32-bit addressing boundaries match the current controller operating parameters to prevent packet collisions on the communication bus.
Frequently Asked Questions
Q: How does the IS200DAMDG1A handle isolation between the field signals and the processing backplane?
A: The board incorporates galvanic isolation barriers rated up to 1500 VAC for 1 minute. This physical barrier separates both the analog and digital field-side channels from the system logic circuits, preventing external ground loops and electrical surges from damaging the controller.
Q: What onboard hardware diagnostics are available for live troubleshooting?
A: The terminal assembly features integrated diagnostic LED indicators indicating RUN and FAIL statuses alongside discrete channel status states, allowing engineering teams to monitor real-time module health and communication integrity.
Field Installation Guidelines
- Enclosure Orientation and Airflow Management: Slide the module into its assigned slot within the rack carrier assembly. Tighten all faceplate retention hardware to mitigate vibration-induced mechanical wear and maintain 50 mm of unobstructed boundary area above and below the card cage to facilitate continuous convection cooling.
- Shield Grounding and Impedance Control: Terminate all analog signal cable shields at the dedicated instrument earth bar within the local terminal cabinet. Maintain separate, low-impedance grounding paths to prevent electrical noise from cross-coupling into the 16-bit analog-to-digital processing paths.
- Signal Cable Separation Layouts: Route all low-voltage analog inputs and digital dry contact wiring inside dedicated wire trays distinct from high-power distribution lines. Maintain a physical spacing threshold of at least 300 mm from large three-phase cables and switching inductors to limit electromagnetic induction.
