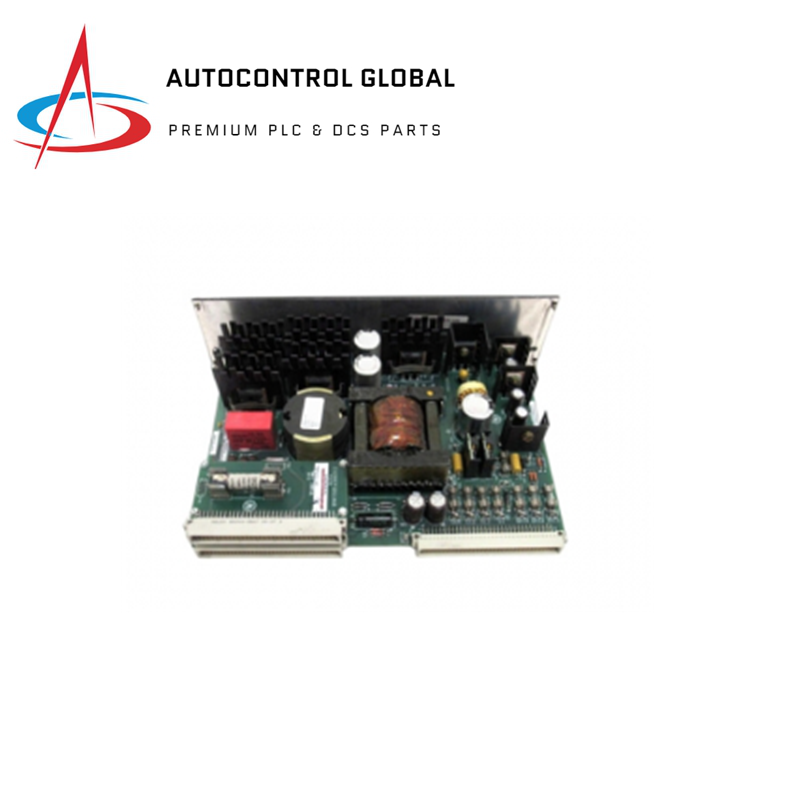

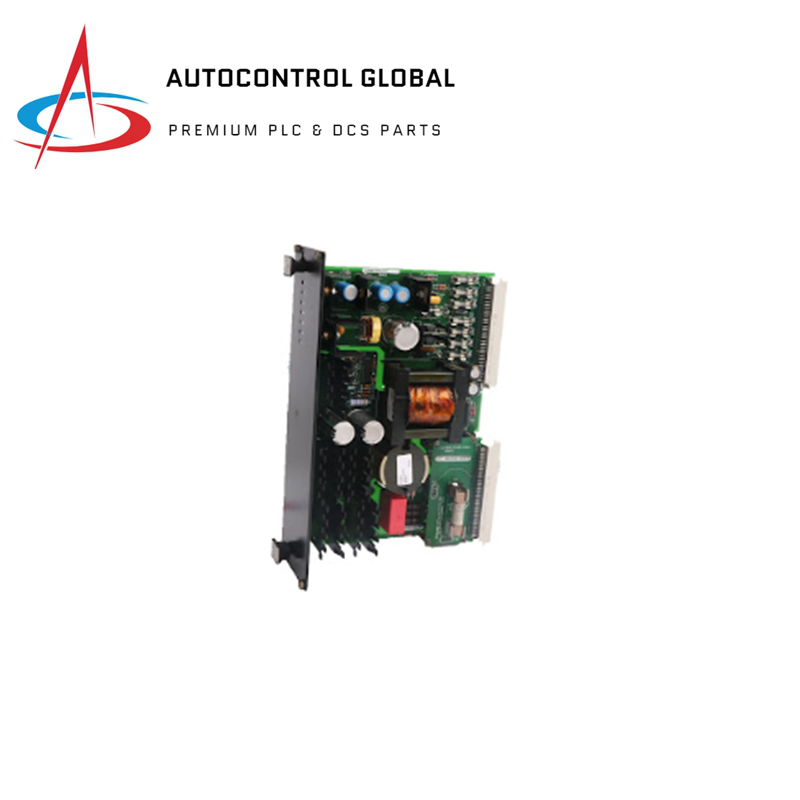

GE IS200EPSMG2A Power Supply Module

Technical Specifications

• Alphanumeric Catalog Number: IS200EPSMG2A
• Board Description: Exciter Power Supply Module
• Board Type: Power Supply Board
• Contact Wetting Supply: 70 VDC
• VDC Power Supply: 5, 15, and 24
• Weight: Less than 2 pounds

 key details

• Function: This power supply module provides power to various external modules in the control system. When paired with the EPDM module, it supplies a voltage of 125 VDC. For external modules such as the EDCF, EDEX, and EGDM, it provides 24 VDC power.
• Mounting and Compatibility: The power supplies for the M1, M2, and C controllers are mounted underneath the control rack within the control cabinet. The IS200EPSMG2A is specifically designed as a 2A model, which is not backward compatible with earlier versions.
• Contact Wetting Supply: The module supplies an isolated 70 VDC for contact wetting purposes.
• Power Supply: The IS200EPSMG2A features three independent power supplies to manage the power needs for the C, M1, and M2 controllers. The power provided by the EPDM module is converted for optimal use with the IS200EPSMG2A.
